Delivery Date:
10/10/2023
Department Name:

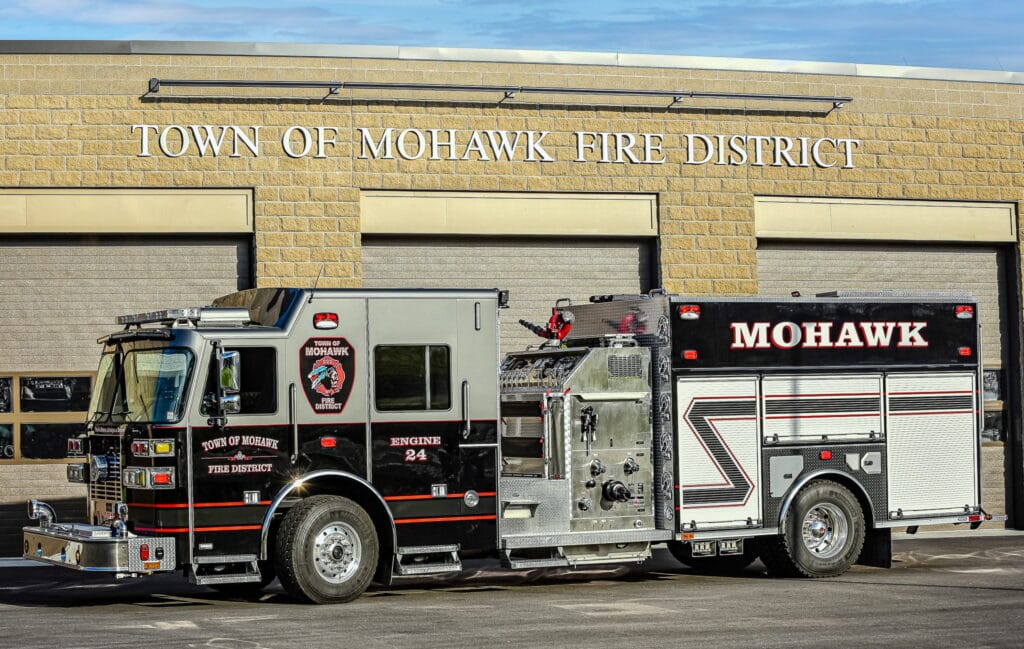

Town of Mohawk Fire District
Department City / State:
Fonda, NY

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEELBASE: 226”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 35′ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 15” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 31,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivels
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale Smartfoam 2.1A

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Over 280 cu. ft. Total Compartment Space
  • Body: S9 – Alum 43/53 Ladders through Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Single Camera
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Harrison 8KW
  • Light Tower: Command Light KL415A-W2
  • FireTech 3PC Brow Light
  • Whelen 72” Freedom Lightbar
  • Whelen PFH2 Tele Lights
