Delivery Date:
02/15/2023
Department Name:
Thomasville Fire Rescue
Department City / State:
Thomasville, GA
Truck Type:
Sutphen Corporation – HS #7165
Dealer – Williams Fire Apparatus
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32′ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Single Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 270 AMP
- Transmission: Allison Gen 5, EVS3000

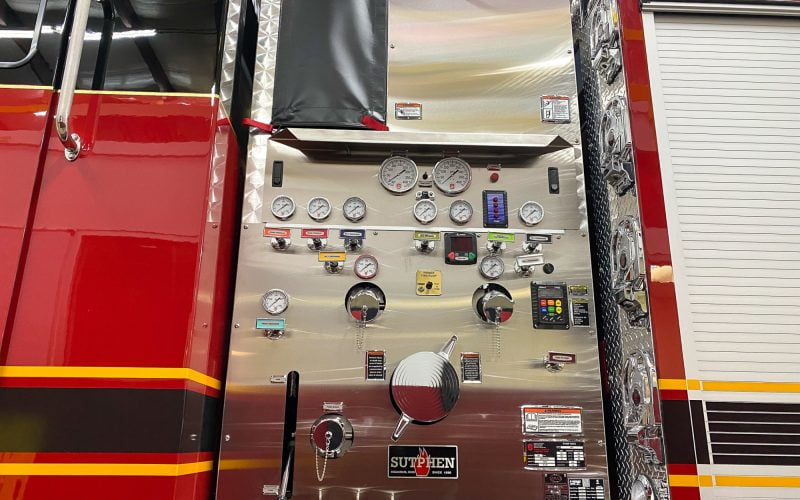

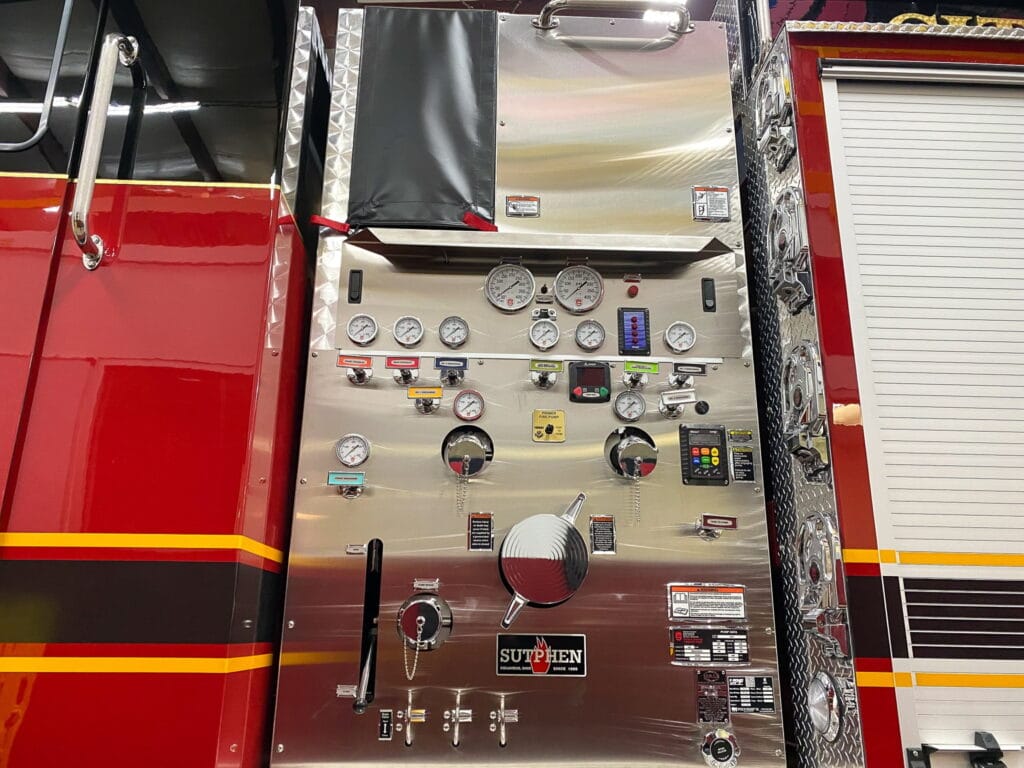

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Over 220 cu. ft. Total Compartment Space
- Duo Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: G2 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Whelen PFH2 LED Brow Light
- Whelen Freedom LED Lightbar
- Whelen L31 Red LED Beacons
