Delivery Date:
04/13/2019
Department Name:
The City of Columbus Division of Fire
Department City / State:
Columbus , OH
Truck Type:
Sutphen Corporation – HS #6290
Dealer – Heritage Fire Equipment
WHEEL BASE: 187”
TRAVEL HEIGHT: 9’ – 8 “
TRAVEL LENGTH: 31’ – 6”
CHASSIS: Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins ISX 12, 425 HP
- Alternator: Niehoff, 430 AMP
- Transmission: Allison Gen 5, EVS4000

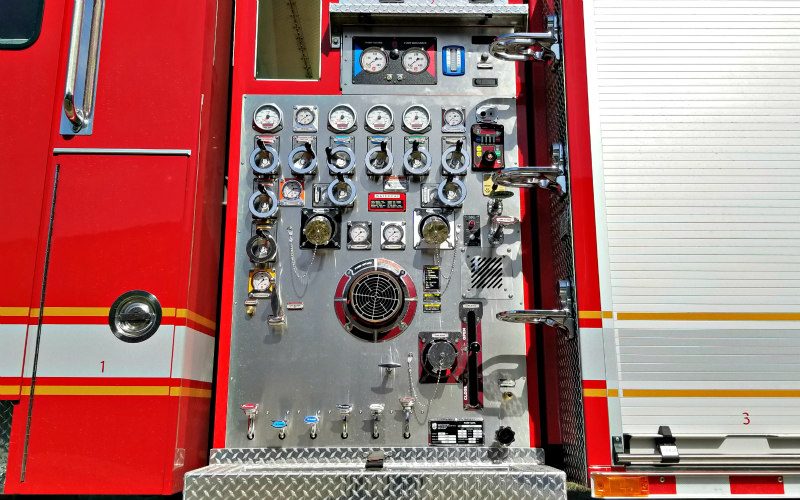

PUMP: Waterous
- CSU-1500 GPM Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2” Front/Left of Main Hosebed, (1) 3” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½” with 2 ½” Swivel
- 750-Gallon Water Tank
- Monitor: Elkhart Vulcan 8500 Deck Gun
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- Amdor Roll-Up Doors
- Over 186” cu. ft. Total Compartment Space
- Duo-Safety 900A (24’ 2-Section & 775A 14’ Roof & 10’ Folding)
ADDITIONAL EQUIPMENT:
- Voyager, 2 Camera System
- Federal Q2B Siren, Mounted on Driver’s Side Bumper Face
- 18” Bumper Extension
- Whelen TIR6, LED TAM65 36” Traffic Advisor
- Whelen Freedom 24” LED Lightbars
- FRC Spectra 12V LED Brow 20LK Lum
- FRC Spectra 12V LED Scene 20K LUM
