Delivery Date:
10/12/2018
Department Name:
Watervliet Fire Department
Department City / State:
Watervliet, MI
Truck Type:
Sutphen Corporation – HS #6126
Dealer – Apollo Fire Equipment
WHEEL BASE: 240”
TRAVEL HEIGHT: 10’ – 9”
TRAVEL LENGTH: 38’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000

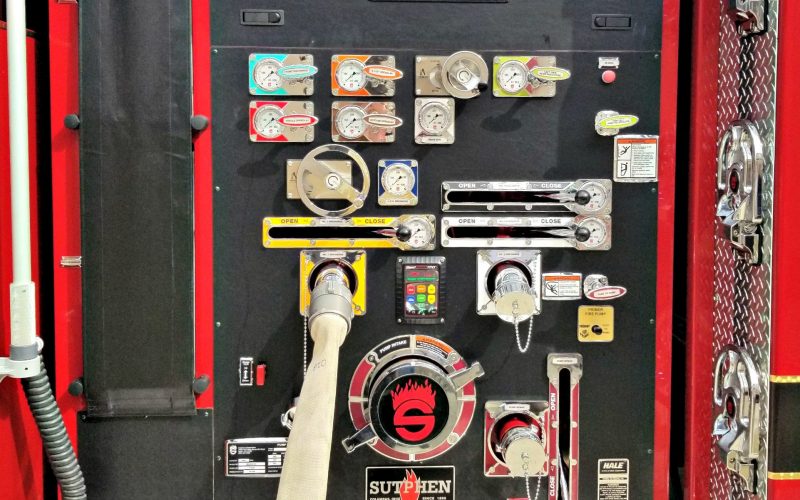

PUMP: Hale
- QMAX-2000 GPM Single Stage
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Monitor: Akron 3423 Apollo
- Crosslays: (2) 1 ½” Speedlays with Lift Out Tray and (1) 2 ½” Crosslay
- 3,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum Body
- Amdor Roll-Up Compartment Doors
- 153 cu. ft. Total Compartment Space
- Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, 2” Raised Lid, and Full-Width, Deep-Center Storage Well
- Camera System: Intec, Single Camera
- Federal Q2B Siren
- Ladder mounting in Ladder Chute
- Whelen Freedom IV 72” LED Light Bar
- Whelen Traffic Advisor
- Whelen 900 LED Scene Lights
