Delivery Date:
10/12/2018
Department Name:
Oxford Fire Department
Department City / State:
Oxford, OH
Truck Type:
Sutphen Corporation – HS #6121
Dealer – Heritage Fire Equipment
WHEEL BASE: 219”
TRAVEL HEIGHT: 9’ – 9”
TRAVEL LENGTH: 35’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 44,000 lbs
- Engine: Cummins ISX 12, 450 HP
- Alternator: Niehoff, 430 AMP
- Transmission: Allison Gen 5, EVS 4000

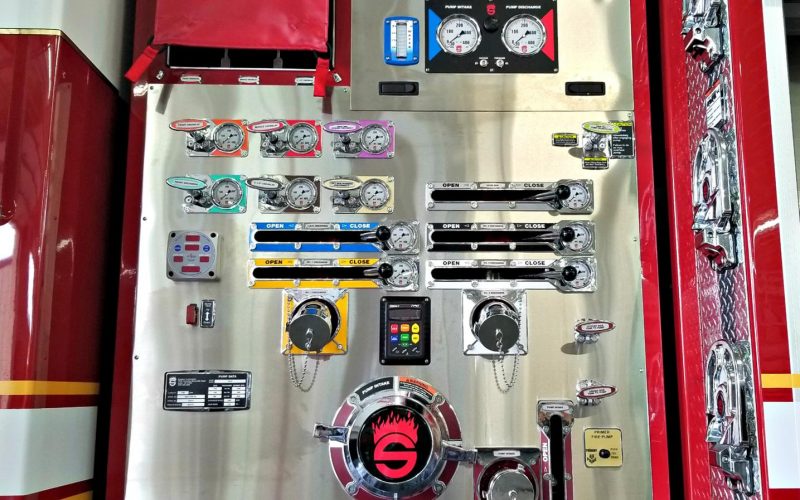

PUMP: Hale
- QMAX-1750 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½”, 2 ½” Swivel and (2) 2” Crosslays with 1 ½” Swivel
- 2,000-Gallon Water Tank

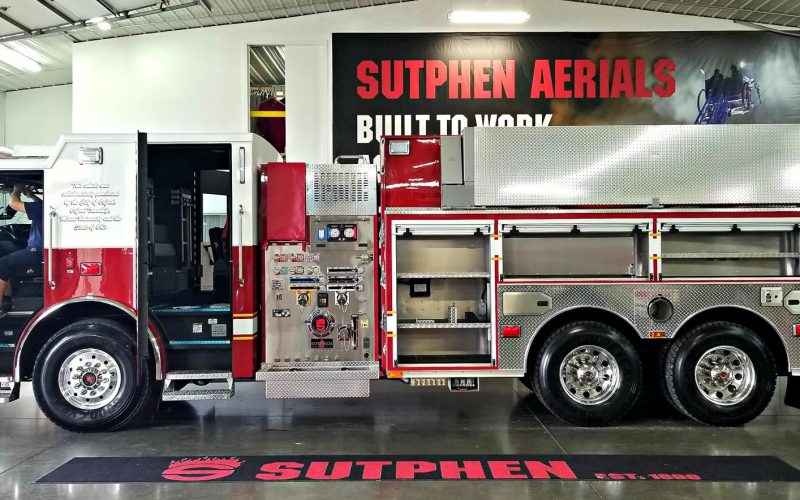

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 155 cu. ft. Total Compartment Space
- Alco-Lite PEL-24 (24’ 2-Section and PR L-14, 14’ Roof and 10’ Folding)
OPTIONAL EQUIPMENT:
- 18” Bumper Extension, 2” Raised Lid, and Full-Width, Deep-Center Trough
- Intec Single Camera, Camera System
- Ziamatic Quic-Lift Electric Ladder Rack
- Spiked Chrome Lug Nut Caps
- Hannay Electric Cord Reel, 200’ (1)
- Smart Power 6KW Generator
- Federal Q2B Siren
- FR Spectra, LED, Brow 15K Lumens, 12V
