Delivery Date:
07/19/2017
Department Name:
Sylvania TWP Fire Department
Department City / State:
Sylvania, OH
Truck Type:

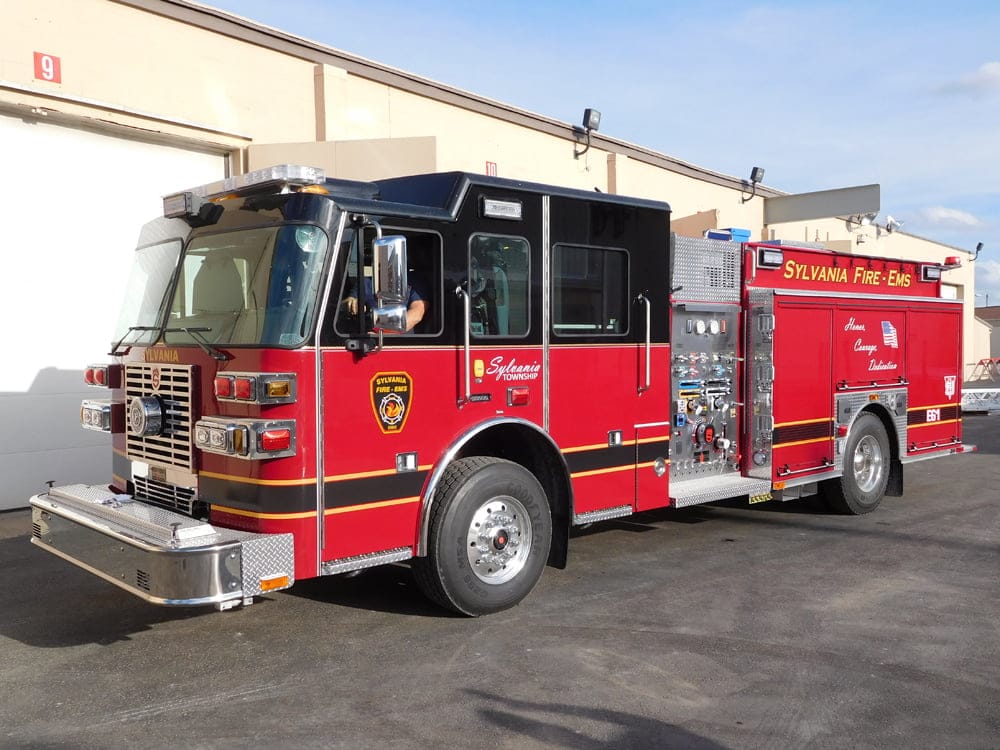

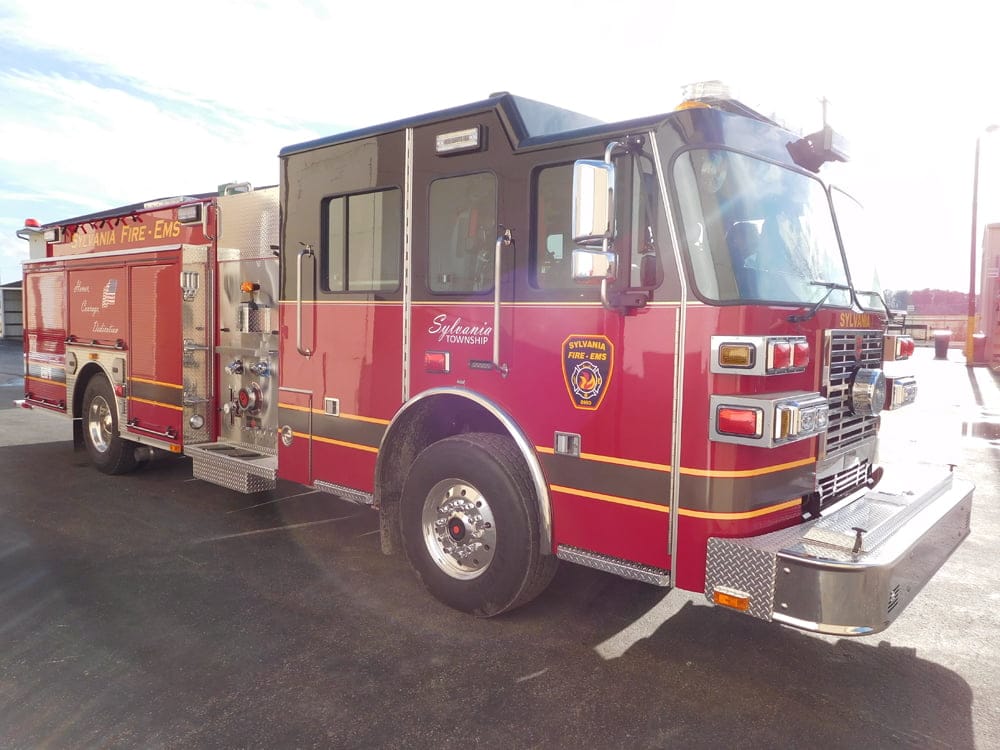

Custom Pumper (HS-5805)
WHEEL BASE: 206”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 33’-4”

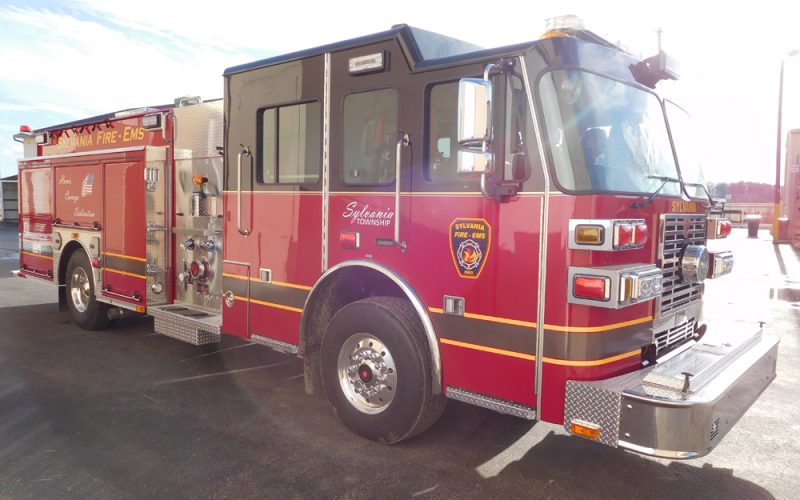

CHASSIS: Sutphen 73” with half 10” raised roof
- Four-door, four-person cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Neihoff 360 AMP
- Transmission: Allison Gen 5, EVS3000

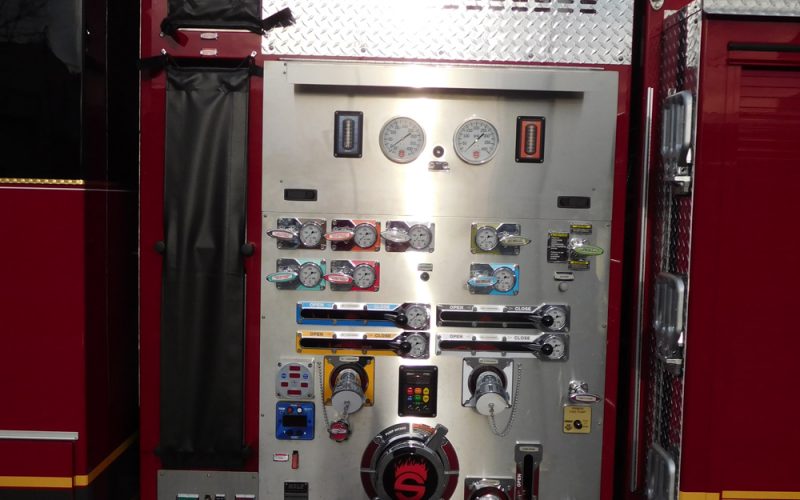

Pump: Hale
- QMAX- 1500 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1½” Front, (1) 3” Deck Gun
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam Pro 2002 Foam System

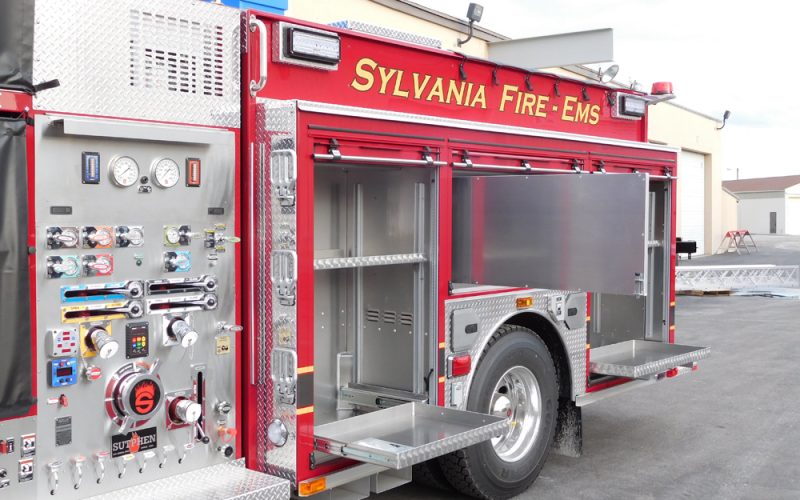

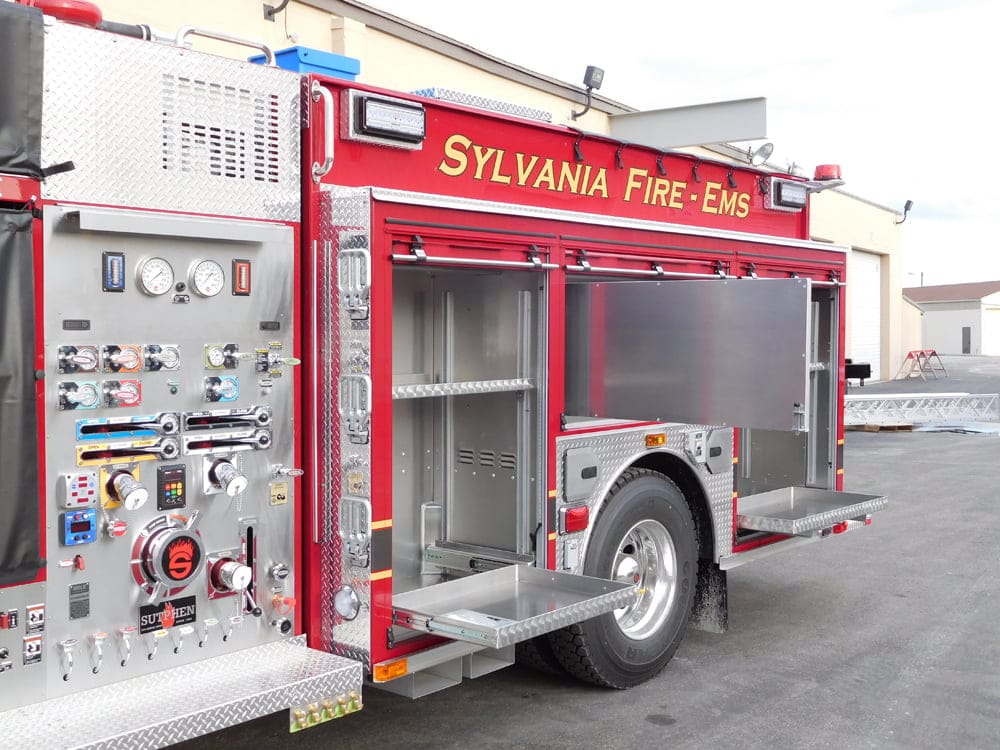

BODY: Sutphen
- Aluminum
- Amdor Roll-up doors

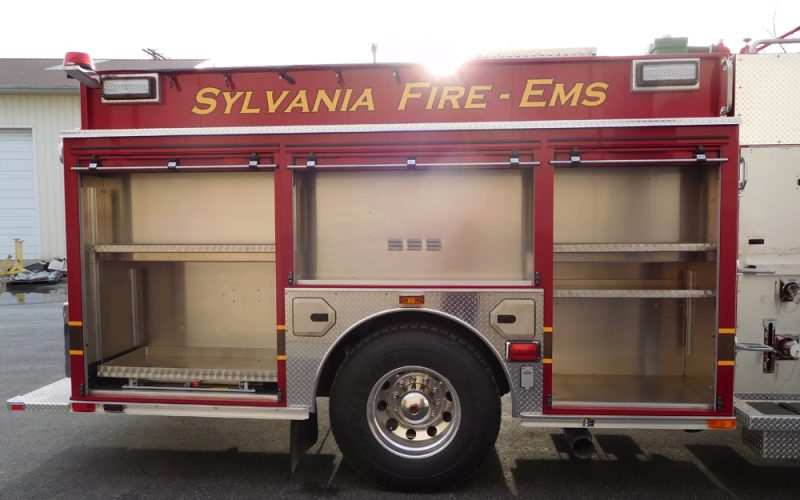

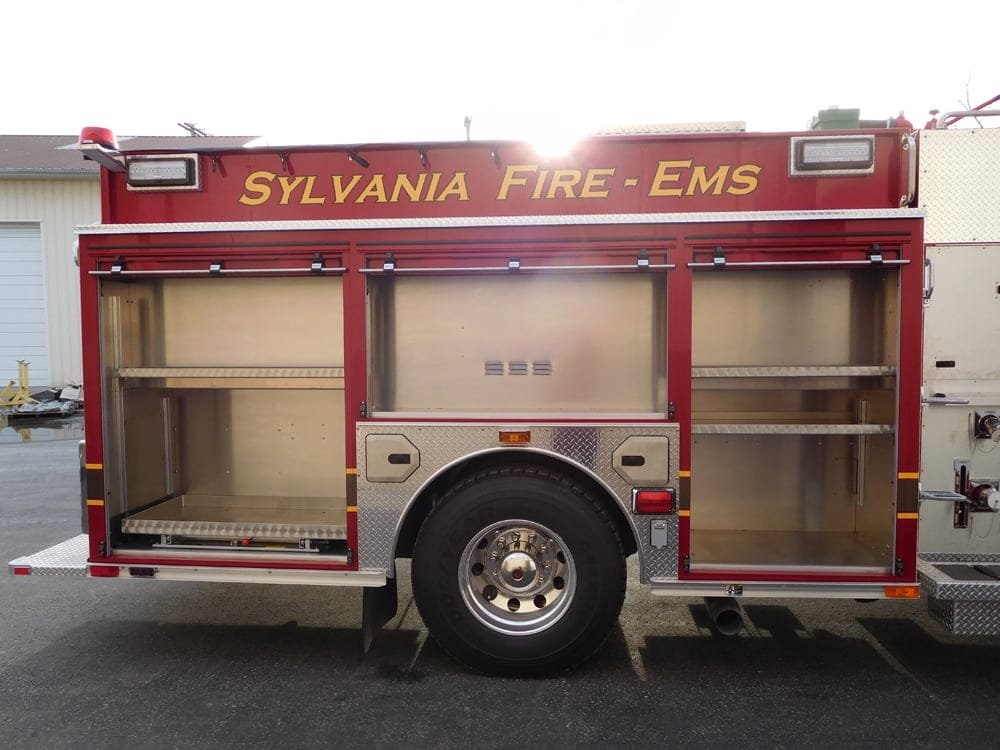

- 222 cu. ft. Total Compartment Storage
- Alco-Lite ladder compliment
OPTIONAL EQUIPMENT:

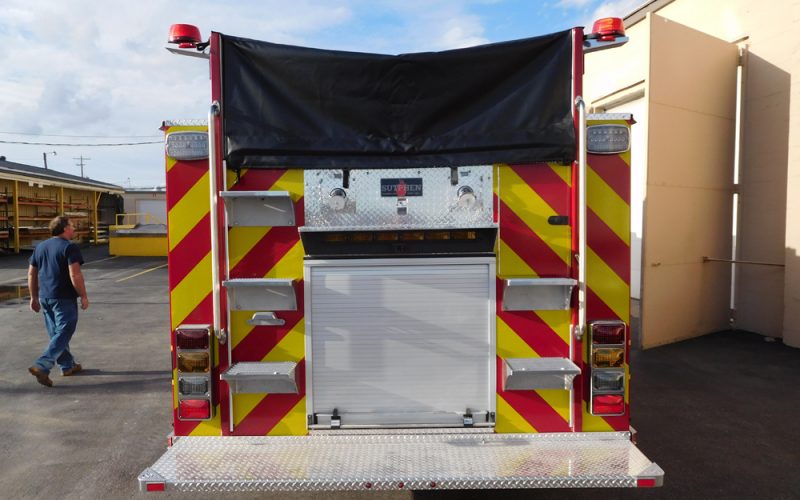

- VMUX Rear Camera System

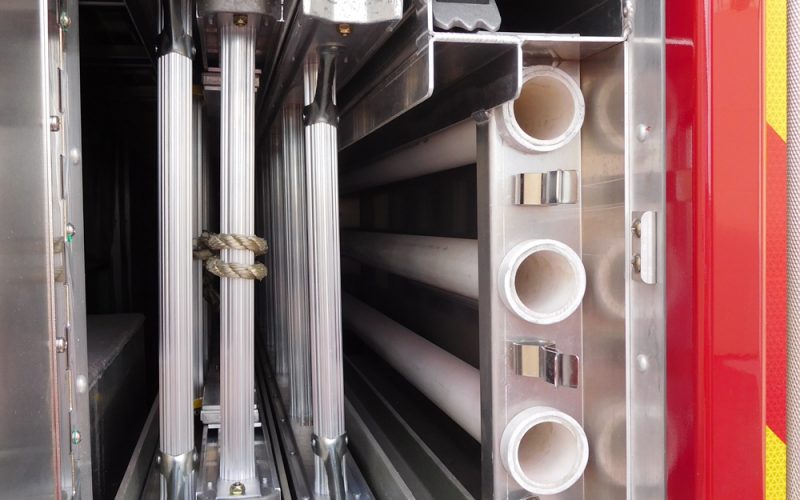

- Ladder Chute
- Hannay Electric Cord Reel with 150’
- Federal Q2B
- Traffic Advisor, Whelen
- Warning Lights, Whelen
- 8KW Smart Power Generator
- 18” Bumper
