Delivery Date:
02/24/2023
Department Name:
Sycamore Fire Rescue
Department City / State:
Sycamore, OH

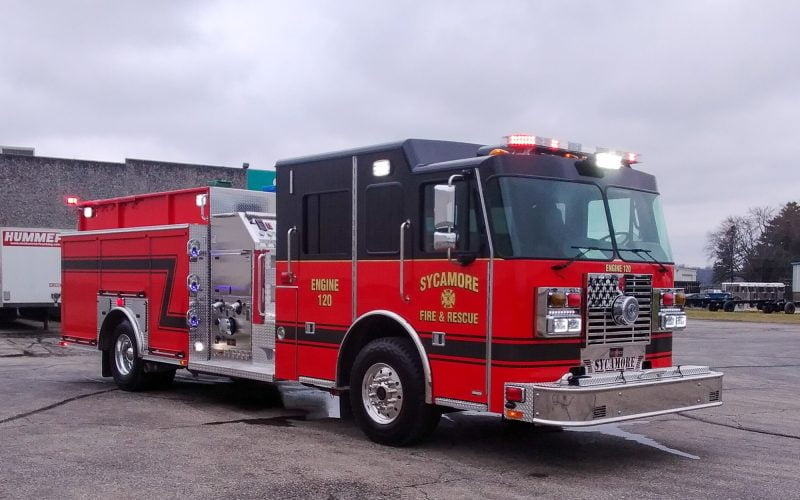

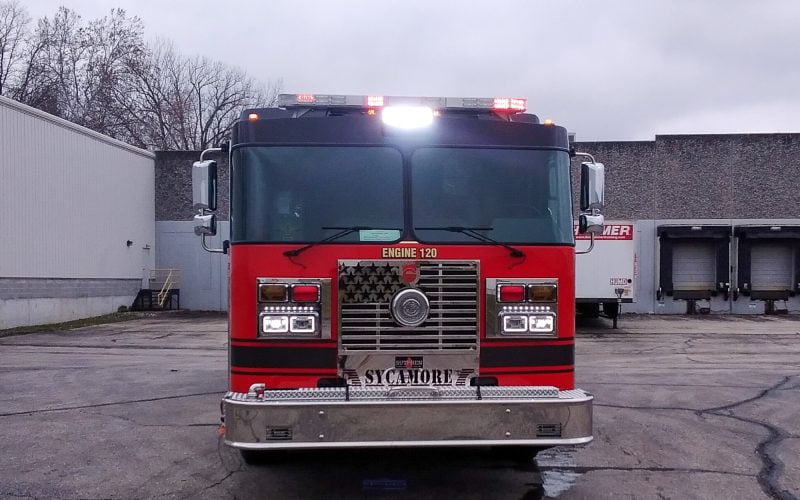

Truck Type:
Sutphen Corporation – HS #7180
Dealer – Herb Fire
WHEELBASE: 226”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 34′ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Single Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 400HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QFLO-1250 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Over 245 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladders through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- FRC Spectra Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9 Scene Lights
- Whelen L31 Red LED Beacons
