Delivery Date:
10/12/2018
Department Name:
Sun City Fire Department
Department City / State:
Sun City, AZ
Truck Type:

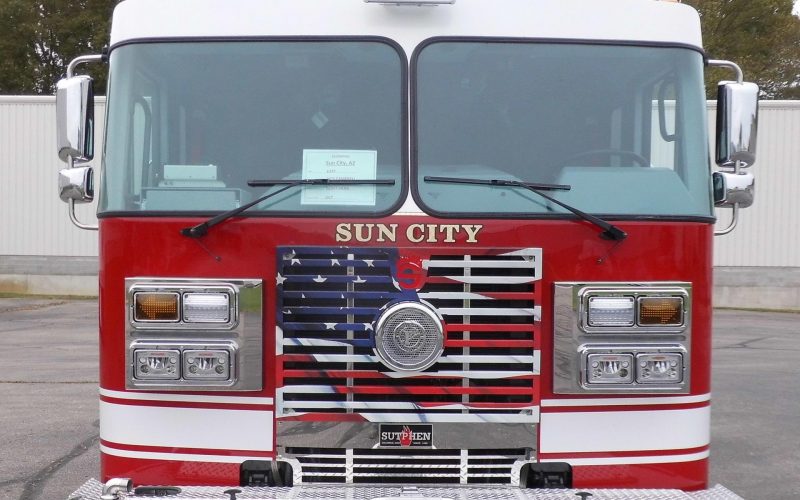

Sutphen Corporation – HS #6247, 6248, 6295
Dealer – Scott Herb
WHEEL BASE: 196”
TRAVEL HEIGHT: 10’ – 6”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun, (1) 1 ½” Front Bumper
- 500-Gallon Water Tank
- 30-Gallon Foam Tank
- Hale Smartfoam 5.0
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladders (PEL-24, 24’ 2-Section & PRL-14, 14’ Roof & 10’ Folding)
- Ladder Chute
OPTIONAL EQUIPMENT:
- 18” Bumper Extension
- Safety Vision SV-CLCD0-70, Camera System
- David Clark Communication System
- Federal Q2B Siren
- Special Item – Mini Fridge
- Whelen LED Traffic Advisor
- Whelen 900 LED Scene Lights
- FR Spectra, LED, Brow 20K Lumens, 12V
