Delivery Date:
08/25/2022
Department Name:
Summit-Ironville Fire Department
Department City / State:
Ashland, KY
Truck Type:
Sutphen Corporation – HS #6985
Dealer – Heritage Fire Equipment
WHEELBASE: 197 ½”
TRAVEL HEIGHT: 9’ – 9”
TRAVEL LENGTH: 33’ – 7 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Single Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS4000

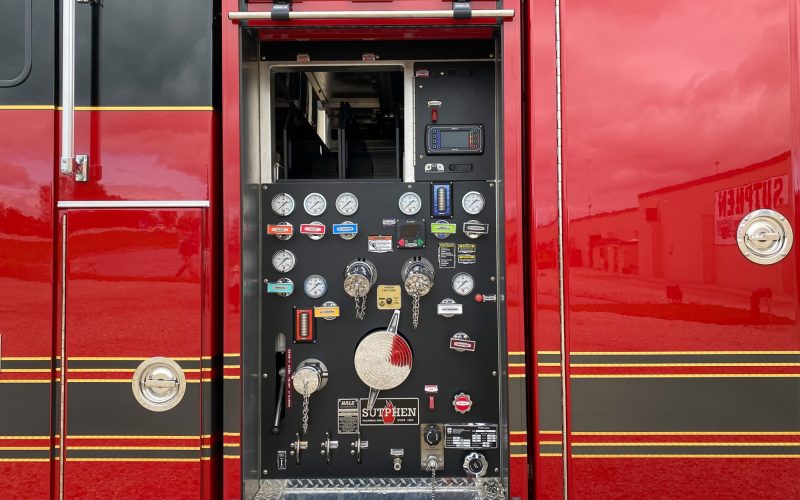

PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper
- Speedlay: (2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Elkhart w/ Flush
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Over 400 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ & 10’ Folding
- Body: S8 – Aluminum 56/53 Ladder Through Tank & Double Hatch
ADDITIONAL EQUIPMENT:
- 30” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Inverter: Kussmaul Auot Power 1500W
- Hannay Electric Cord Reel, 150’ (1)
- Triple SCBA Bottle Storage
- Command Light – SL442D-FS
- LED Roto-Ray Warning Light
- Whelen Freedom IV (16) LED Lightbar
- FireTech 72” 12V LED Brow Light
- FireTech Guardian 12V LED Scene
