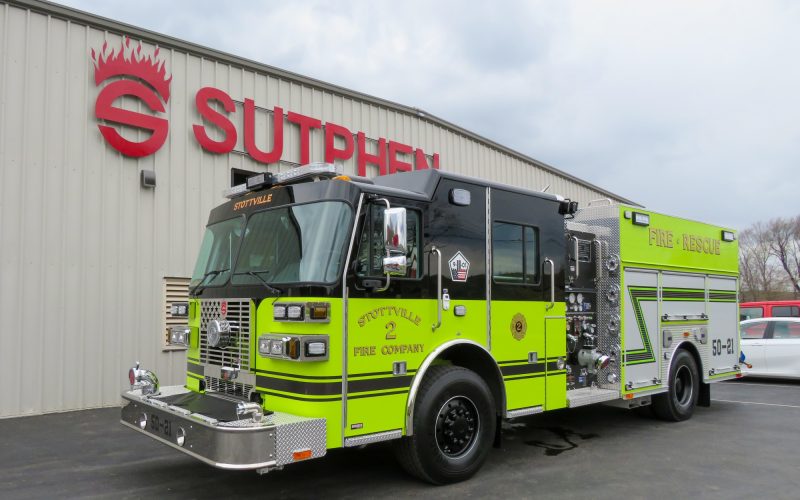

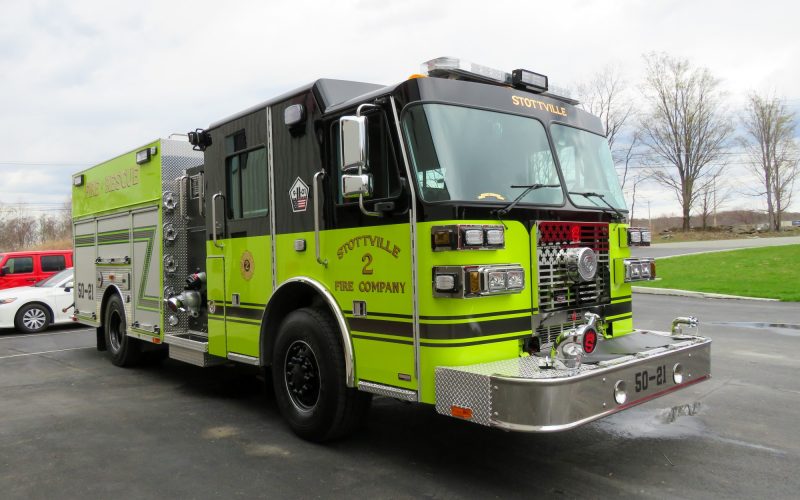

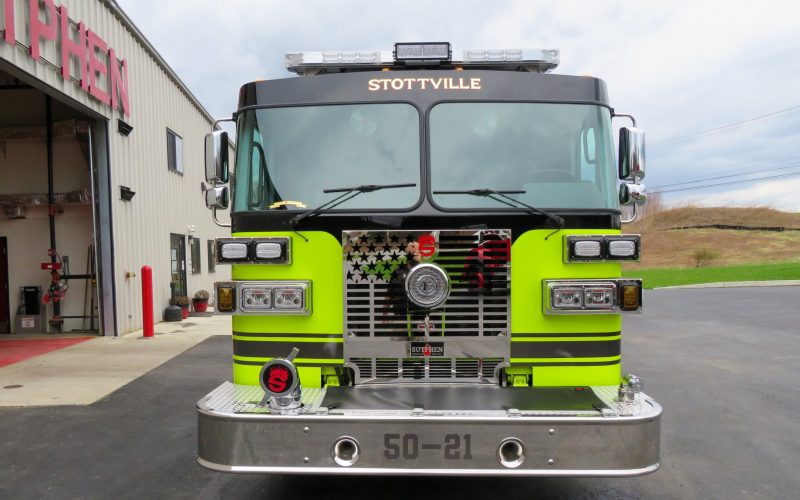

Custom Pumper – Stottville Fire Company, NY

Sutphen Corporation – HS #6805

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof

• Four-Door, Eight-Person Cab
• 10” Double Rails, Single Axle (110K PSI)
• Front Suspension 23,000 lbs.
• Rear Suspension 31,000lbs.
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville 420 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• QMAX-2,000 GPM Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
• Crosslay: (2) 2” w/ 1 ½” Swivel
• 1000-Gallon Water Tank

BODY:                  Sutphen

• 3/16 Extruded Aluminum
• Amdor Roll-Up Compartment Doors Satin Finish
• Over 280 cu. ft. Total Compartment Space
• Body: S-9 – Aluminum 43/853 Ladder through Tank

ADDITIONAL EQUIPMENT:

• 24” Polished stainless-steel bumper
• Federal Q2B Siren, Grille Mount
• Generator: 8KW Harrison
• Hannay Electric Cord Reel, 150’ (1)
• Whelen PFH2 Brow Light
• Whelen 72” Freedom Lightbar
• Whelen PFH2 Tele Lights
• Whelen PCP2 Scene Lights
• Whelen M9 Scene Lights
