Delivery Date:
10/29/2020
Department Name:

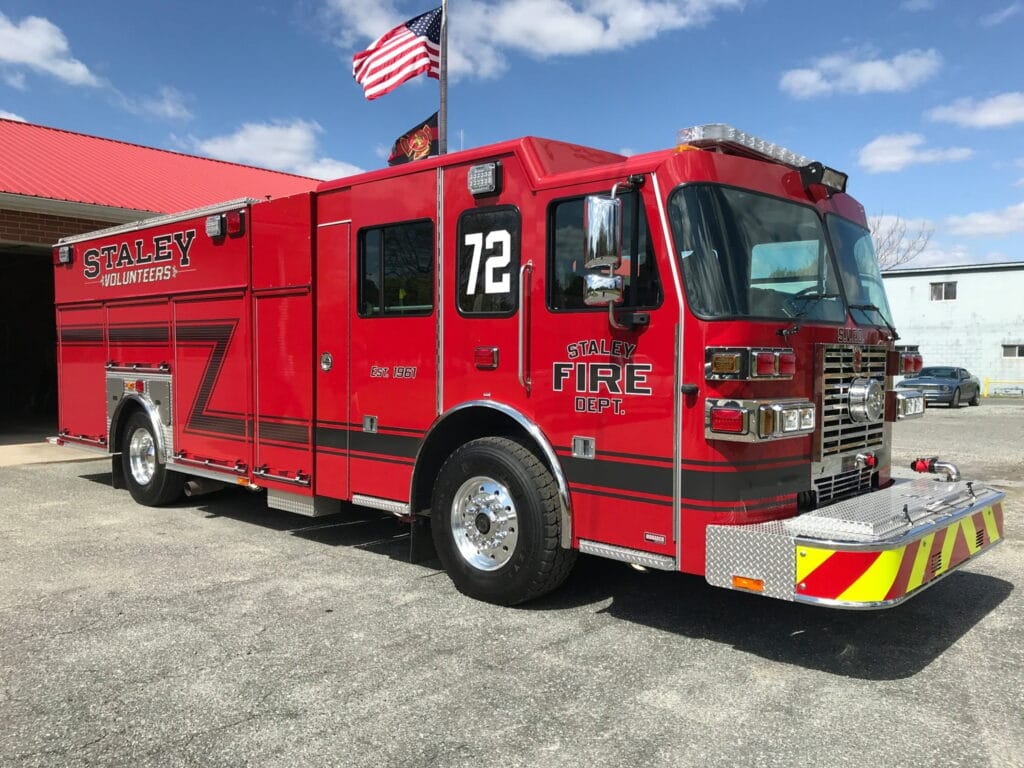

Staley Volunteer Fire Department
Department City / State:
Staley, NC
Truck Type:
Sutphen Corporation – HS #6616
Dealer – Stevens Fire Equipment
WHEELBASE: 197”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 33′ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- XS QMAX-2000 GPM, 6” Suction Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Left, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivel & Poly Lift-out Trays
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- Over 420 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (10’ Folding & 14’ Roof & 24’ 2-Section)
- Fully Enclosed Ladder Chute
- Body S8 – 56/53 Lad Thru Water Tank
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Brigade Camera System
- 2 Bottle Compartments
- Whelen Pioneer PFH2 LED Brow Light
- Whelen Freedom IV LED Lightbar
- Firetech Guardian LED Scene Lights
- Whelen 900 LED Red Lights
- Whelen 600 Super LED Warning Lights
