Delivery Date:
01/09/2019
Department Name:
South Trail Fire District
Department City / State:
Fort Myers, FL

Sutphen Corporation – HS #6226

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 217”

TRAVEL HEIGHT: 11’-2”

TRAVEL LENGTH: 34’-9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

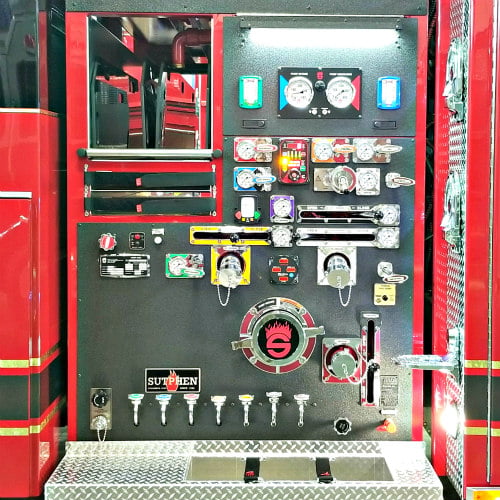

PUMP:                 Hale

  • QMAX-2000
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 1 ½” with Lift Out Tray
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

Body:                   Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 418 cu. ft. Total Compartment Space
  • Duo-Safety 900A (24’ 2-Section & 775A 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • Hannay Cord Reel, 150’ (1)
  • Command Light CL611A, 600KW Light Tower
  • 10KW Harrison Hydraulic Generator
  • FRC Spectra 12V LED Brow
  • Whelen Freedom IV LED Lightbar
  • Roto Ray Federal Q2B
  • Whelen M9V2RC Combo Warning/Scene Light
  • 24” Bumper Extension
