WHEEL BASE: 196”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 32’ – 9”
CHASSIS: Sutphen 73” cab with half 15” raised roof
- Four-Door, Six-Person
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

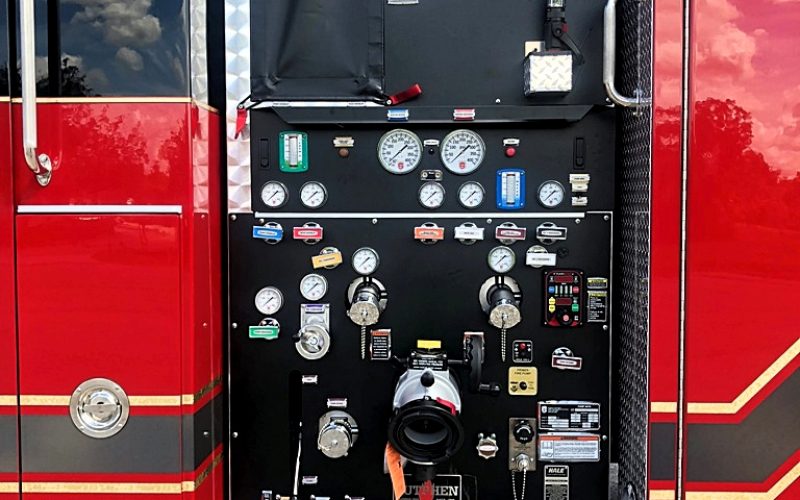

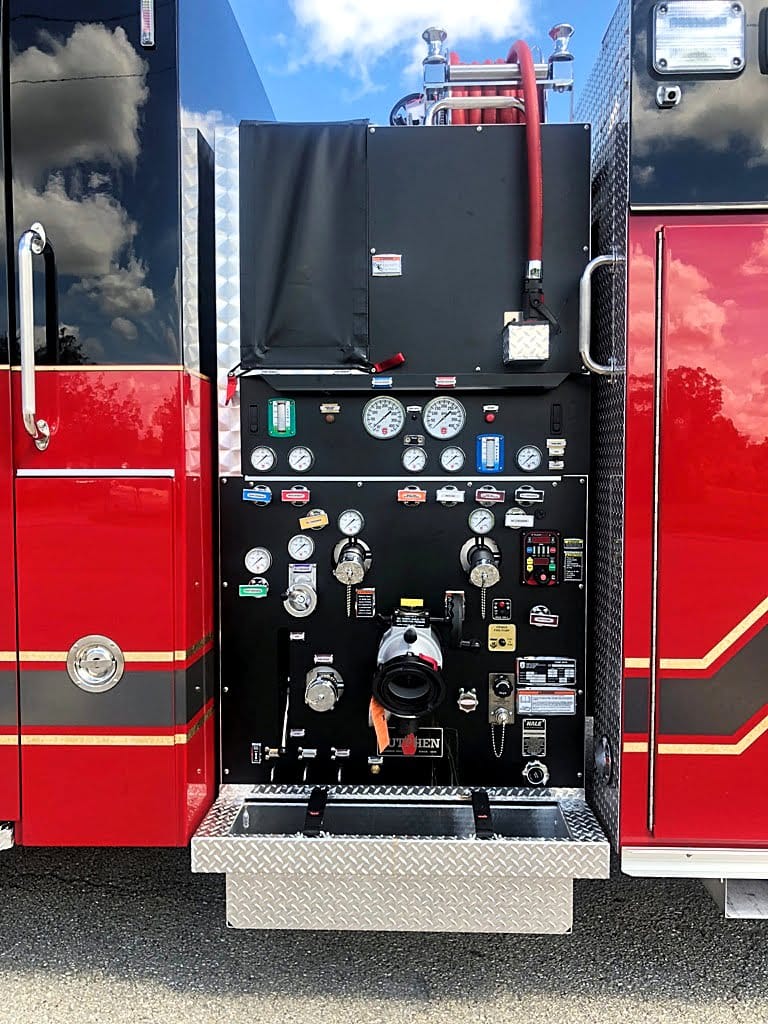

PUMP: Hale
- QMAX-2000 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- 30-Gallon Foam Tank
- Elkart Foam Supply System with Flush
- 750-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Hinged Compartment Doors
- Alco-Lite PEL-24
- Ladder Chute

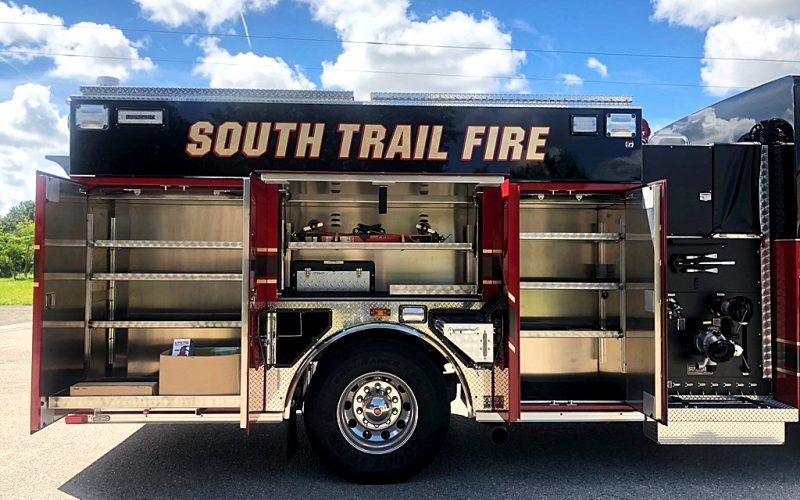

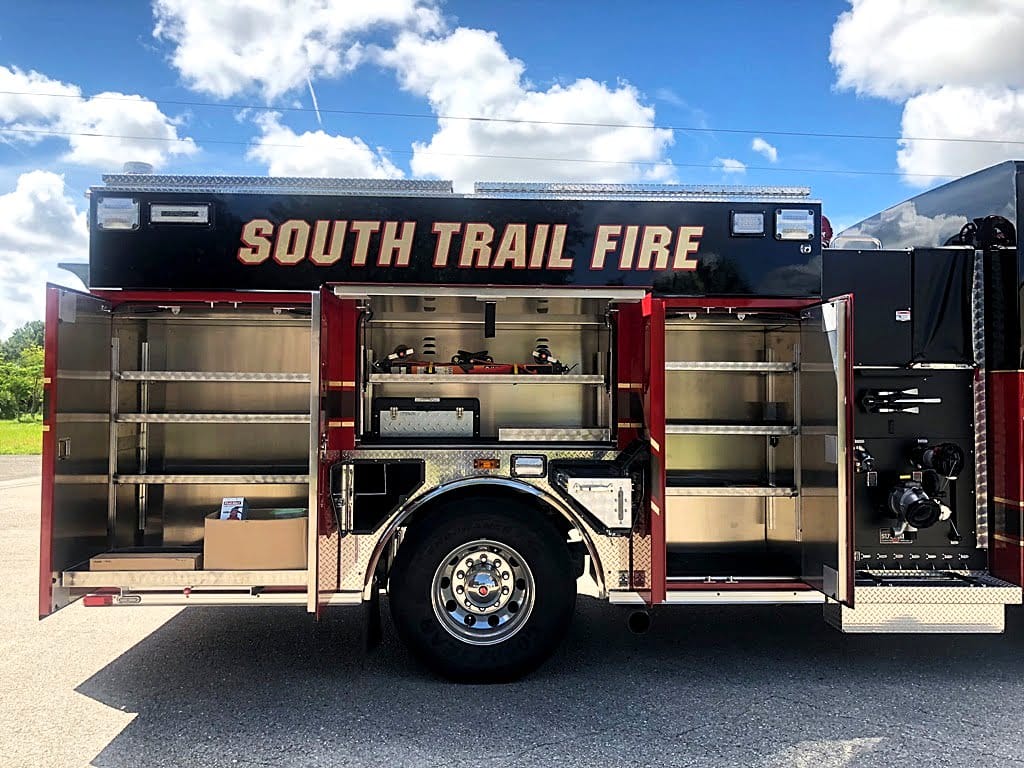

- 314 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Brigade 360 Camera System
- David Intercom
- Federal Q2B
- 24” Bumper
- Whelen M9V2 Combo Warning/Scene Light
