Delivery Date:
11/21/2022
Department Name:
South Amherst Fire Department
Department City / State:
South Amherst, OH
Truck Type:

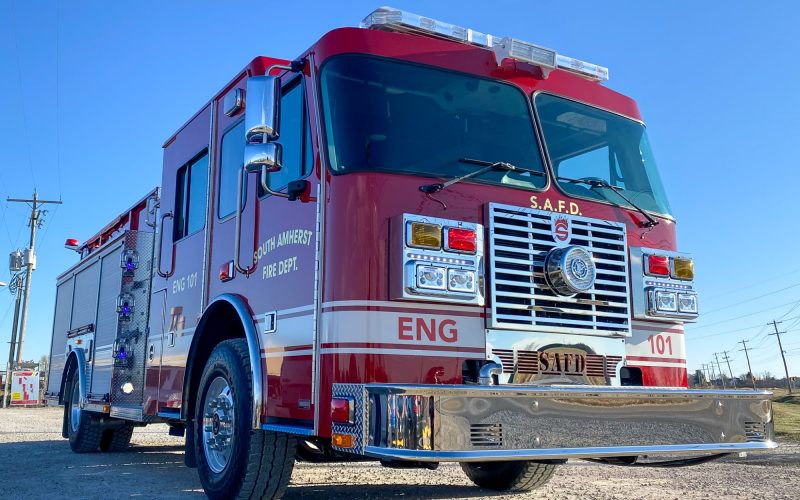

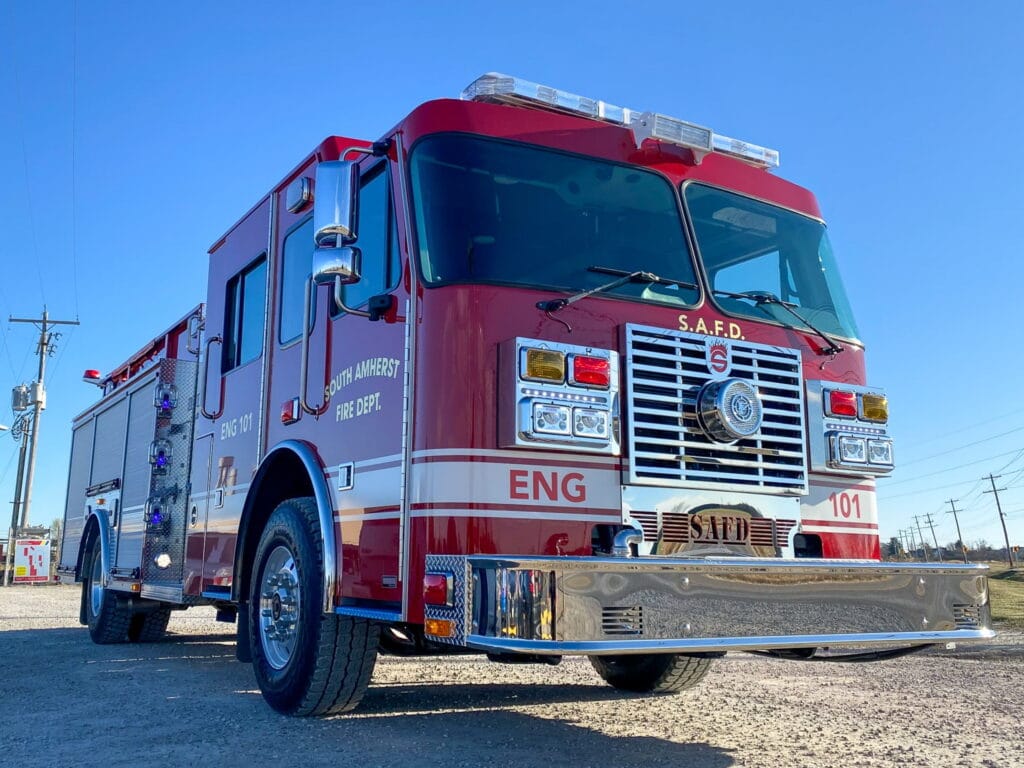

Sutphen Corporation – HS #7137
Dealer – Herb Fire
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 9”
TRAVEL LENGTH: 32′ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Delco-Remy 320 AMP
- Transmission: Allison Gen 5, EVS3000

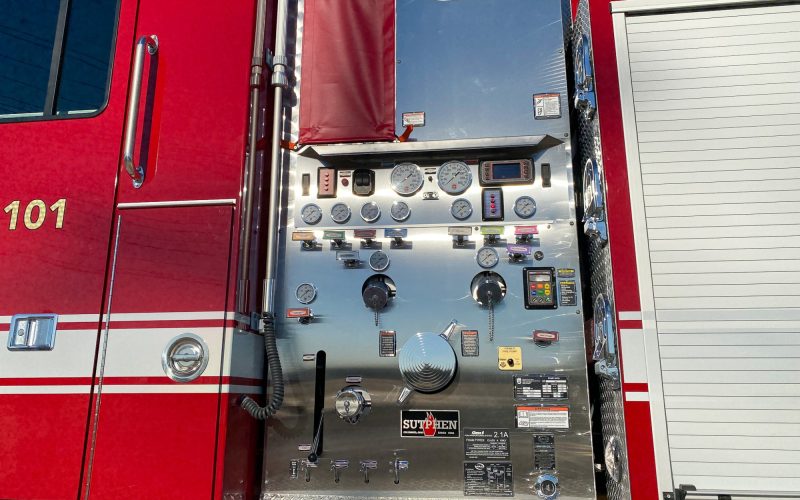

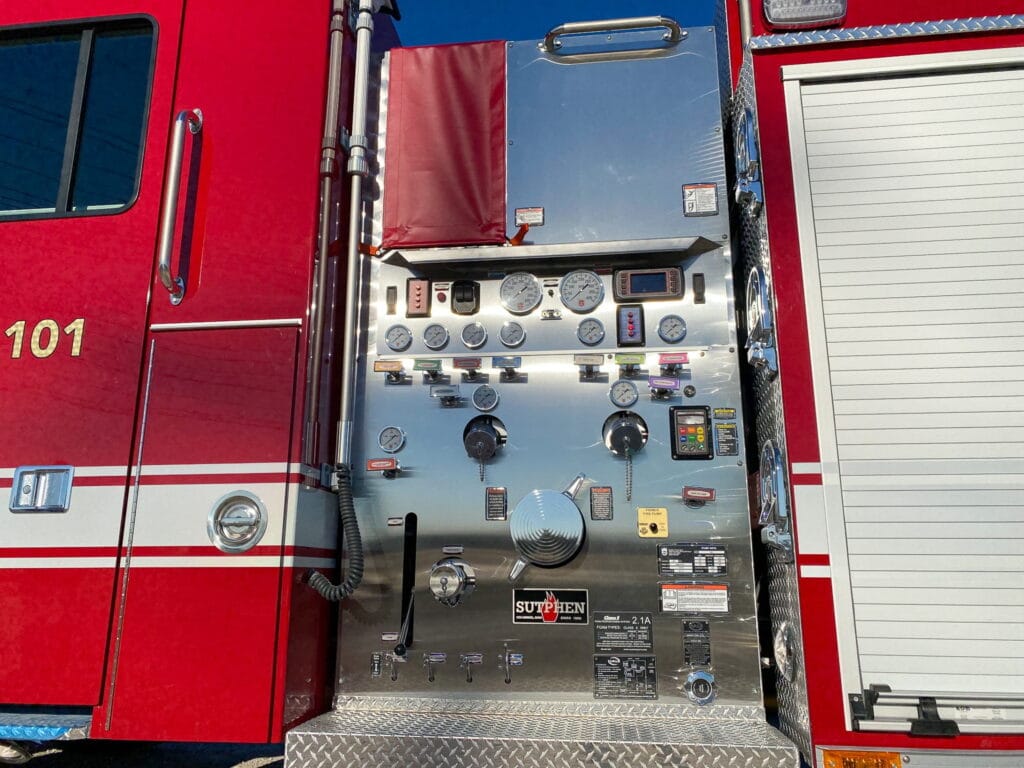

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,000 -Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A

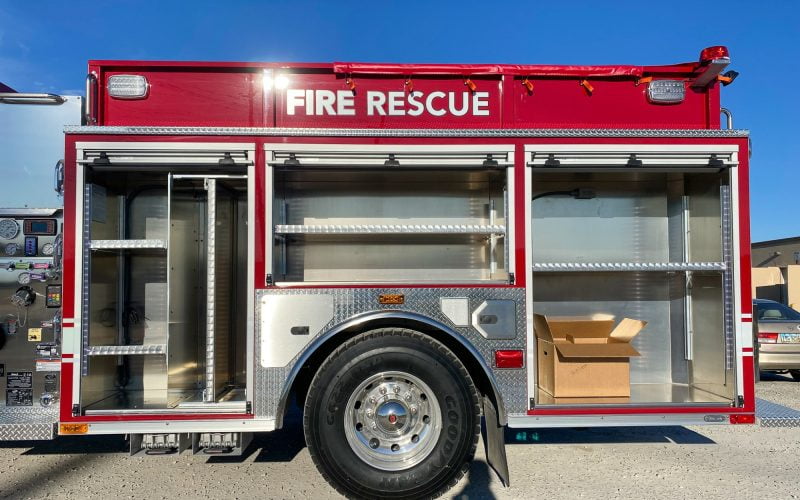

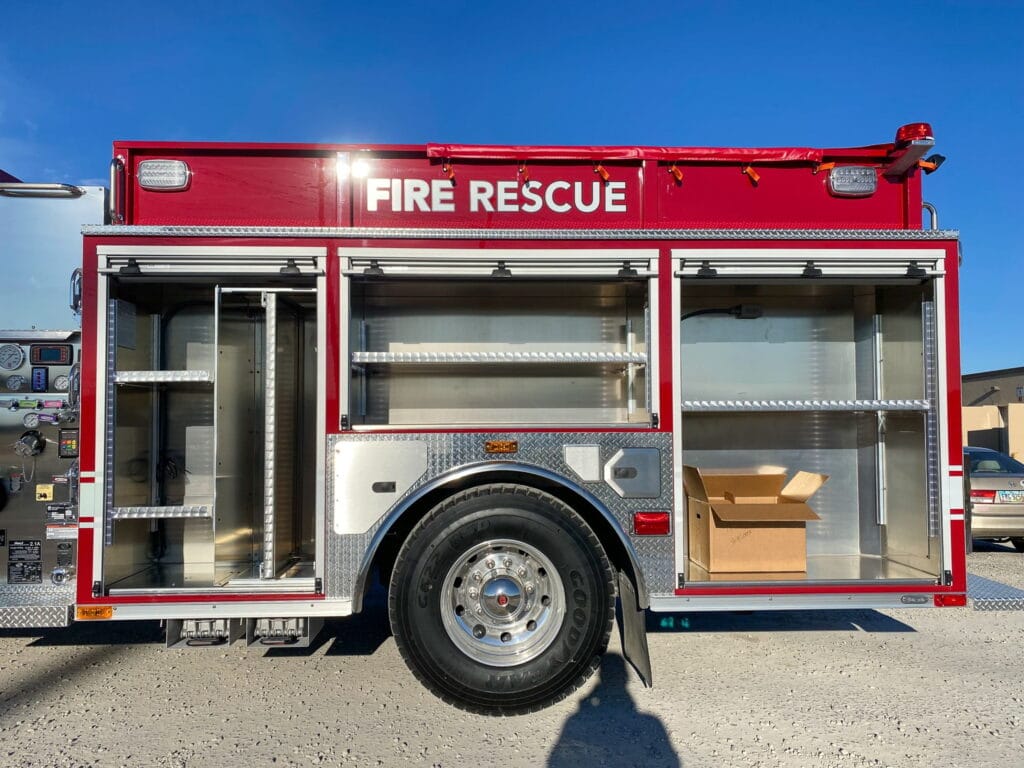

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Alco Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G2 – Alum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Whelen PFH2 LED Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9 Scene LTS
- Whelen PFH1 12V Telescopic Lights
