Delivery Date:
10/12/2018
Department Name:
Shipshewana Fire Department
Department City / State:
Shipshewana, IN
Truck Type:
Sutphen Corporation – HS #6127
Dealer – Herb Fire Equipment
WHEEL BASE: 229”
TRAVEL LENGTH: 35’ – 9”
TRAVEL HEIGHT: 10’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) Deck Gun
- Crosslay: (2) 1 ½” Speedlays and (1) 2 ½” Speedlay
- 1,000 – Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 349 cu. ft. Total Compartment Space
- Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, Deep-Center, 3/4 Width
- Federal Q2B Siren
- Hannay Electric Cord Reel, 150’ (1)
- Hannay Electric Rewind Utility Air Hose Reel with 100’ 3/8” Hose (1)
- Smart Power 10KW Generator
- Back-Up Camera

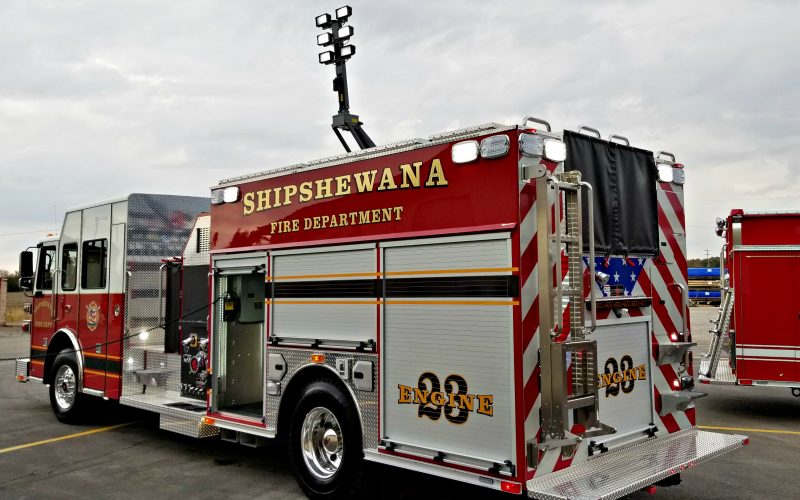

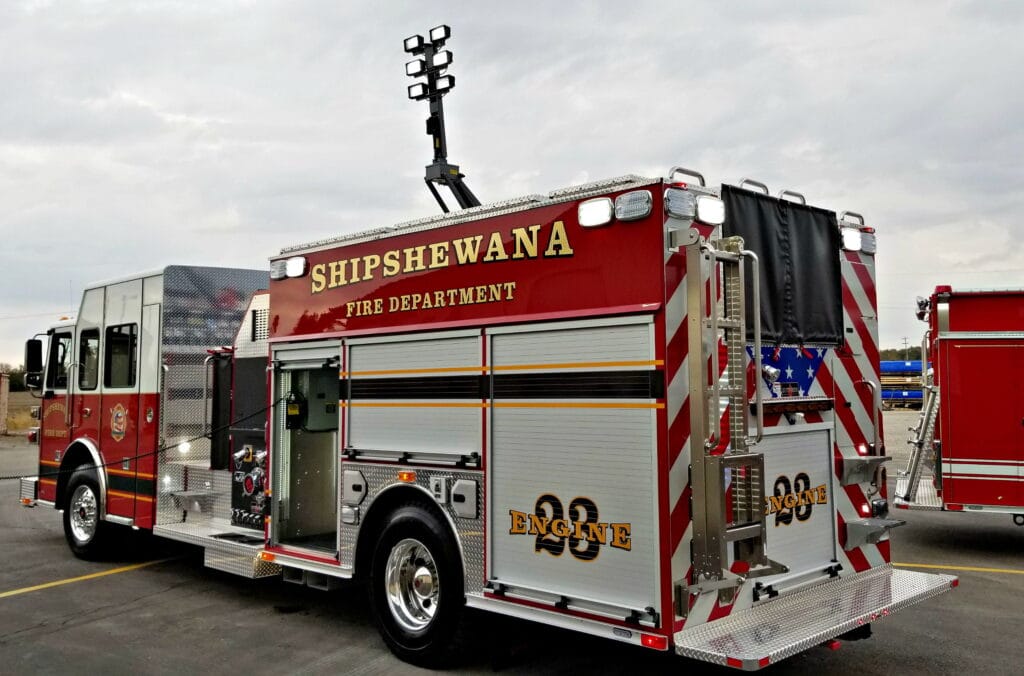

- Command Light, 230V Knight KL-408-W1
- Pike Pole/Folding Ladder Compt. Right Side
