Delivery Date:
11/22/2019
Department Name:
Sanibel Fire Control District
Department City / State:
Sanibel, FL
Truck Type:
Sutphen Corporation – HS #6387
Dealer – South Florida Emergency Vehicles
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

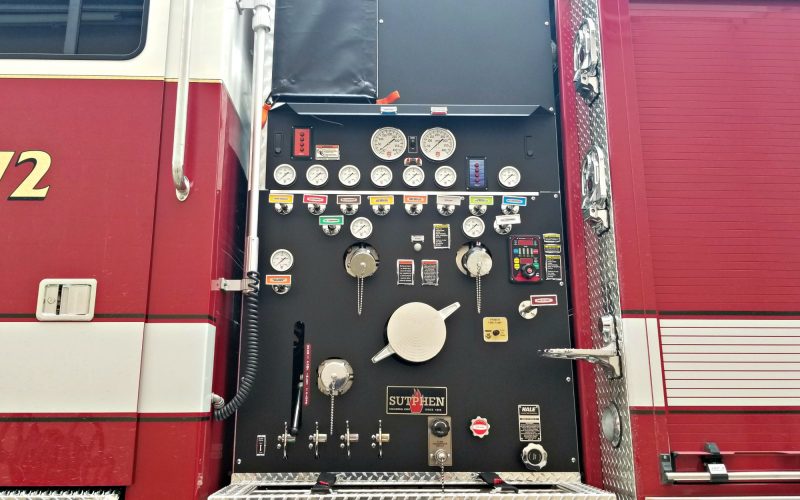

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- Speedlay: (2) 1 ½” with Lift-Out Tray and (1) 2 ½” Speedlay
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Elkhart Foam Supply System w/ Flush

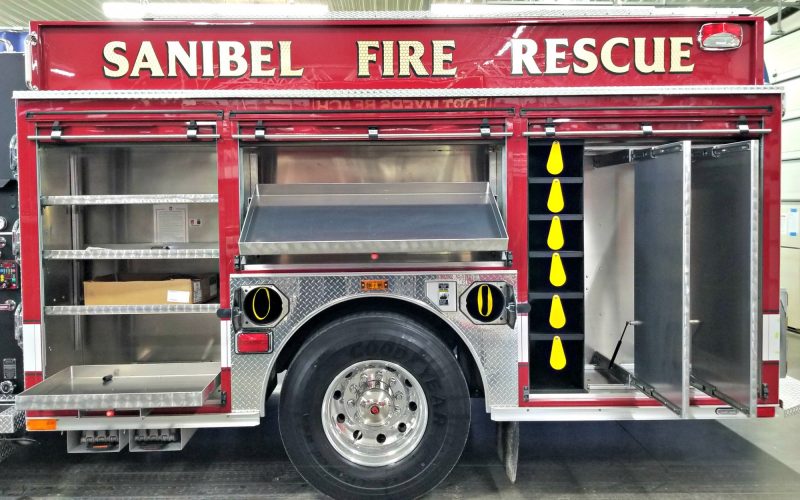

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Over 262 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: S-3 – Alum 43/53 Hydraulic Ladder Rack
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Brigade 360, Camera System
- Ziamatic Hydraulic Ladder Rack
- Whelen Freedom IV LED Lightbar
- PFH2 12V Brow
- 12V Tele Lights
- M9V2 12V Scene
