Delivery Date:
02/01/2018
Department Name:
Geneva Fire Department
Department City / State:
Geneva, OH



WHEEL BASE: 185”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 32’-1”

CHASSIS: Sutphen 62” cab with half 10” raised roof

  • Four-door, six-person cab
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISL 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 4, EVS3000

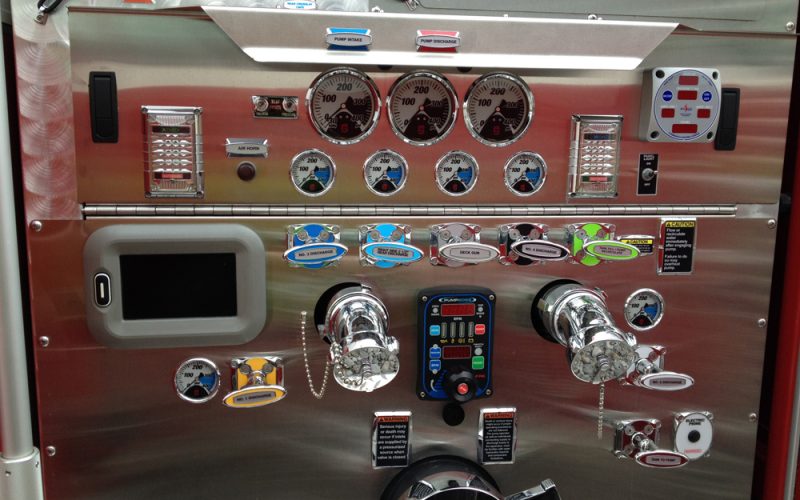

PUMP: Waterous

  • CSU-1500
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, 2 ½” Right Rear, (1) 1 ½” Front Bumper
  • 1000 Gallon Water Tank
  • 30 Gallon Foam Tank
  • Aquis 2.5 Foam Pump

BODY: Sutphen

  • Aluminum
  • Ladder Chute with Backboard Storage
  • Alco-Lite Ladders
  • 9 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • 10KW Smart Power Generator
  • Camera System, Safety Vision SV-CLCD0-70
  • 24” Bumper
  • Federal Q2B
  • Hannay Electric Cord Reel, 150’
  • Rear Access Ladder
  • Traffic Advisor, Whelen
