Delivery Date:
09/08/2018
Department Name:
Round Lake Fire Department
Department City / State:
Round Lake, NY
Truck Type:
WHEEL BASE: 195”
TRAVEL HEIGHT:
TRAVEL LENGTH: 33’ – 11”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X12, 500 HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS4000

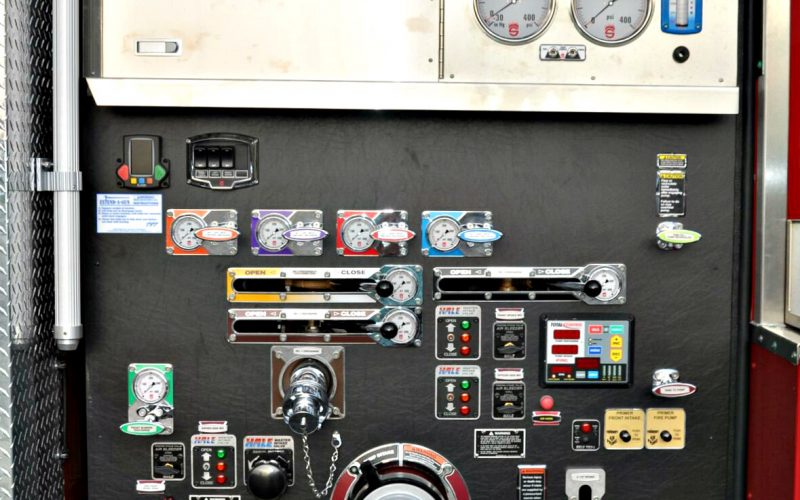

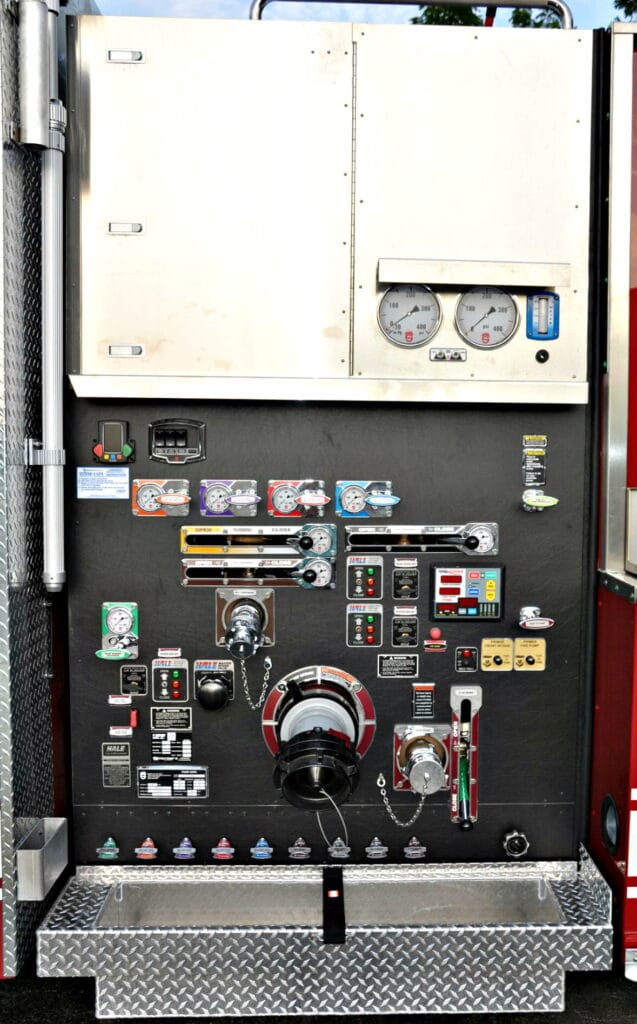

PUMP: Hale
- QMAX-2000 GPM Single Stage
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Left Rear, (2) 2 ½” Right Rear,
- 2 ½” Front Bumper, (1) 3” Deck Gun
- Monitor: Akron 3426 Apollo
- 1,000-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- Hinged Compartment Doors
- Over 118 cu. ft. Total Compartment Space
- Alco-Lite Ladders (24’ 2-Section, 28’ 2-Section, 35’ 3-Section, 14’ Roof, 10’ Folding,
12’ Combination)
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, 1” Raised Lid, Deep-Center, 3/4 Width
- Federal Q2B Siren
- Pike Pole Storage Tubes (3)
- Traffic Advisor, Whelen TANF85
- Whelen Pioneer PCPSM2C Tele-Scene Lights (2)
- Whelen, 600 Super LED Warning Lights
- Whelen Roto Beam Freedom Bars
- Whelen Rota Beam Super LED B63M7
- Traffic Advisor, Whelen TANIF85
