Delivery Date:
09/12/2017
Department Name:

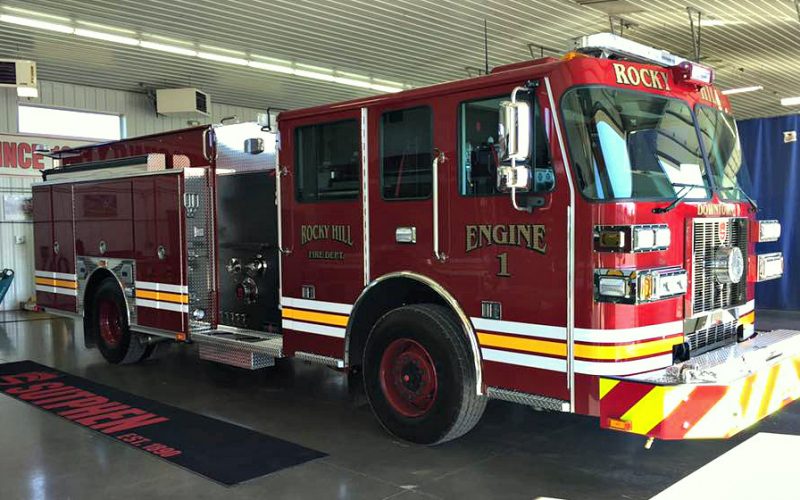

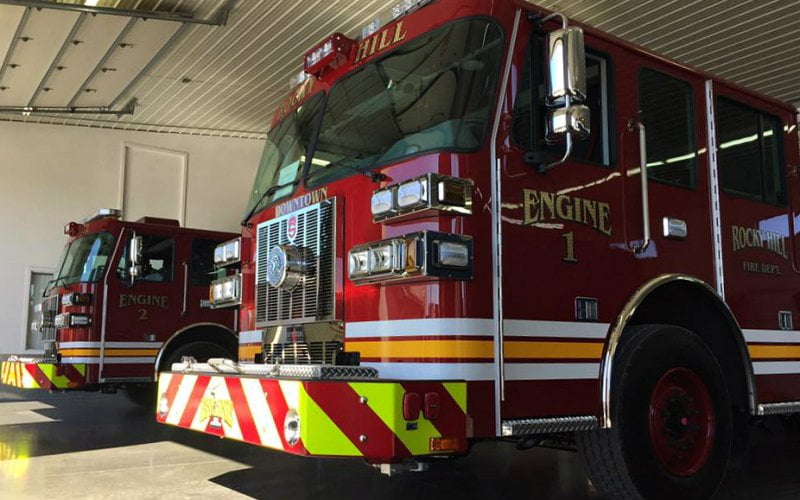

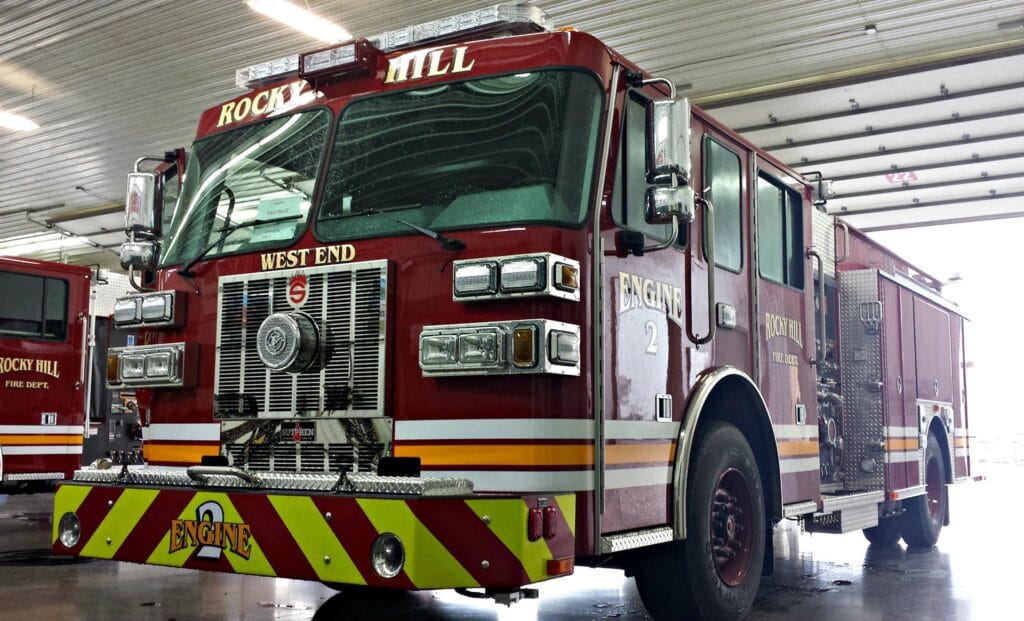

Rocky Hill Fire Department
Department City / State:
Rocky Hill, CT
Truck Type:
WHEEL BASE: 200”
TRAVEL HEIGHT: 113 7/8”
TRAVEL LENGTH: 32’-9”
CHASSIS: Sutphen 62” Extended cab with flat roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins ISL 9, 400 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 30-Gallon Foam Tank
- Elkhart Foam Supply System
- 500-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Hinged Compartment Doors
- 234 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Ladder Chute
- Duo-Safety 900A 24’
- Warning Lights, Whelen
- Scene Lights, Whelen
- Camera System, Safety Vision SV-CLCD0-70
- Monitor: TFT XFC-42 Crossfire w/ Safety Flow, Quad Stack Tips and Stream Shaper
- Federal Q2B
- 18” Bumper
