Delivery Date:
04/01/2021
Department Name:
Rochester Fire Protection District
Department City / State:
Rochester, IL

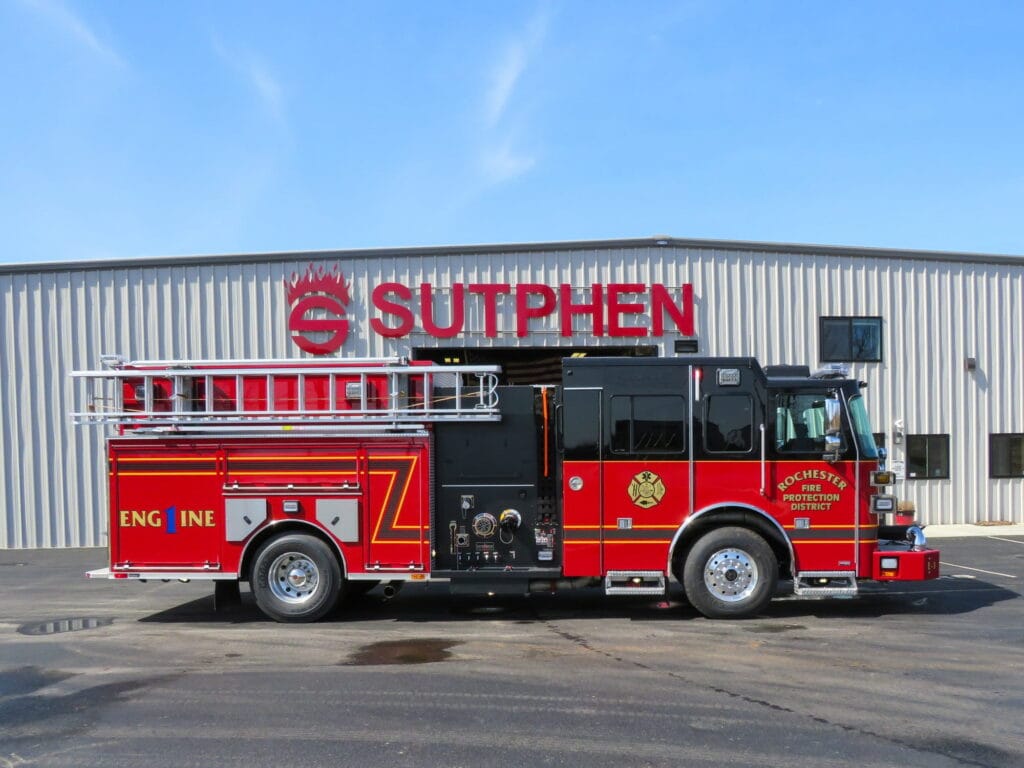

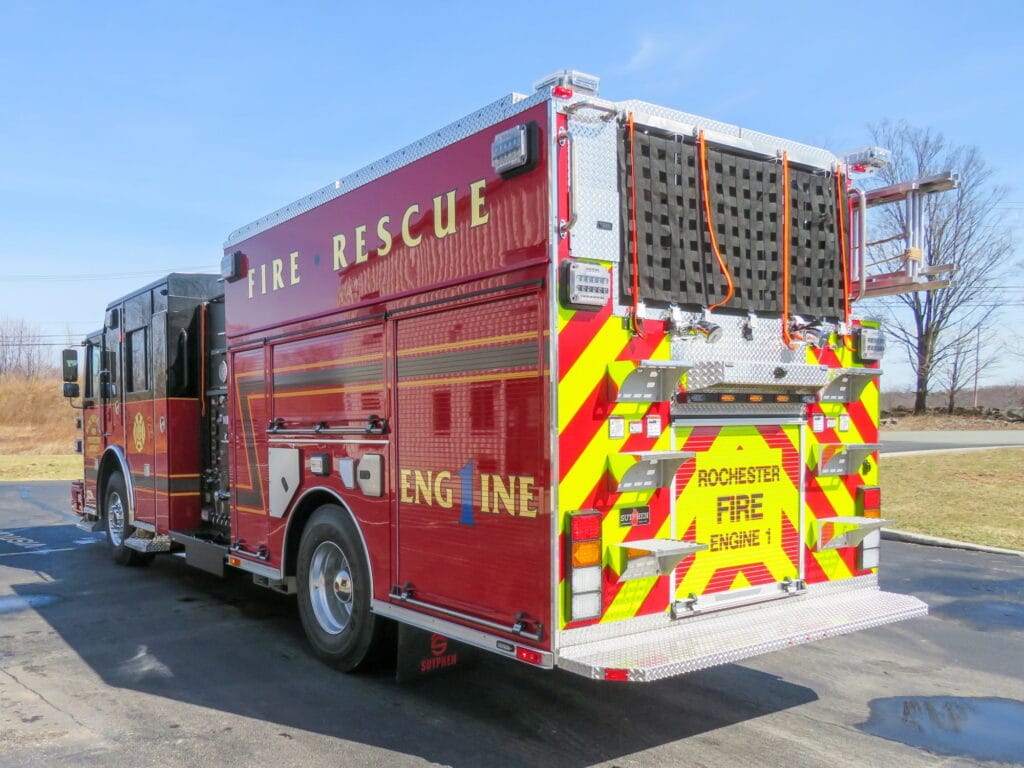

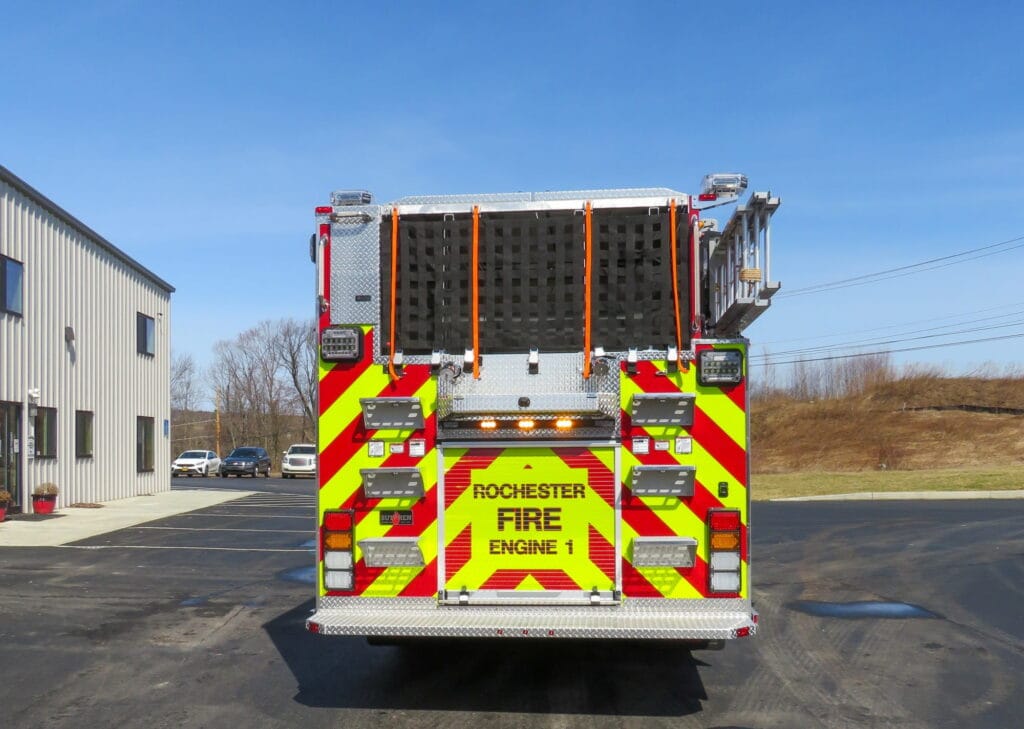

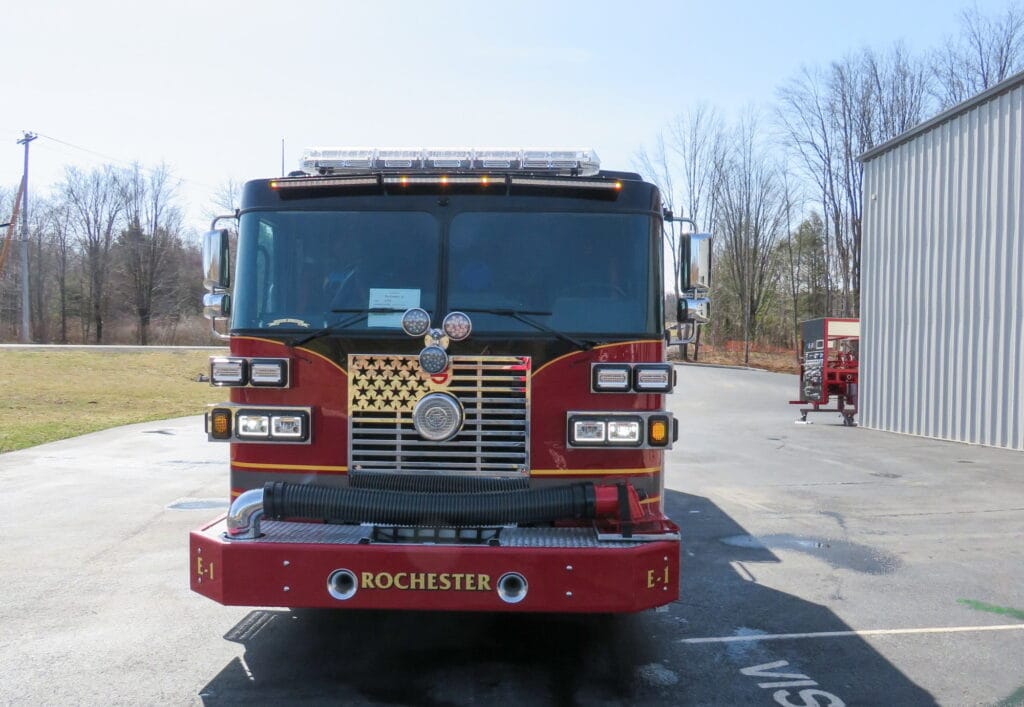

Truck Type:

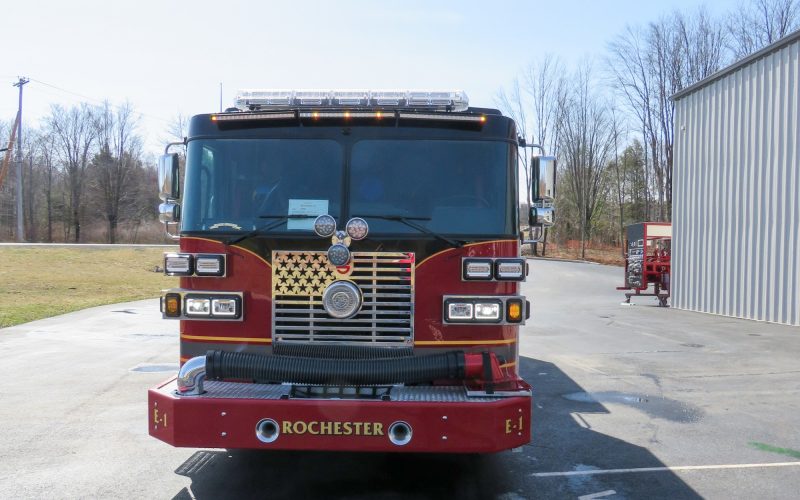

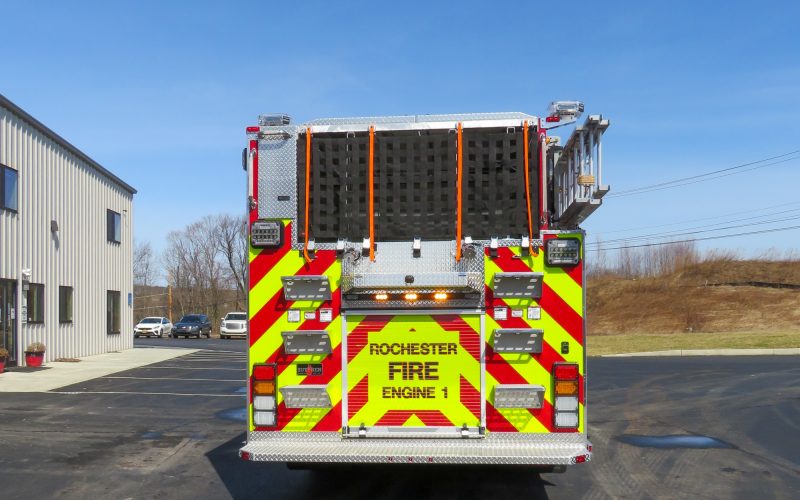

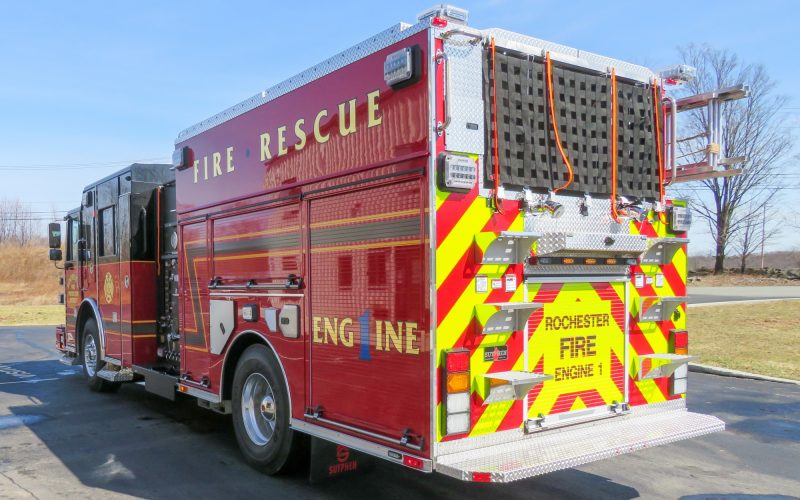

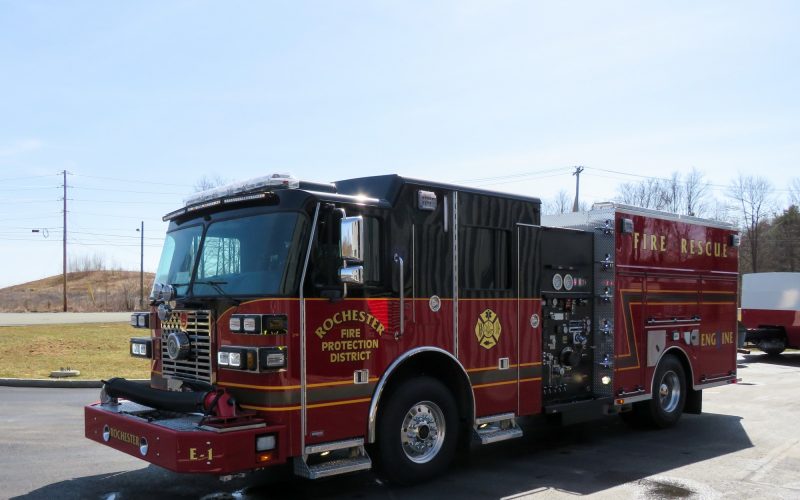

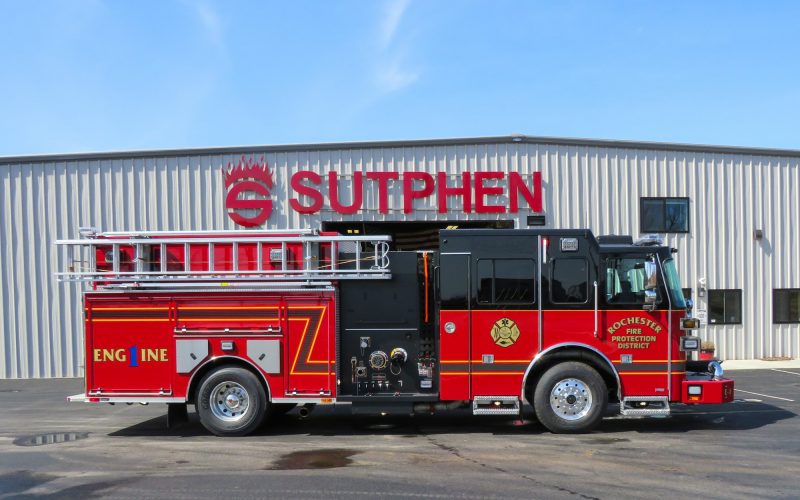

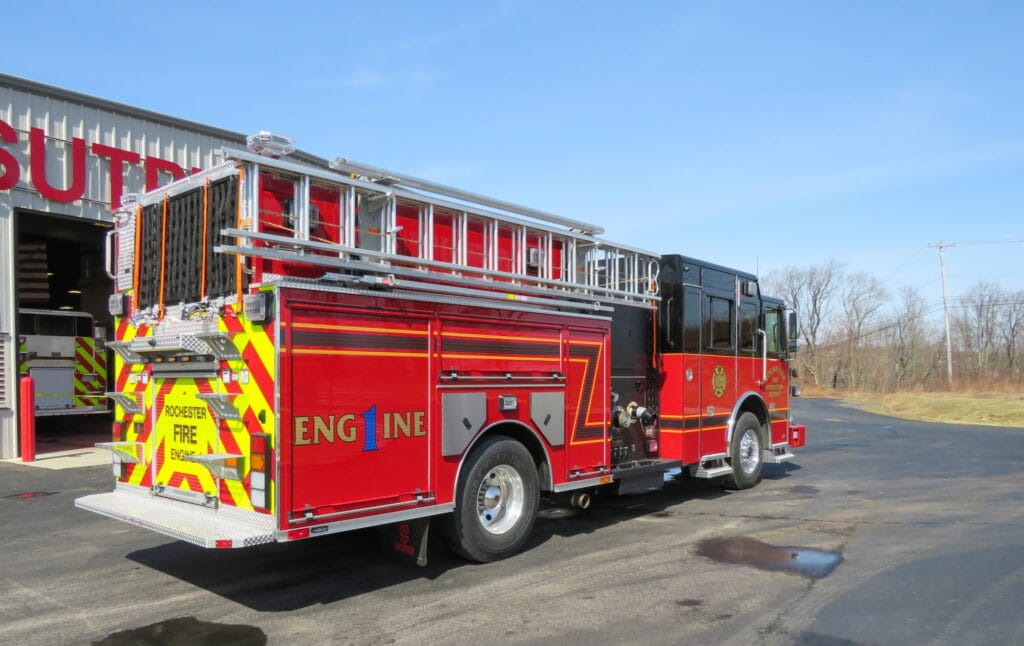

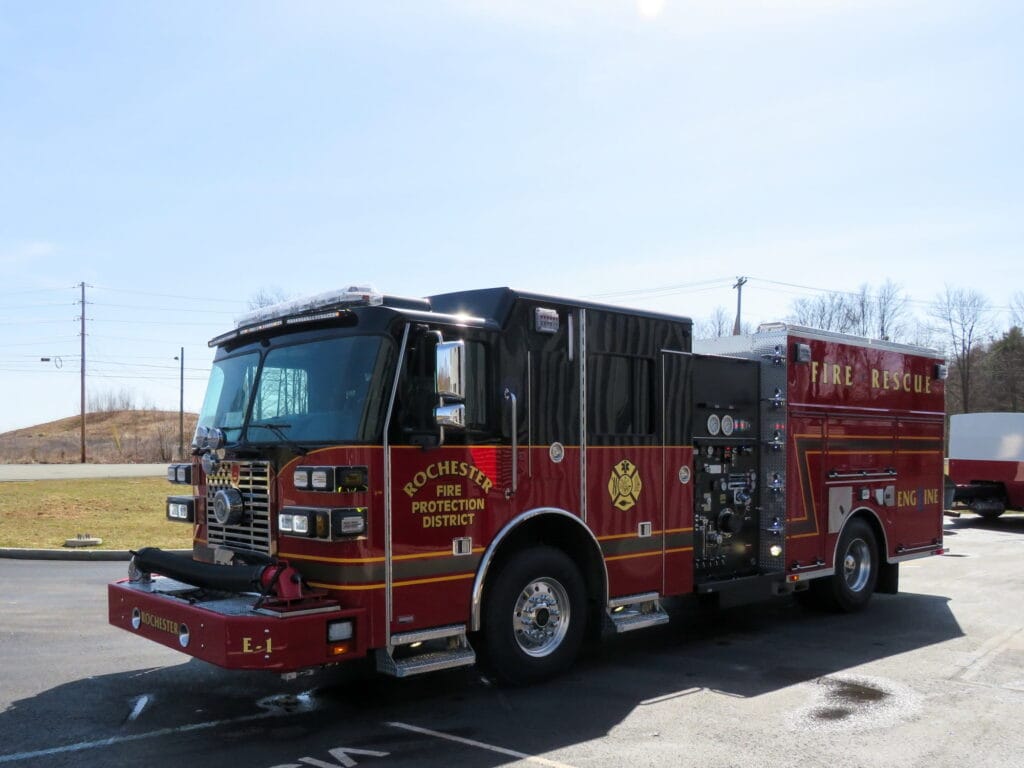

Sutphen Corporation – HS #6765
Dealer – Legacy Fire Apparatus
WHEELBASE: 194”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 32’-3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Suspension 20,000 lbs.
- Rear Suspension 27,000lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: C.E. Niehoff 360 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- CSU-1500 GPM Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½”
- Speedlays: (2) 1 ½” w/ Swivels and Poly Lift-Out Trays
- 1000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Akron 125 GPM
BODY: Sutphen
- Body: PA-01 Res 30/53 Elec Lad Rack
- Amdor Roll-Up Compartment Doors
- 245 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 1200A 28’ 2-Sec & 875A 16’ Roof & 10’ Folding
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Painted Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview 360
- Ziamatic Quic-Lift Electric Ladder Rack
- Code 3 69” RMX Lightbar
- Code 3 6X5 Warning Lights (8)
- Code 3 Quad Cluster Taillights
- Fire Tech 3 Piece Brow Light
- Fire Tech Guardian Elite Scene Lights (8)
