Delivery Date:
08/20/2020
Department Name:
Rainbow Lakes Fire Department
Department City / State:
Denville, NJ
Truck Type:

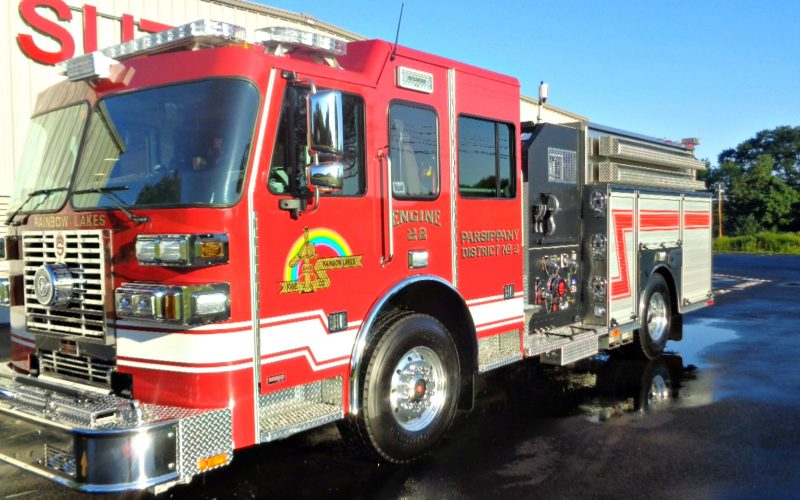

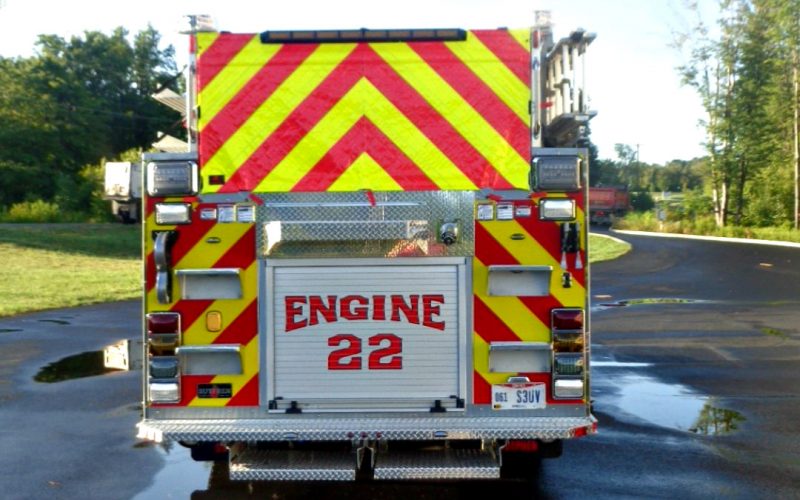

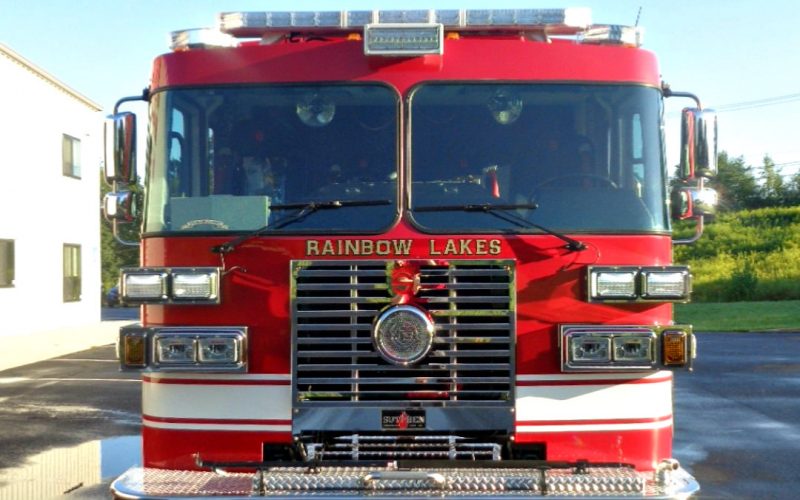

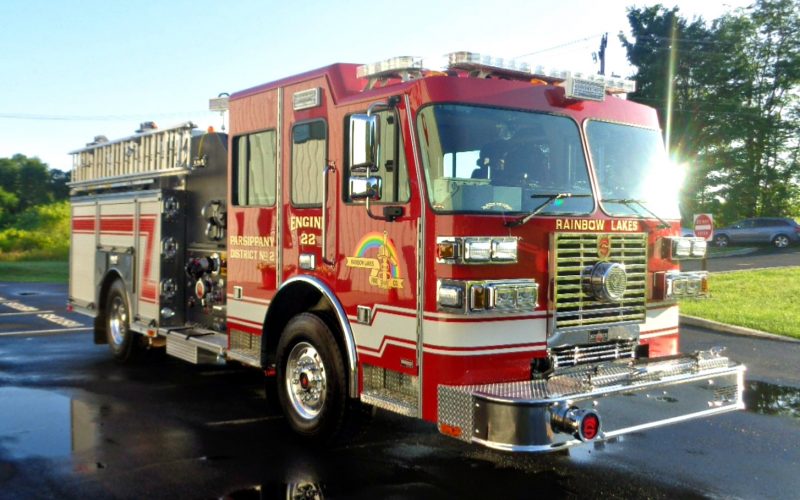

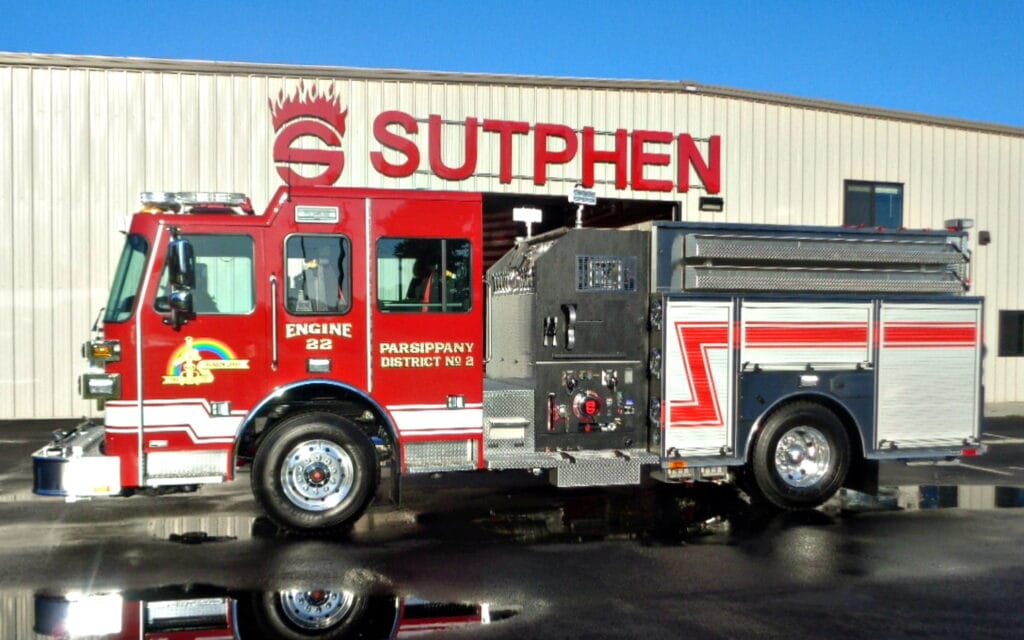

Sutphen Corporation – HS #6632
Dealer – Blaze Emergency Equipment Company
WHEELBASE: 182”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 30’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: C.E. Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front/Left of Main Hosebed, (1) 1 ½” Front/Right of Main Hosebed, Discharge, (1) 1 ½” Front Bumper (1) 3” Deck Gun
- Monitor: Akron 3423 Apollo
- 1,000-Gallon Water Tank
- 50-Gallon Foam Tank
- Foam System: Williams ATP 500 Foam System Class A and B Foam
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute with Backboard Storage
- Body: S2-Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 150’ (1)
- Generator: 6KW Harrison HYD
- Whelen Freedom IV 72” LED Lightbar
- Whelen L31 Beacons
- Akron Scene Star
- Akron Scene Star Recessed 12V
- Recessed Traffic Advisor
