Delivery Date:
02/26/2020
Department Name:
Queen Anne Hillsboro VFC
Department City / State:
Queen Anne, MD
Truck Type:
WHEELBASE: 225”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 34’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff 360
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (2) 4” Right, (1) 2 ½” Front Left, (1) 2 ½” Front Right, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 1 ½” W/ Poly Lift-Out Tray
- 1000-Gallon Water Tank
- 30-Gallon Foam Tank
- Williams ATP 500

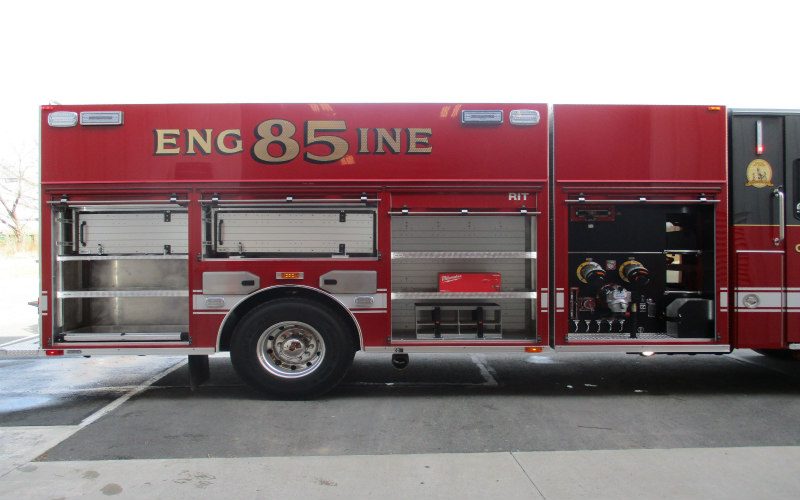

BODY: Sutphen
- Amdor Roll-Up Compartment Doors
- 8 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Fully Enclosed Ladder Chutes
- Body: PA-06 RES 56/53 Lad Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Safety Vision Camera
- Harrison 6KW Generator
- Air Bottle Compartments (7)
- Firetech 72” Brow Light
- FRC Spectra Scene Lights
- Whelen Freedom 72” Lightbar
- Whelen M6 Warning Lights
- Whelen 600 Warning Lights
