Department Name:
Pratt Community Fire Department
Department City / State:
Pratt, WV
Sutphen Corporation – HS #6316
Dealer – Heritage Fire Equipment
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 31’-4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

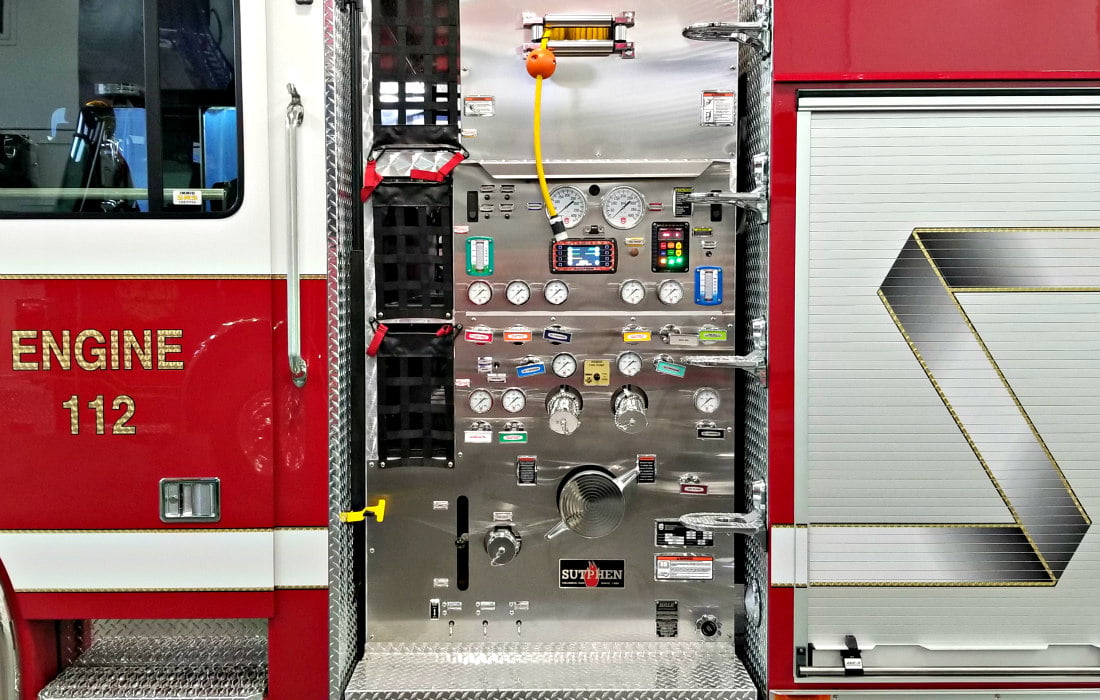

PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Smartfoam 2.1
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Doors
- 314 cu. ft. Total Compartment Space
- Duo-Safety (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- 3,500-Watt Inverter
- Hannay Electric Cord Reel, 150’ (1)
- Firetech Guardian Elite Scene Lights
- Whelen LED, TAL65 36” Traffic Advisor

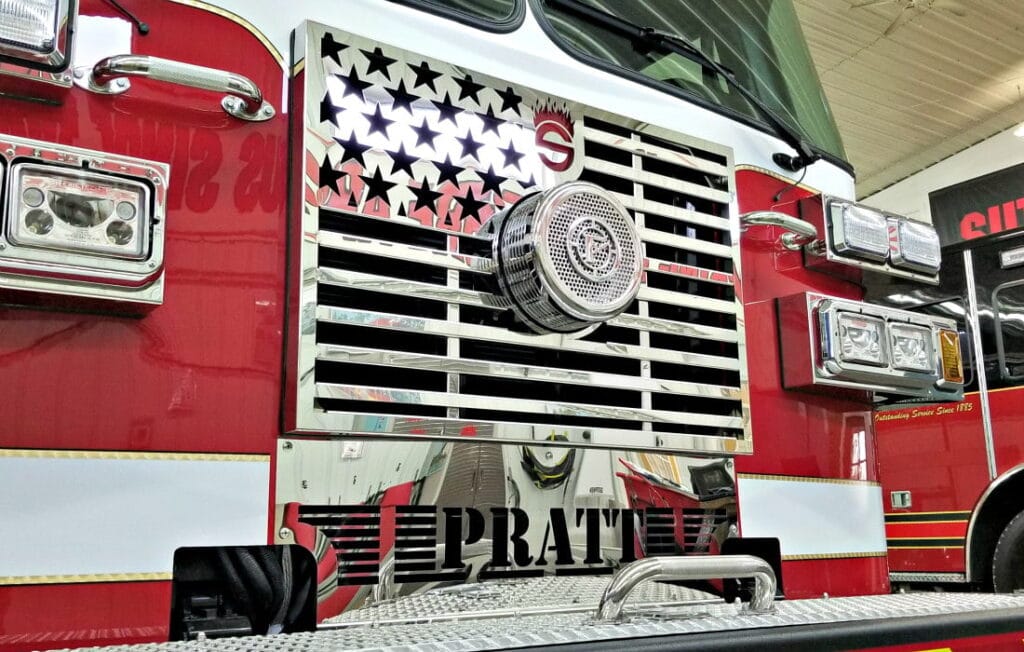

- Special Grille with American Flag
- Three-Camera Brigade Camera System
- 18” Bumper
- Federal Q2B Siren
