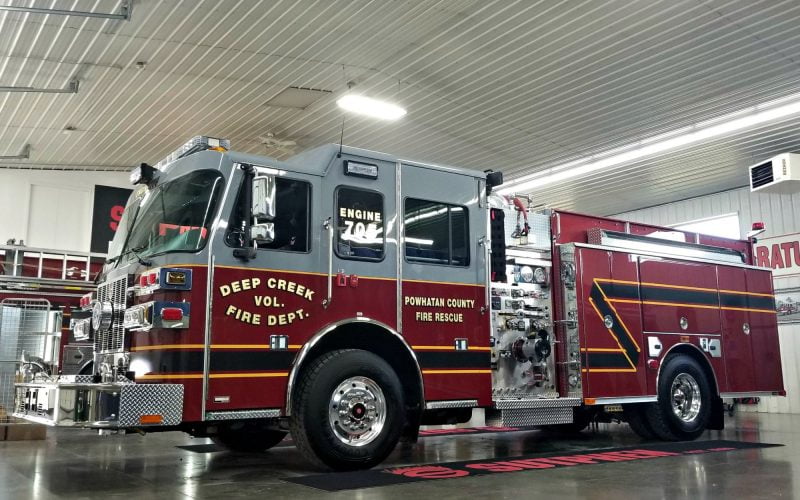

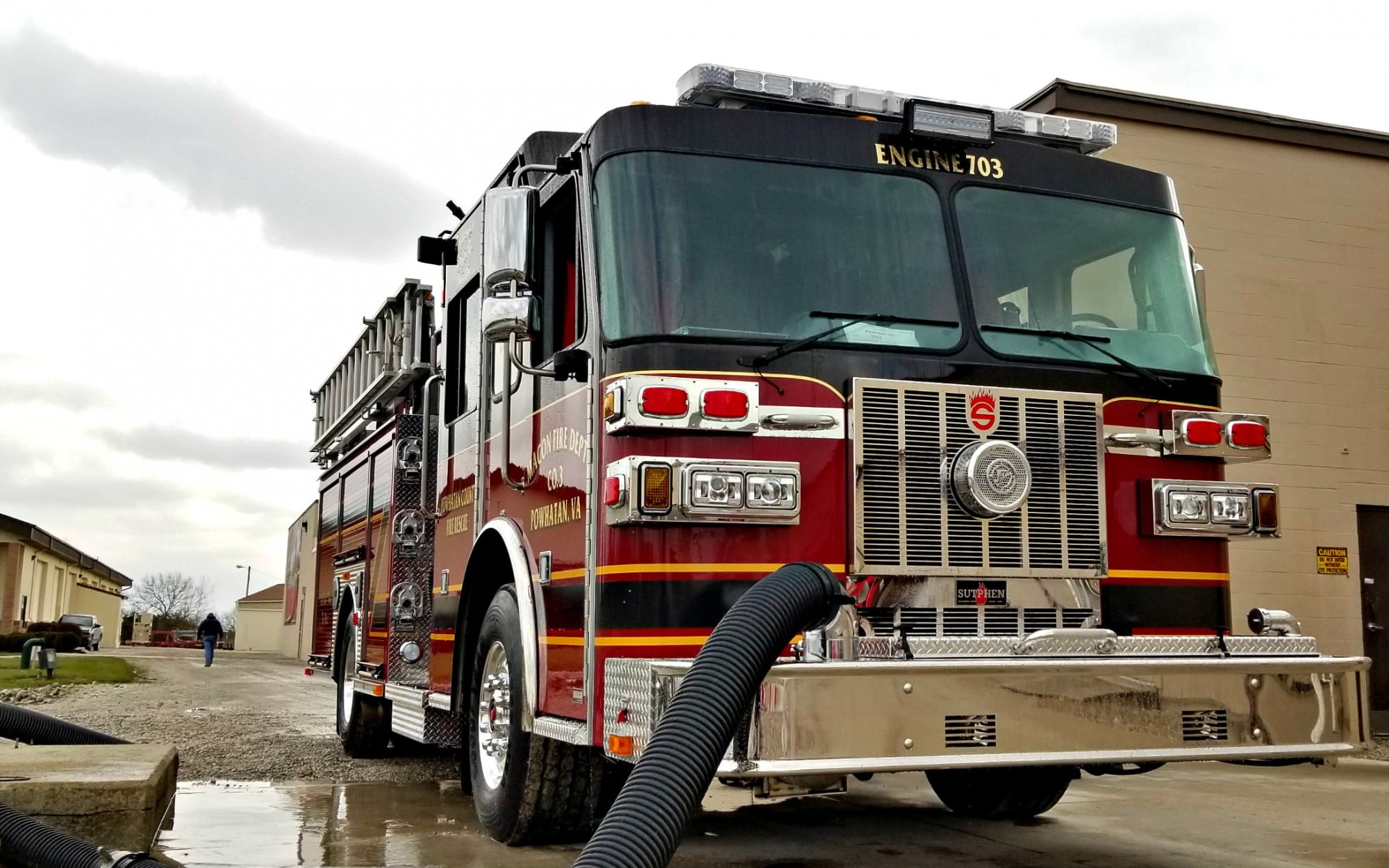

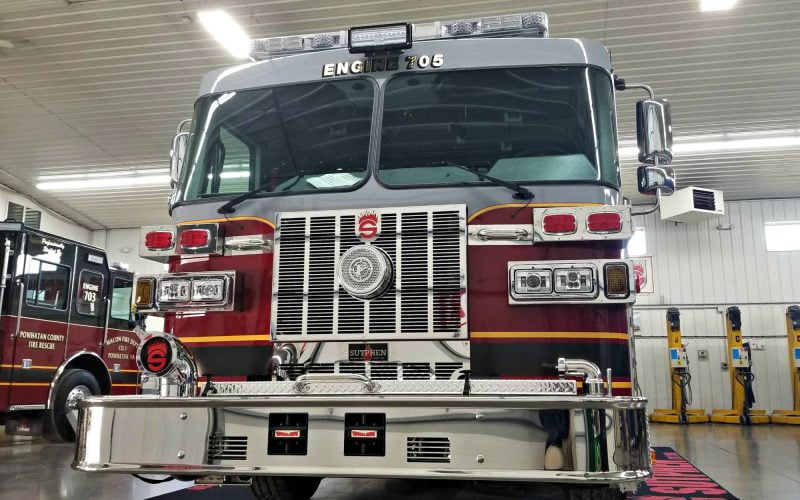

Sutphen Corporation – HS #6362
Dealer – Ron Garber
WHEEL BASE: 188”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

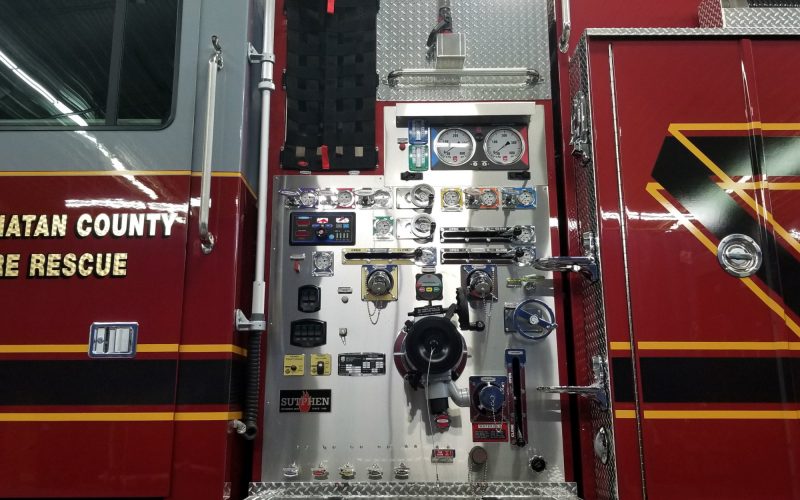

PUMP: Waterous
- CSU-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve w/ 2 ½” Pipe, 2 ½” Droop, Left Rear, (1) 2 ½” Valve w/ 2 ½” Pipe, 2 ½” Droop, Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Akron Foam Supply System
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel

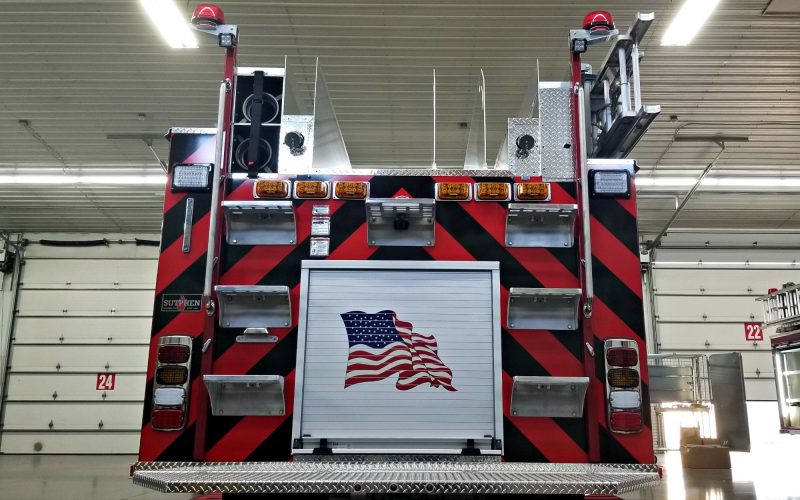

BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Over 263 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-28 28’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: Modified PA-12 – Res 43/53 Ladder Rack
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper Extension
- Camera System for VMUX, Rear
- David Clark Intercom System
- Federal Q2B, Grille Mount
- FRC Spectra 12V LED Brow
- FRC Spectra 12V LED Scene
- FRC Spectra 12V LED Tele
- Whelen Freedom IV (10) LED Rota-Beam Lightbar
- Whelen L31 Red LED Beacon
