Delivery Date:
10/12/2018
Department Name:
Powers VFD of Jones County
Department City / State:
Powers, MS
Truck Type:
Sutphen Corporation – HS #6253
Dealer – Passman’s EVT Services
WHEEL BASE: 199”
TRAVEL HEIGHT: 10’ – 2”
TRAVEL LENGTH: 32’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Seven-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000

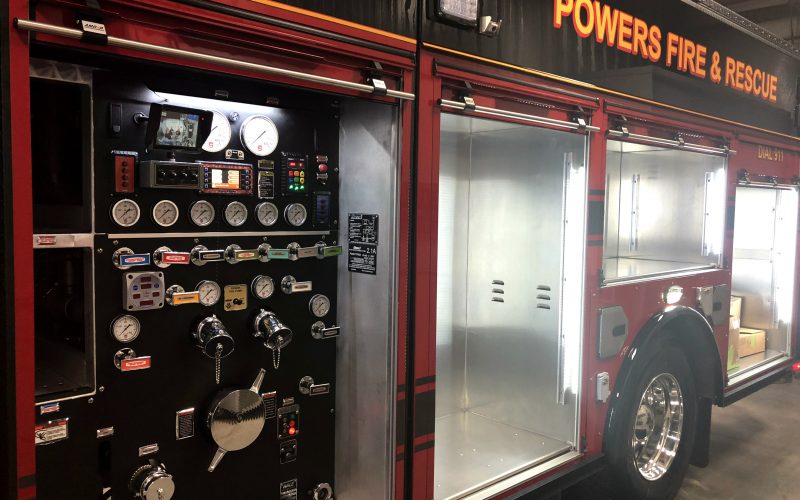

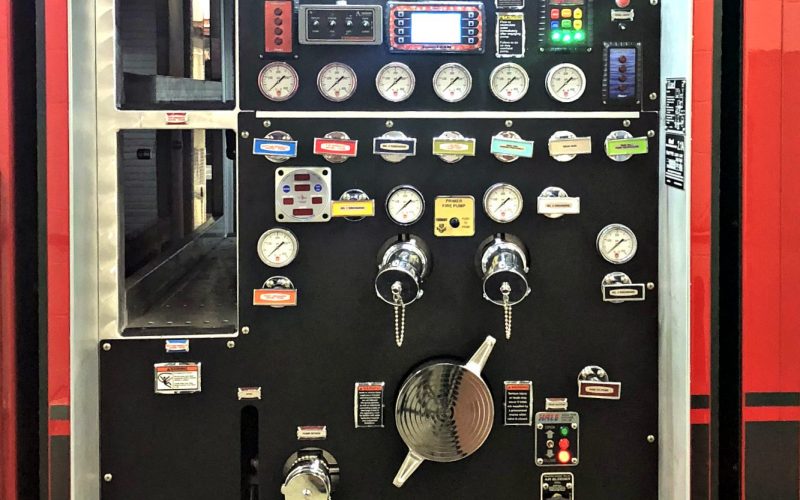

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, 2 ½” Front/Right of Main Hosebed, 1 ½” Front Bumper, (1) 3” Deck Gun
- Deck Gun Monitor: Akron 3482 Stream Master2
- Crosslays: 2” Speedlays with 1 ½” Swivel and Poly Lift-Out Tray
- 1,000-Gallon Tank
- 20-Gallon Tank
- Hale Foamlogix 2.1
- Enclosed Pump Module
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 314 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24, 24’ 2-Section & PRL-14, 14’ Roof & 10’ Folding)
- Ladder Chute
OPTIONAL EQUIPMENT:
- 24” Bumper Extension
- Brigade Backeye 360 Degree Camera
- Federal Q2B Siren
- Smart Power 6KW Generator
- Hannay Electric Cord Reel, 150’ (1)
- Light Tower, Wilburt NS1.8-460 SPC
- American Flag Vinyl Overlay, Front Grille
