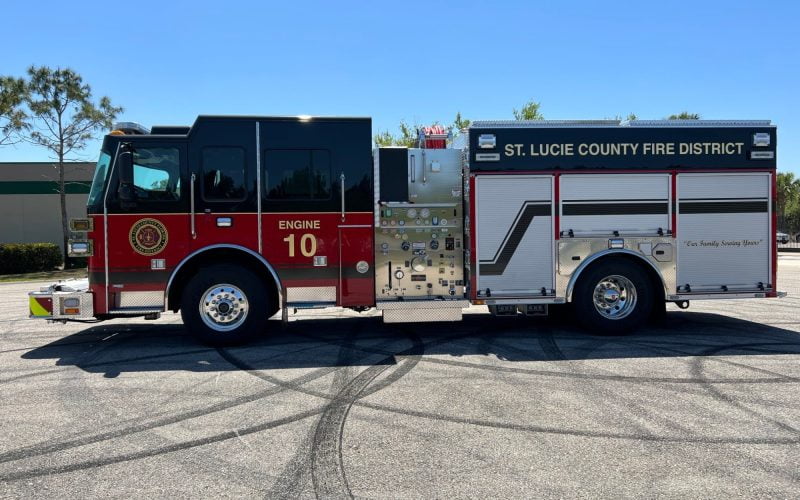

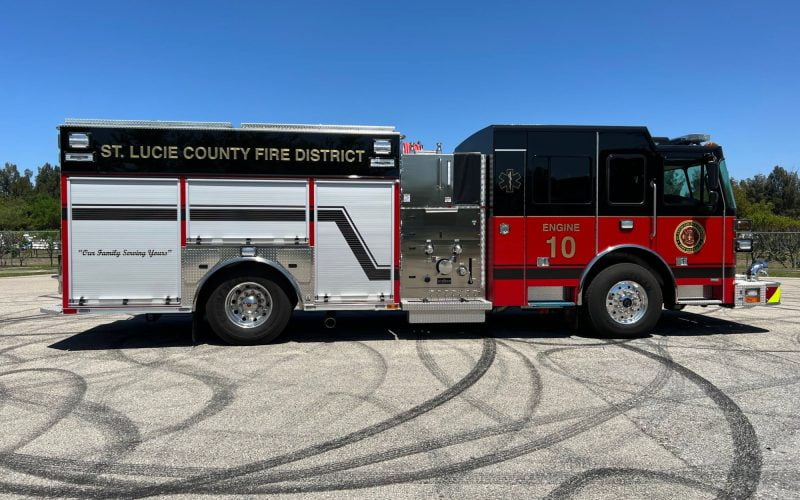

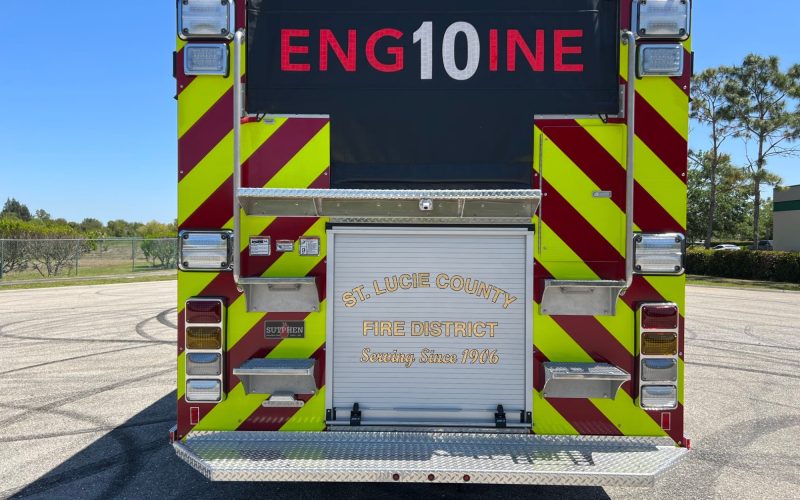

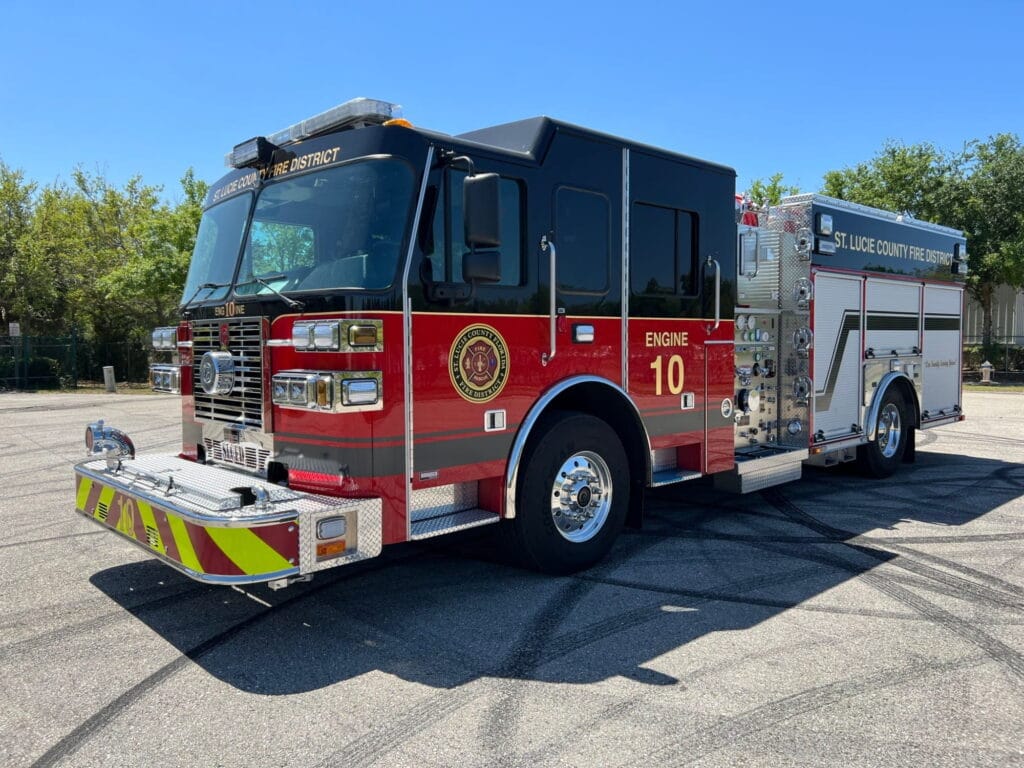

Delivery Date:
03/31/2022
Department Name:
Saint Lucie County
Department City / State:
Port Saint Lucie, FL
Truck Type:
Sutphen Corporation – HS #6990
Dealer – South Florida Emergency Vehicles
WHEELBASE: 199”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 396”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 400HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX – 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Front/Left Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” Crosslays w/ 1 ½” Swivel
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Elkhart w/ Flush
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Over 294 cu ft. Total Compartment Space
- Alco-Lite Pel-24 Ladders: (1) 24’ 2-section & (1) PRL-14 14’ Roof & (1) 10’ Roof
- Body: G2 – Alum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Whelen Freedom LED Lightbar
- FRC Spectra Brow Light
- FRC 900 LED Scene Light
- Camera System: Brigade 360
- Intercom System: Firecom (1 Wireless, 4 Wired), Single Radio
