Delivery Date:
05/14/2024
Department Name:

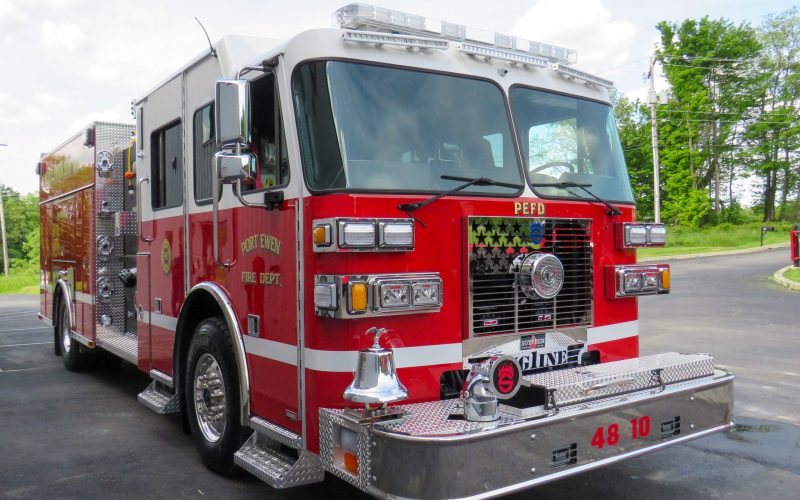

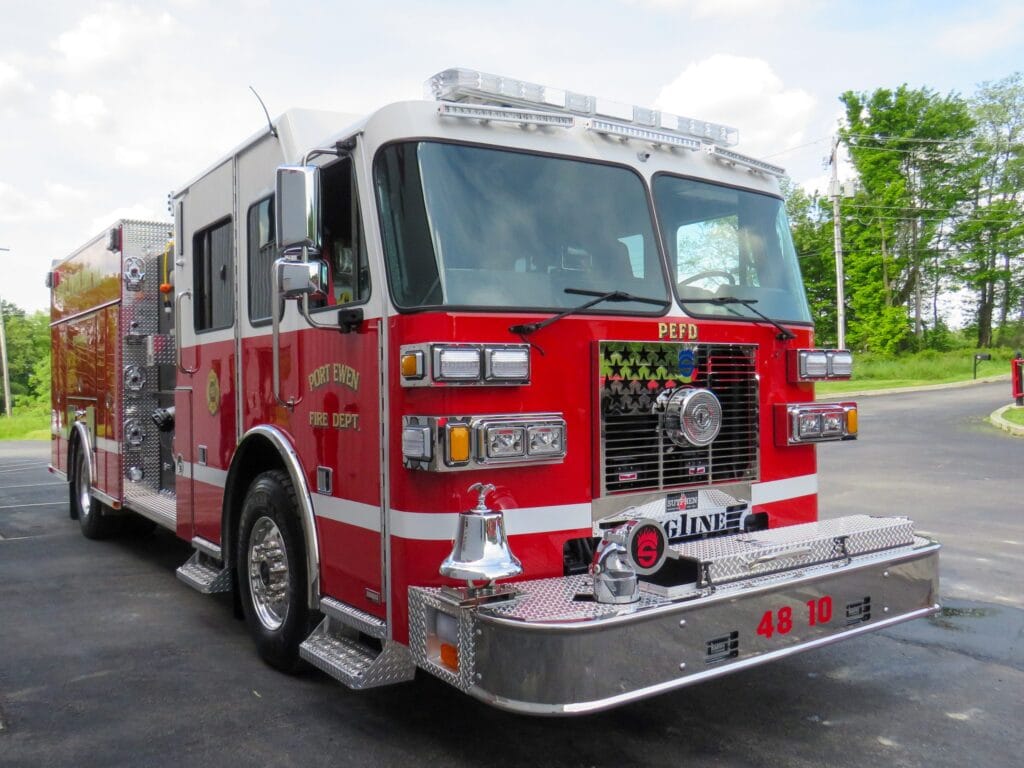

Port Ewen Fire District
Department City / State:
Port Ewen, NY
Truck Type:
WHEELBASE: 214”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 33’ – 11 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 21,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2000 GPM 6” Suction, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” to Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors, Painted
- 371 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: PA-17 43/53 Chute & Double Hatch
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 175’ (1)
- Generator: Smart Power 10KW
- Camera System: Brigade, Backeye 360 Camera System
- FireTech 3-Piece 72” LED Brow Light
- Whelen Freedom IV 72” LED Light Bar
- FireTech Tele Light (2)
- Whelen Traffic Advisor LED
