Delivery Date:
08/28/2020
Department Name:
Pedernales Fire Department
Department City / State:
Briarcliff, TX

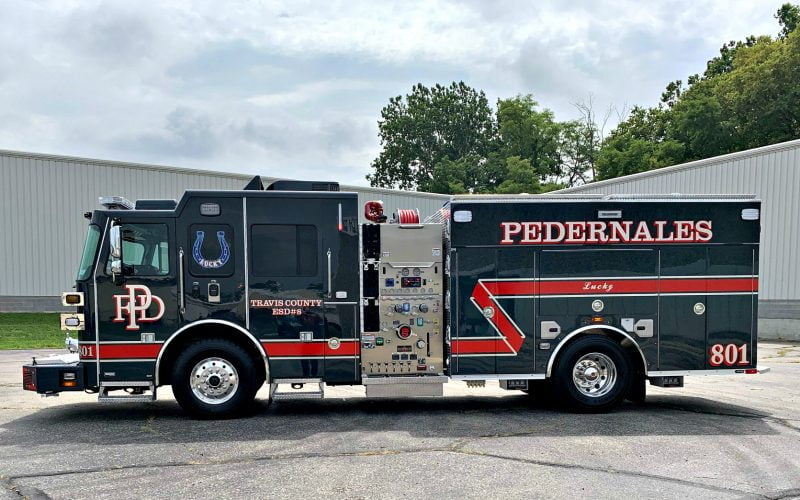

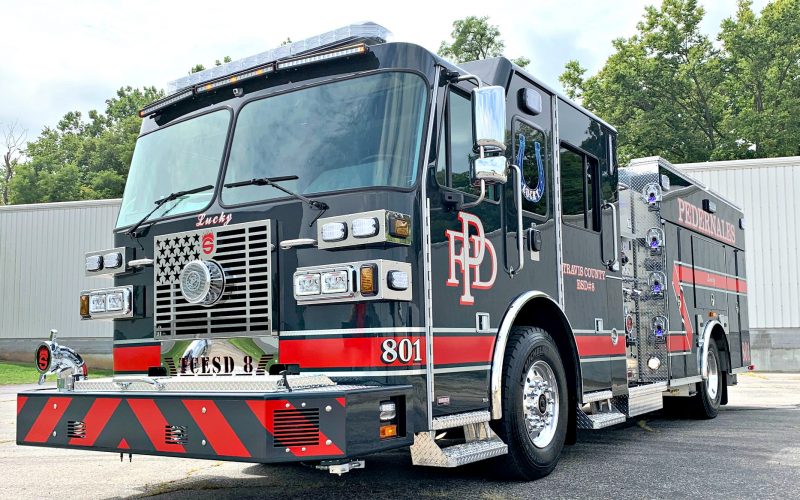

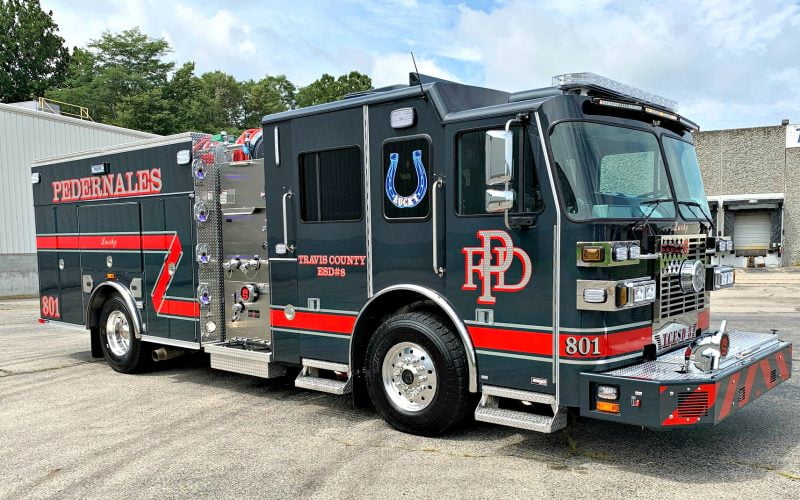

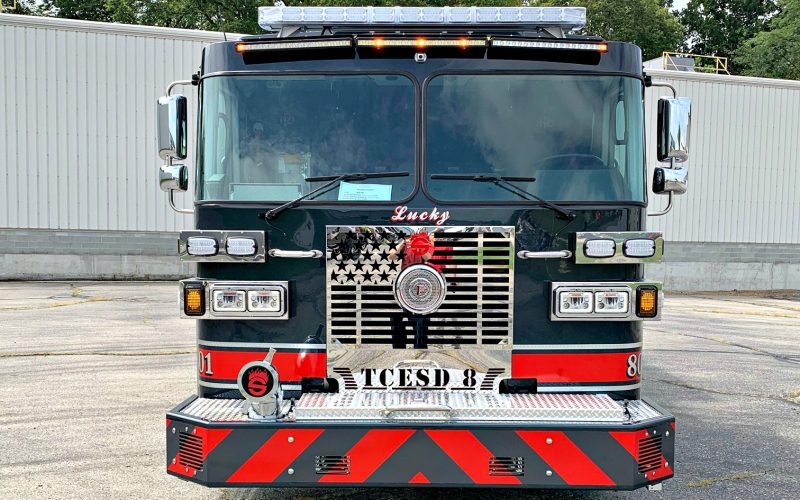

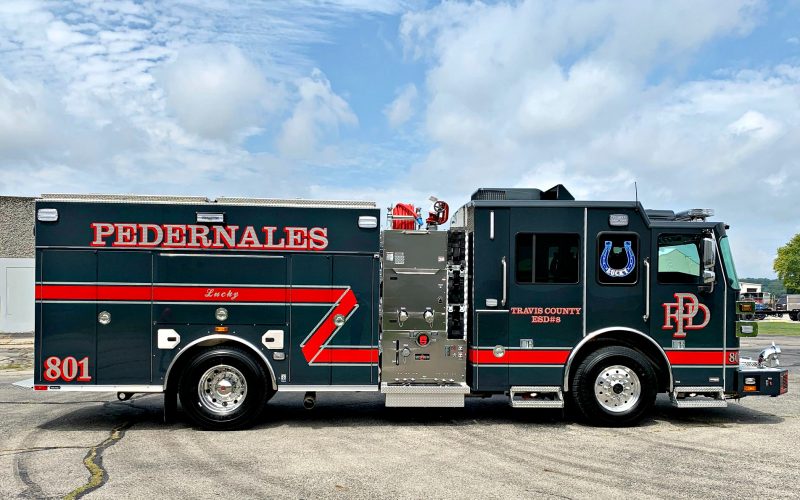

Truck Type:
Sutphen Corporation – HS #6618
WHEELBASE: 196”
TRAVEL HEIGHT: 10’ – 6”
TRAVEL LENGTH: 32’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: C.E. Niehoff, 415 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Waterous
- S101 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
- Monitor: Akron 3423 Apollo
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System, Foampro 2001, 2.6 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute
- Body: G9-Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera
- Wireless Intercom, Setcom, Single Radio, 6 Positions
- Firetech 3-Piece 72” Led Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9 Scene Lights
- Whelen M6V Cornering Lights
- Whelen LED Traffic Advisor
