Delivery Date:
09/09/2020
Department Name:
Palm Beach County Fire Rescue
Department City / State:
West Palm Beach, FL

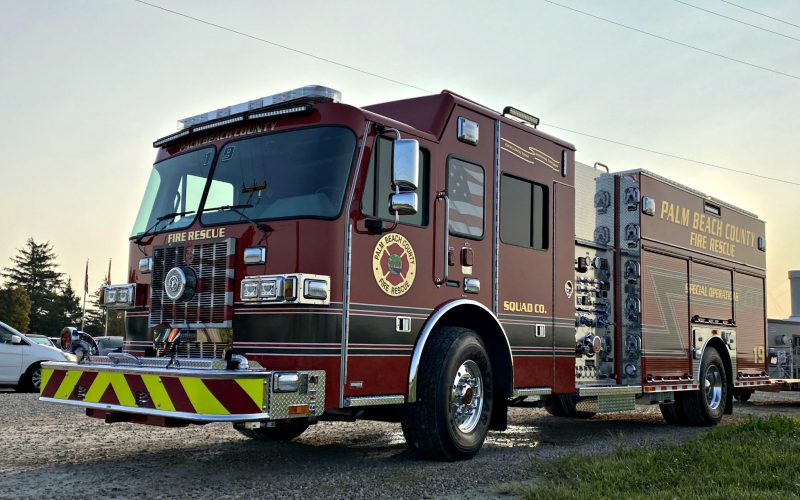

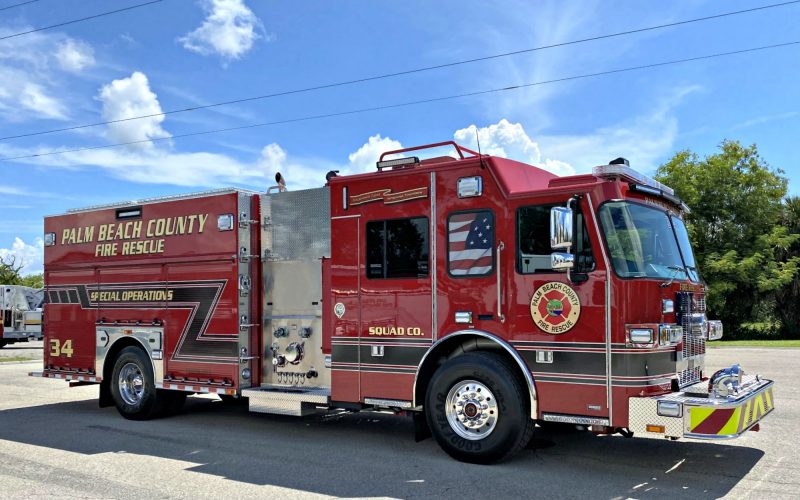

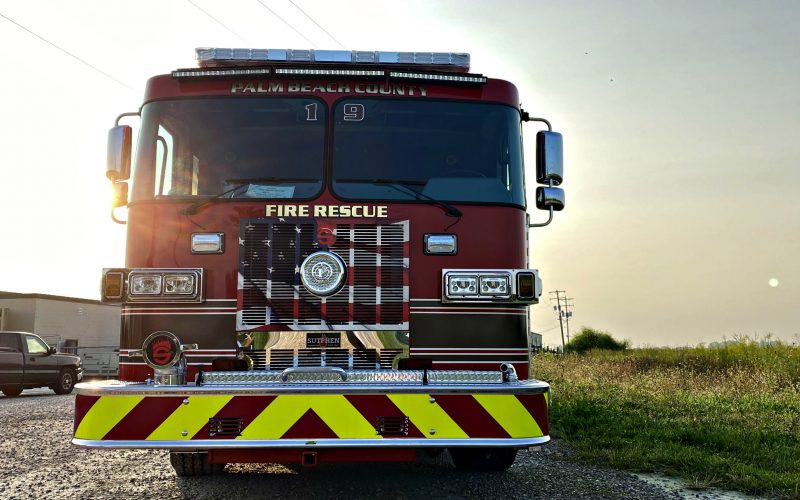

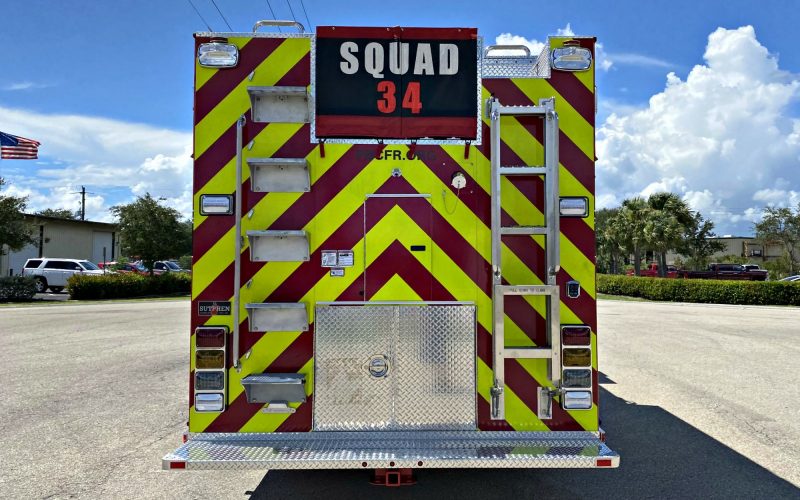

Truck Type:
Sutphen Corporation – HS #6577-78
Dealer – South Florida Emergency Vehicles
WHEELBASE: 219”
TRAVEL HEIGHT: 11’
TRAVEL LENGTH: 34’ – 11”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 15” raised roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

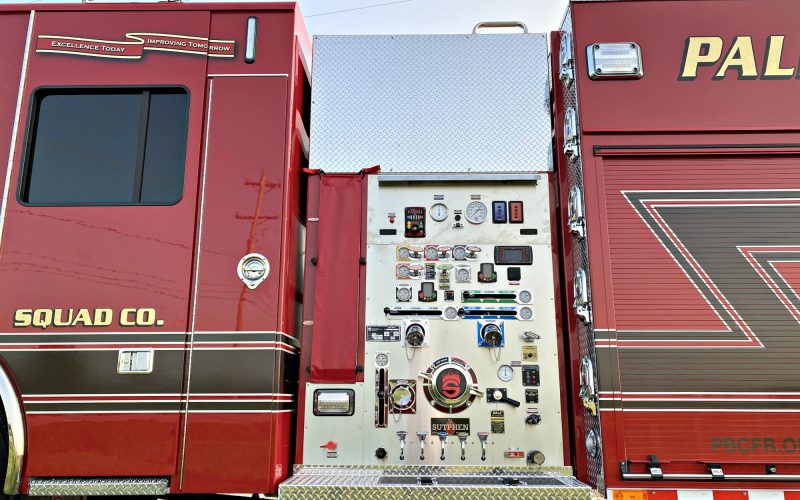

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 1 ½” w/ Lift-Out Trays
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- 20-Gallon Foam Tank
- Foam System: Hale Smartfoam 5.0

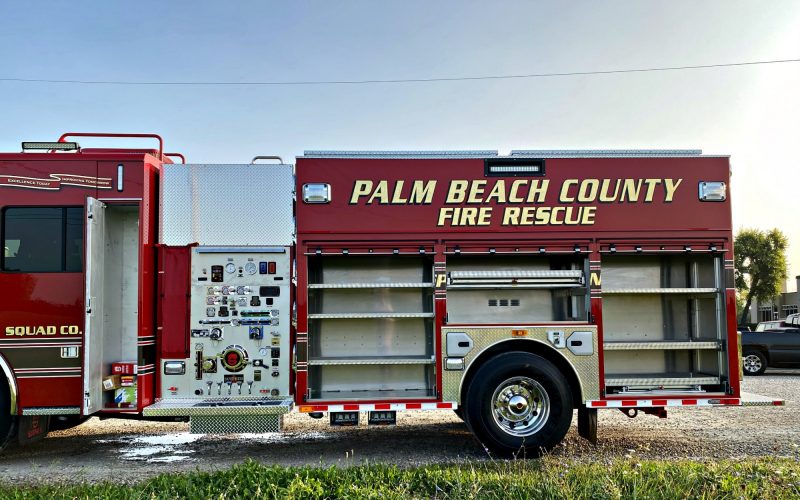

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Compartment Doors
- Over 495 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: Modified PA-16, 56/53, Ladder Under Hosebed & Double Hatch, Raise Sides 6”
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade 360 Camera
- FireTech 3-Piece 72” Brow
- FireTech 21” LED Scene Lights
- Whelen Freedom IV 12 LED Lightbar
- Whelen M9V2
