Delivery Date:
11/06/2019
Department Name:
Palm Beach County Fire Rescue
Department City / State:
West Palm Beach, FL

Sutphen Corporation – HS #6397-6400

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 208”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 34’

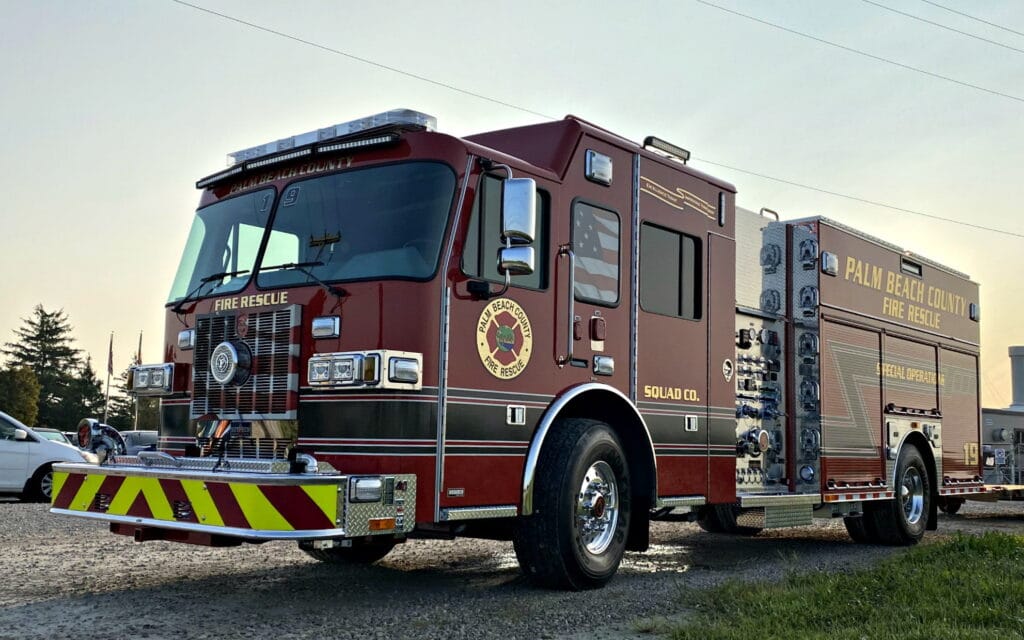

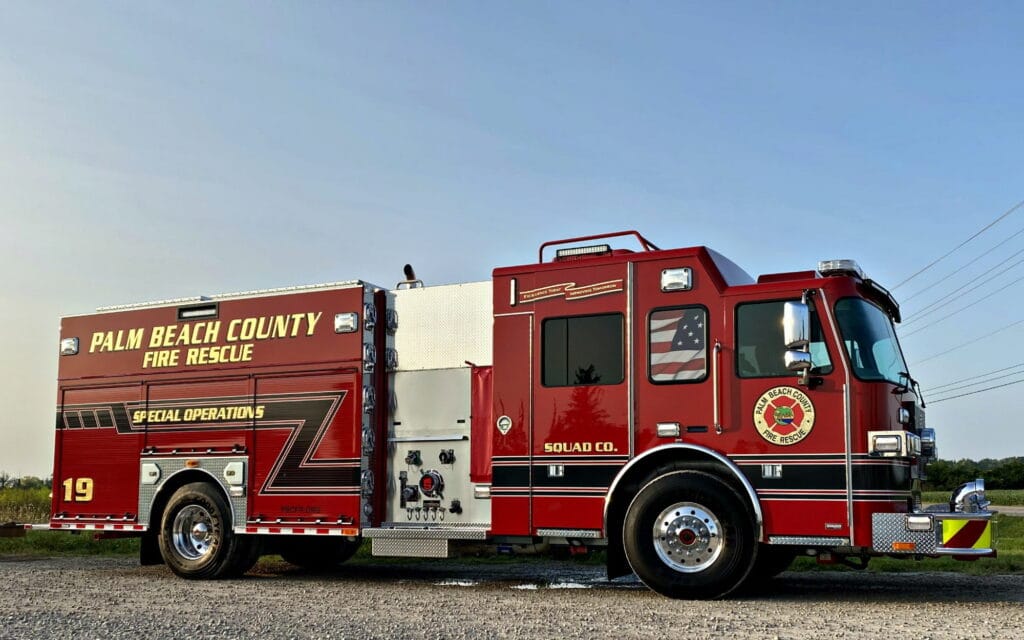

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

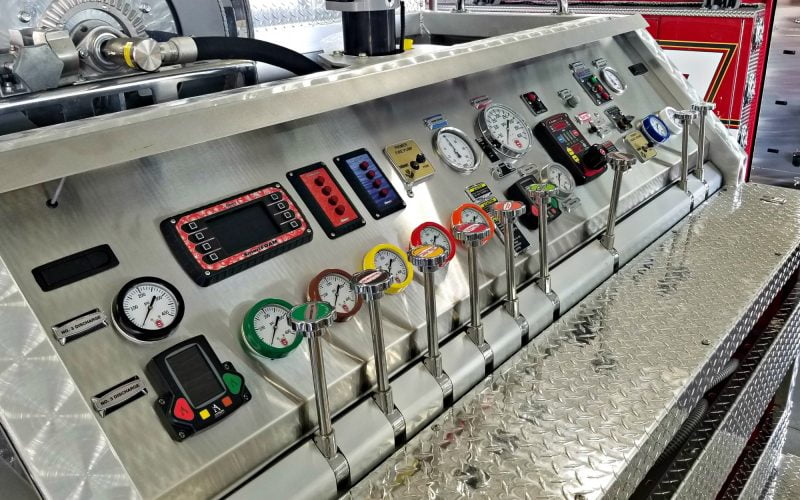

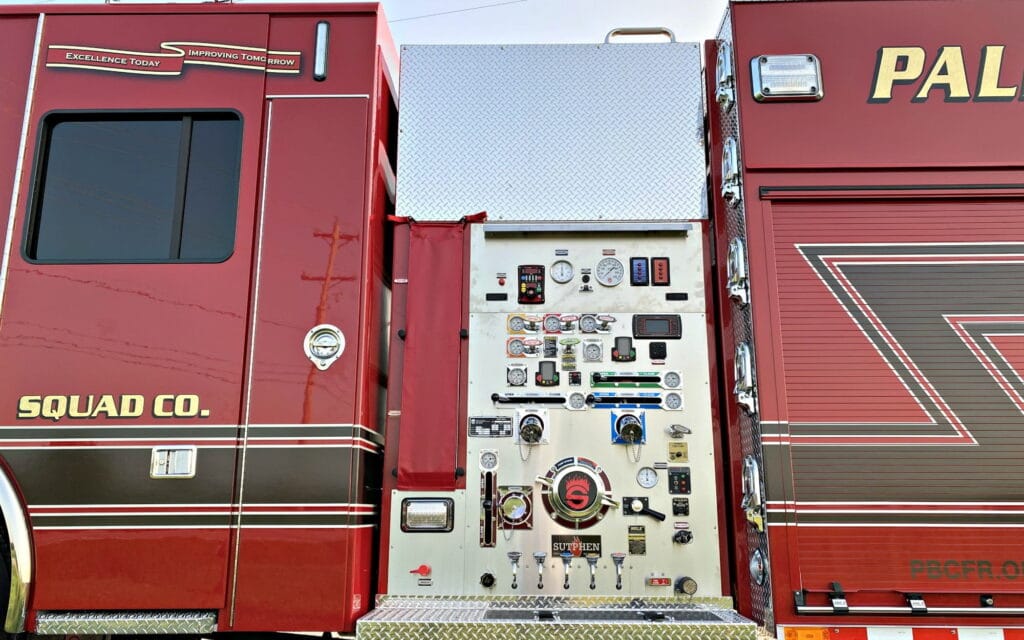

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Hale Smartfoam 5.0
  • Speedlays: (2) 2” with 1 ½” Swivel

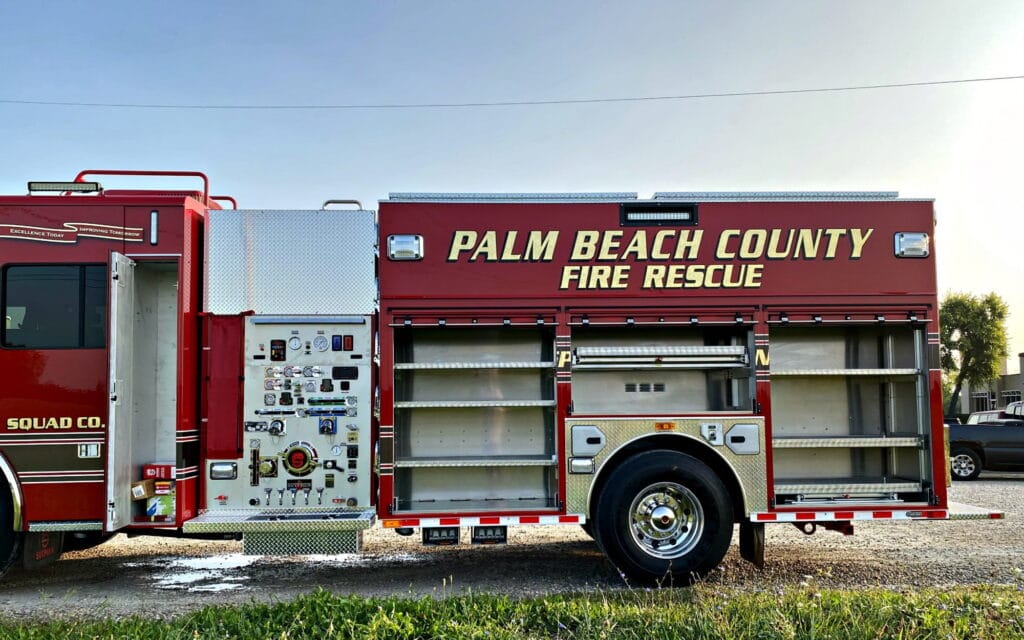

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors

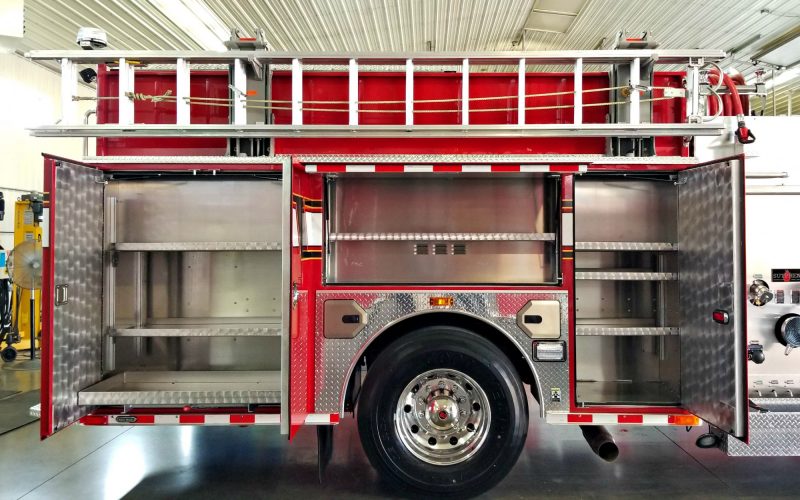

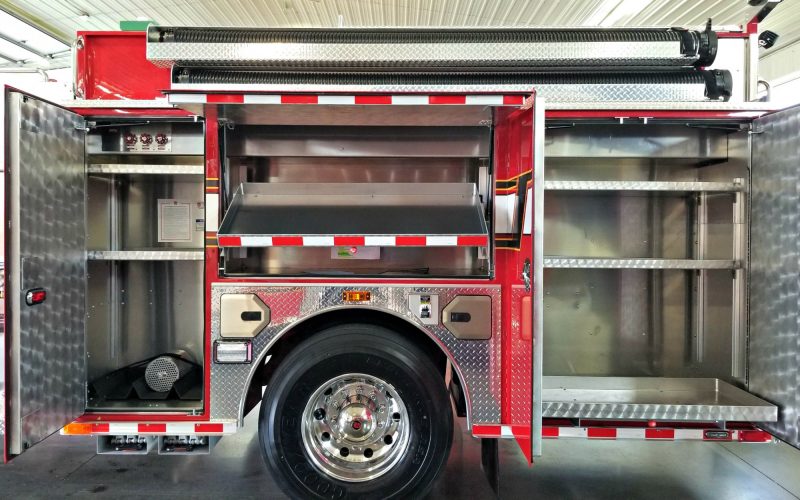

  • 241 cu. ft. Total Compartment Space

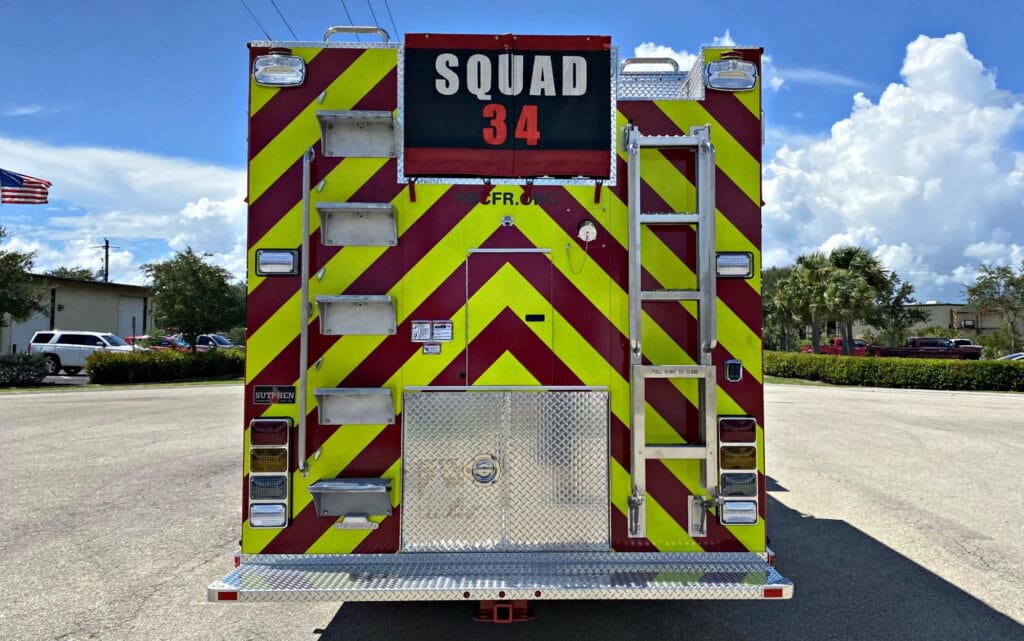

  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S4 – Alum 31/53 Electric Ladder Rack

ADDITIONAL EQUIPMENT:

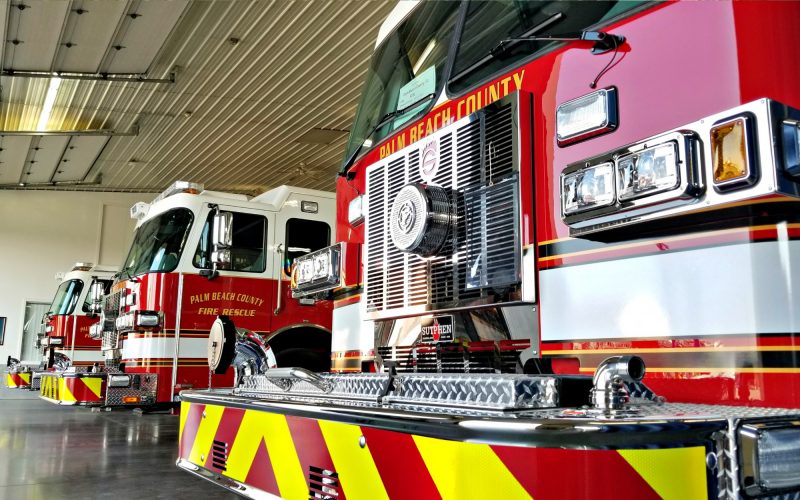

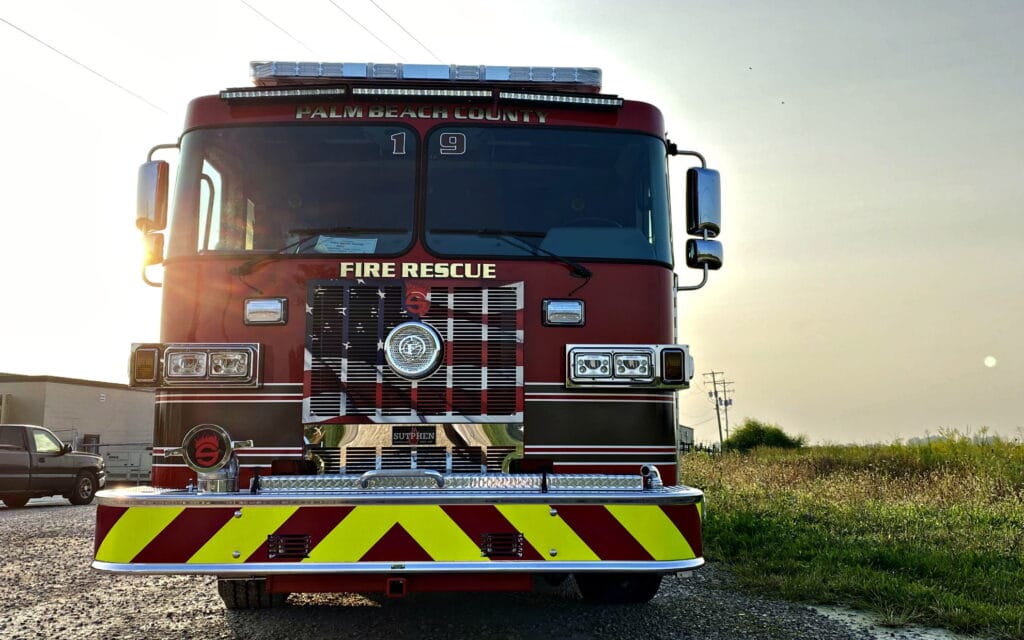

  • 24” Polished Stainless Steel Bumper Extension
  • Rear Vision Camera
  • Federal Q2B Siren, Grille Mount
  • Folding Ladder/(3) Pike Pole Storage Compartment
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Whelen Freedom IV (12) LED Lightbar
  • Whelen PFH2 12V LED Brow
  • Whelen PFH2 12V LED Teles
  • Whelen M6V2C Combo Lights
  • Rigid D2 LEDs
  • GoLight
