Delivery Date:
07/19/2017
Department Name:
Gwinnett CO. Fire and Rescue
Department City / State:
Lawrenceville, GA

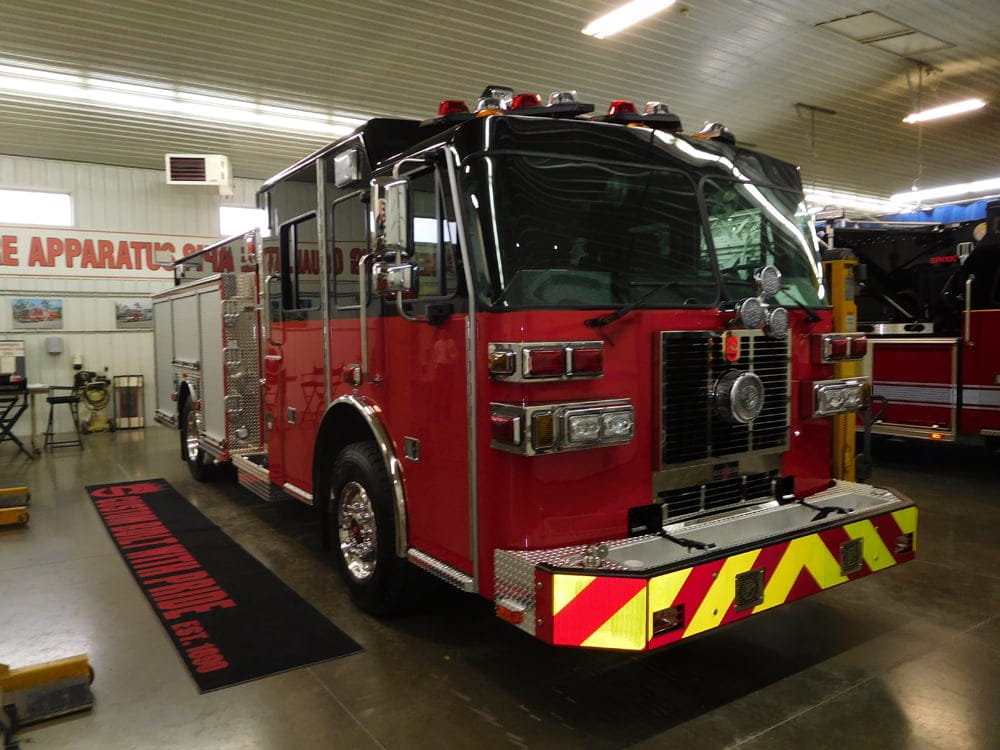

Custom Pumper – PA-12 Body (HS-5893)

WHEEL BASE: 199”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 393”

CHASSIS: Sutphen 73” cab with half 10” raised roof

  • Four-door, five-person cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, HP 500
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

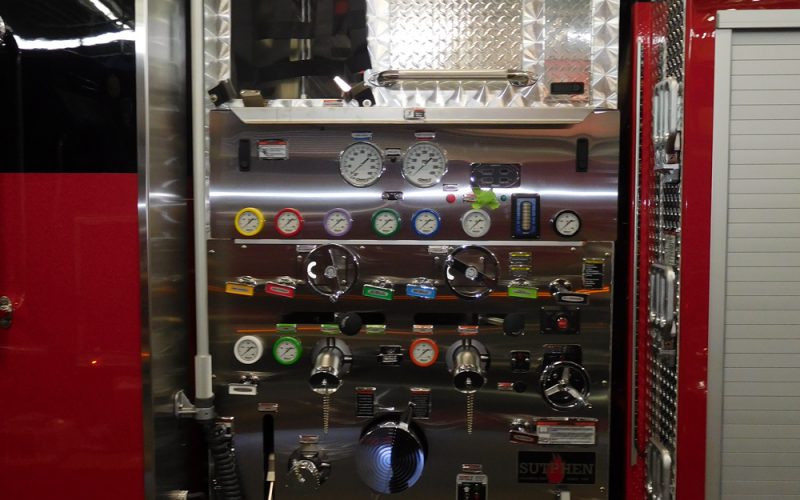

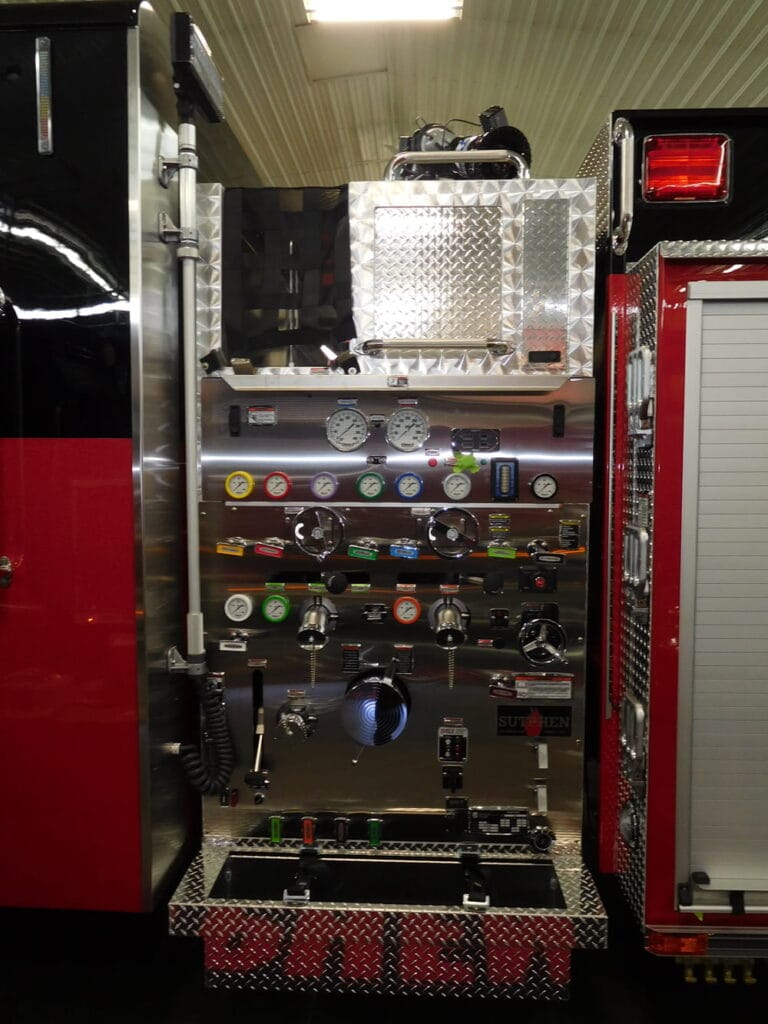

PUMP: Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2 ½”Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 4” Deck Gun
  • 750-Gallon Water Tank

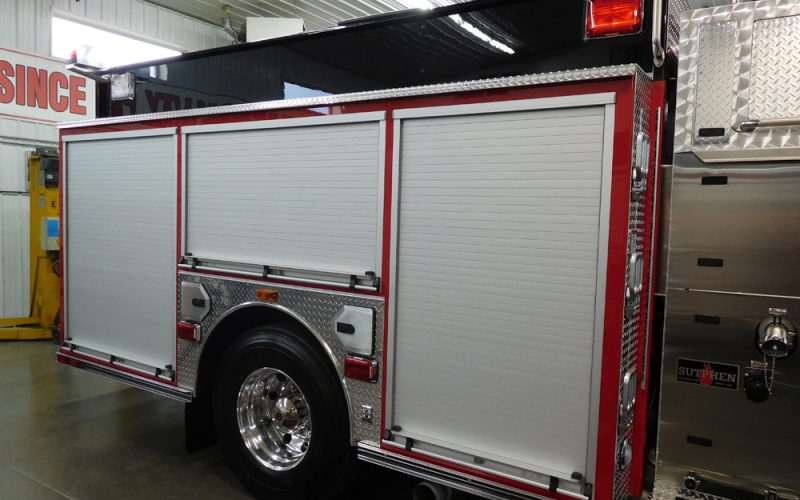

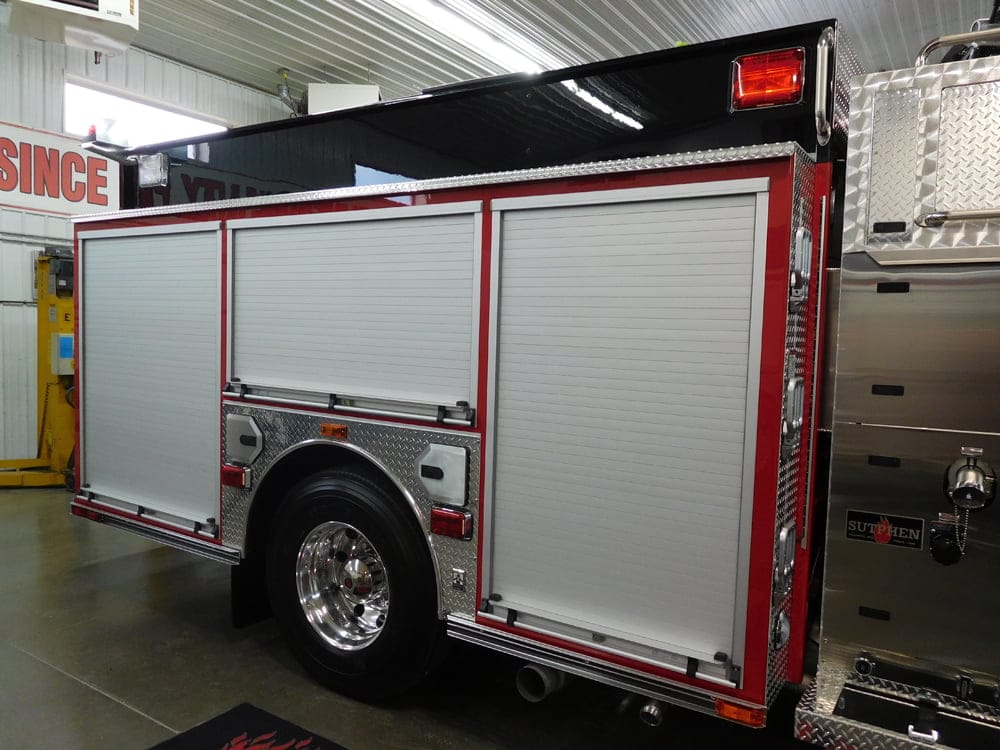

BODY: Sutphen

  • Aluminum
  • ROM Roll-up doors
  • 236 cu. ft. Total Compartment Space
  • Fully Enclosed Ladder Chute

OPTIONAL EQUIPMENT:

  • Federal Signal, Read/Officer Side Camera System
  • 18” bumper
  • Federal Q2B
  • Warning Light, Roto-Ray
  • ‘D’ Ring Handle on Ladder Chute Door
