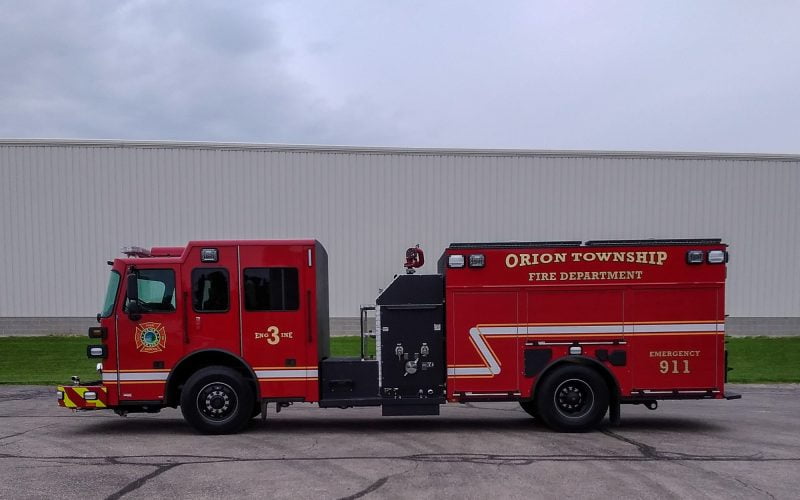

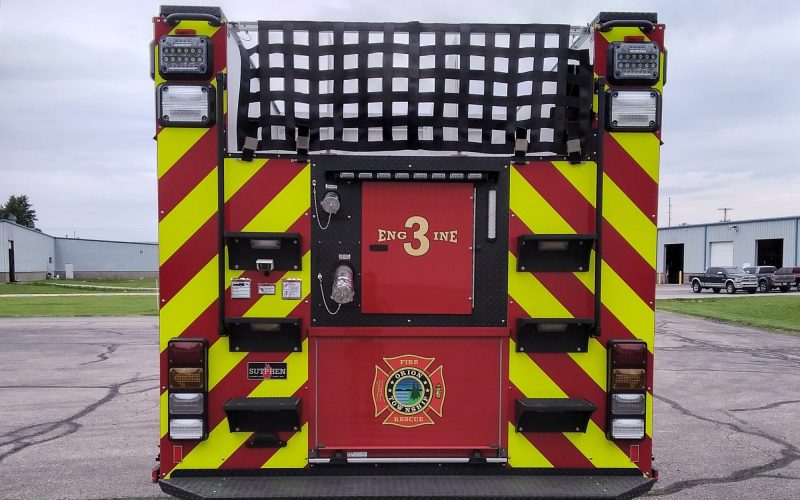

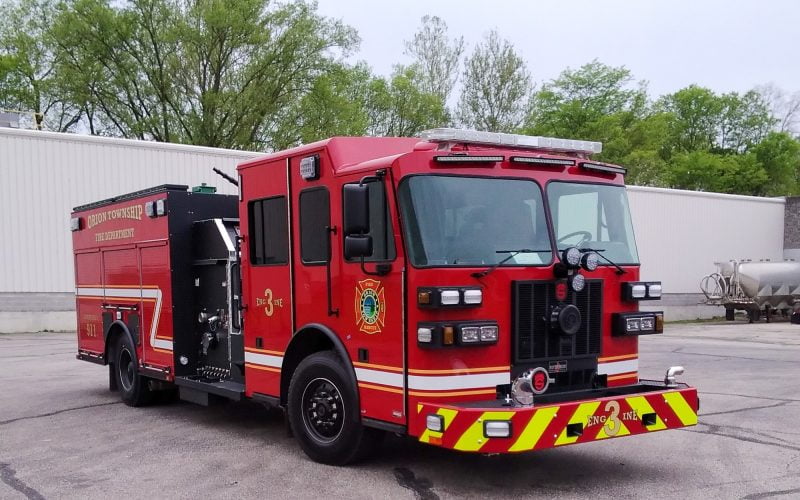

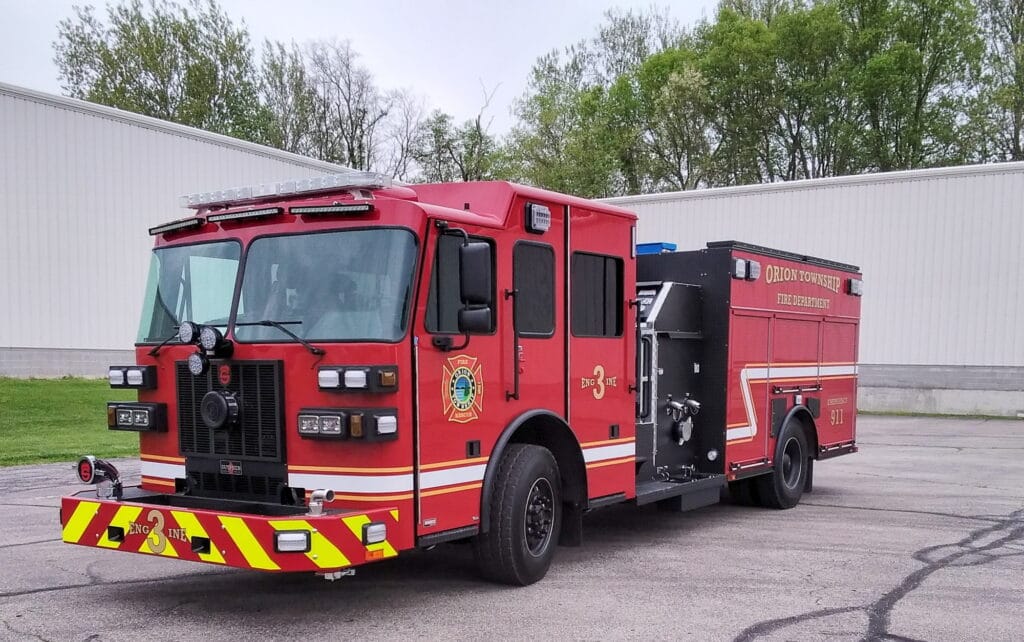

Delivery Date:
05/11/2022
Department Name:
Orion Township Fire Department
Department City / State:
Lake Orion, MI
Truck Type:
Sutphen Corporation – HS #7052
Dealer – Apollo Fire Equipment Company
WHEELBASE: 215”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 34’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivels
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Aluminum 40/51 Ladders through Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Painted Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Safety Vision SV-CLCD0-70
- Intercom System: Firecom 5100D, Single Radio, 5-Position
- Whelen Freedom LED Lightbar
- Hi-Viz 72” Brow Light
- FireTech FT-MB2.36
- Whelen LED Traffic Advisor
