Delivery Date:
04/01/2020
Department Name:

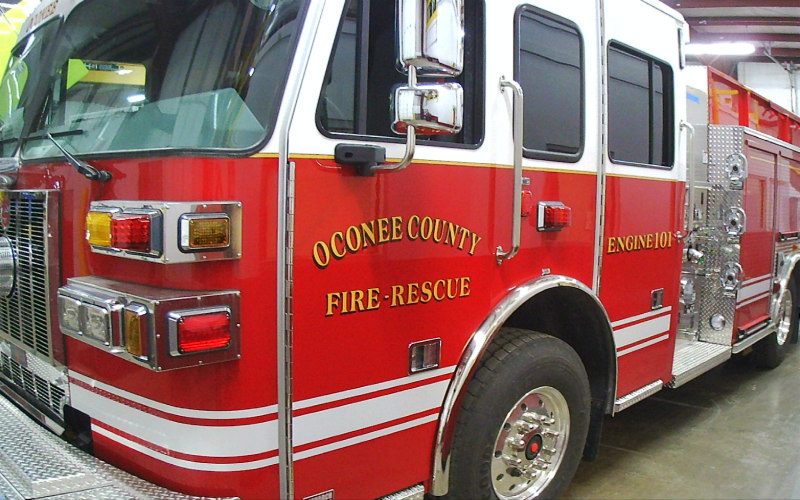

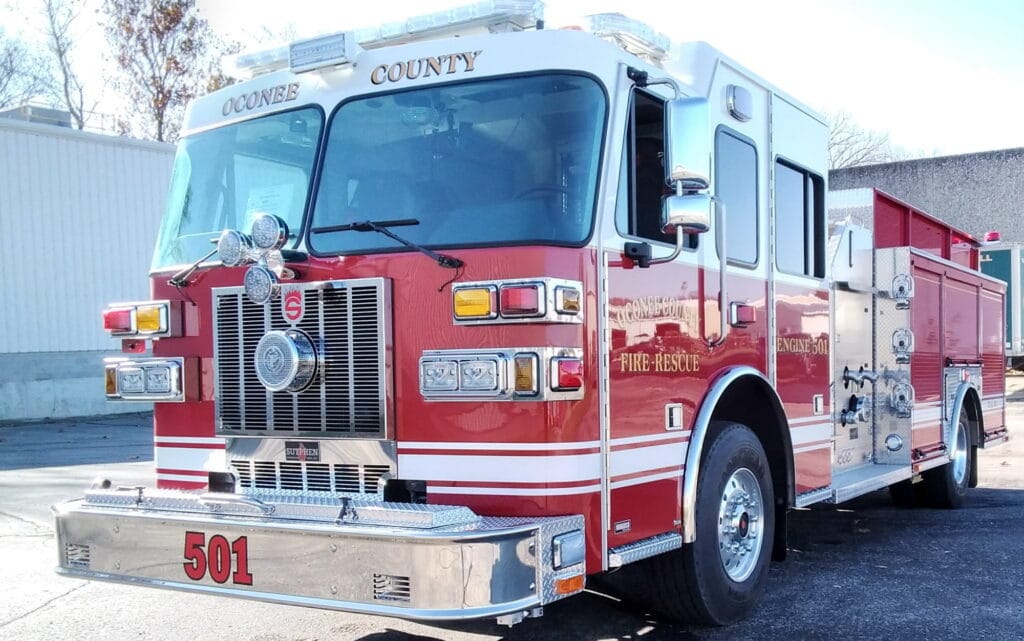

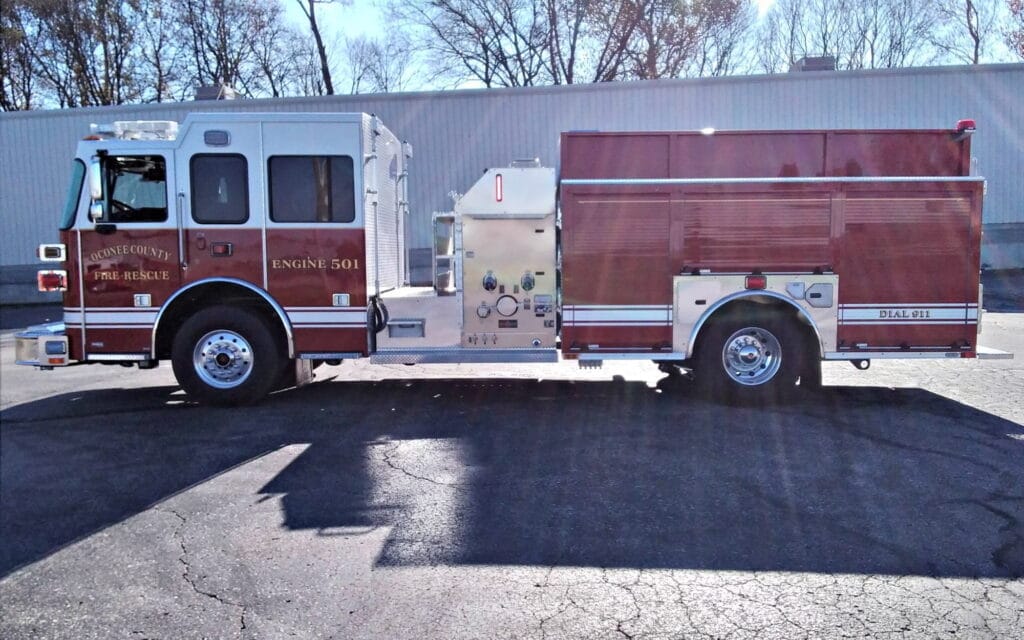

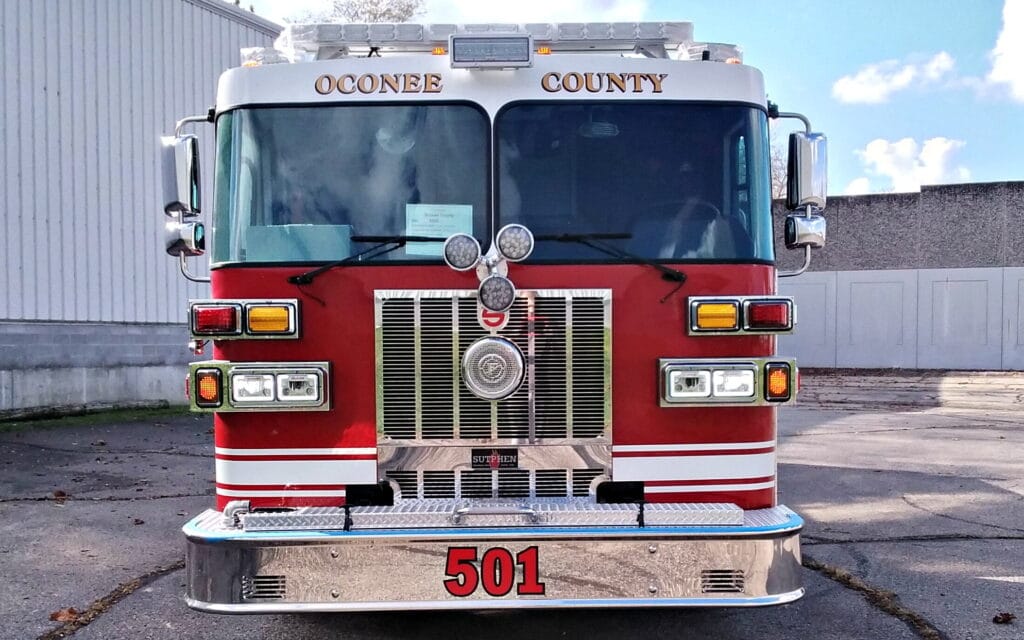

Oconee County Fire Rescue
Department City / State:
Watkinsville, GA
Truck Type:
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ –10”
TRAVEL LENGTH: 31’ – 6”

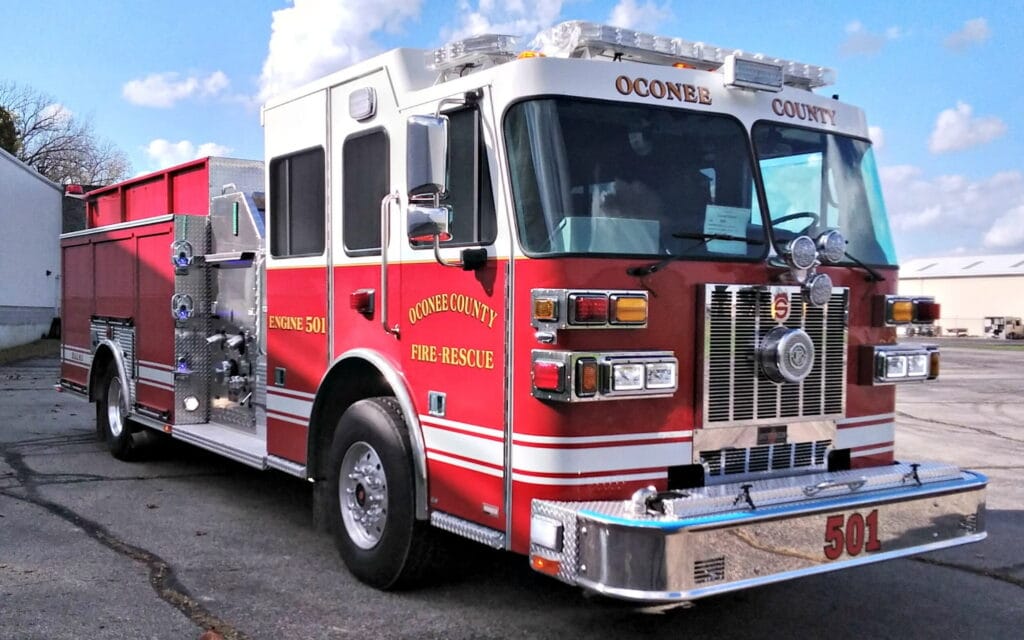

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 15” raised roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

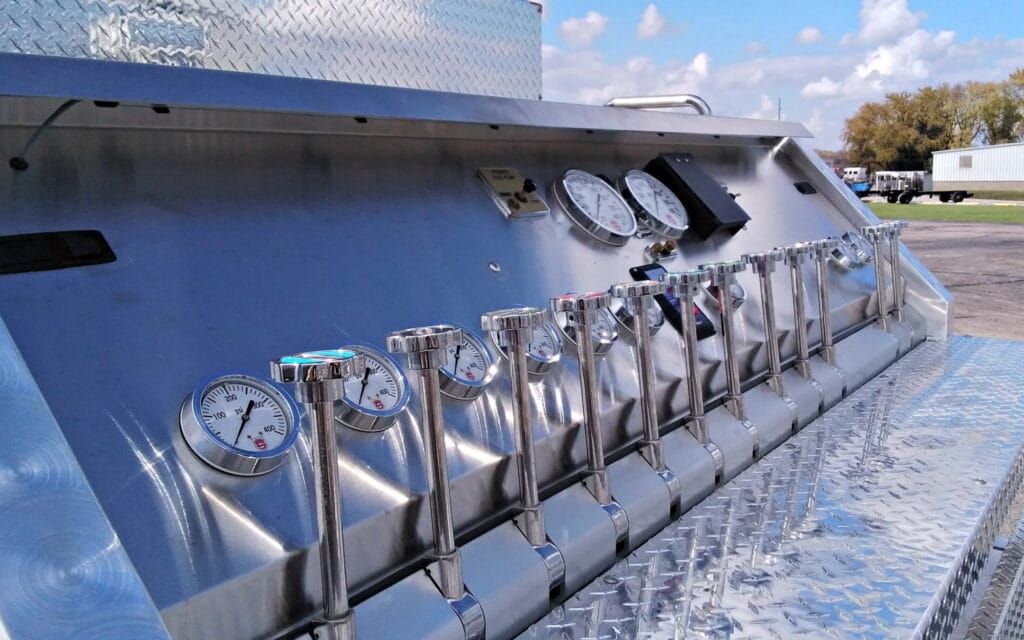

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- ROM Roll-up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute: Enclosed
- Body: G9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel bumper
- Federal Q2B Siren, Grille Mount
- Back-up Camera
- Air Bottle Compartments: 4
- FRC Spectra Brow Light
- Whelen Freedom IV 72” LED Lightbar
- Whelen M9 Scene Lights
