Delivery Date:
07/22/2021
Department Name:
Northville Fire Department
Department City / State:
Northville, NY

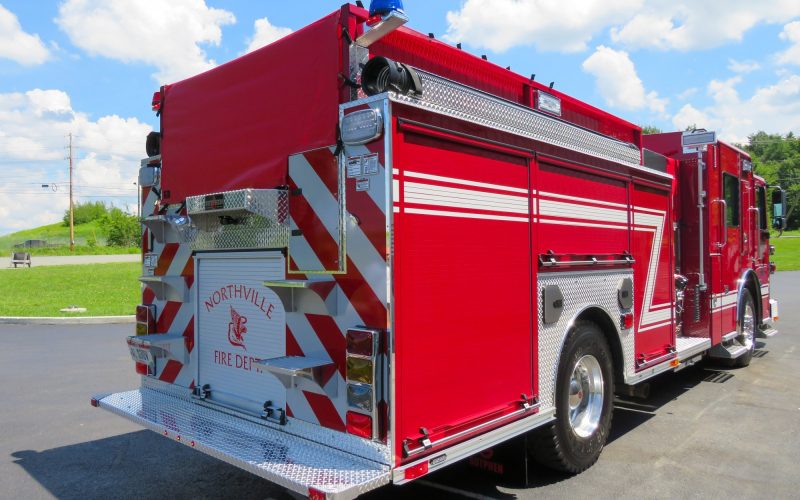

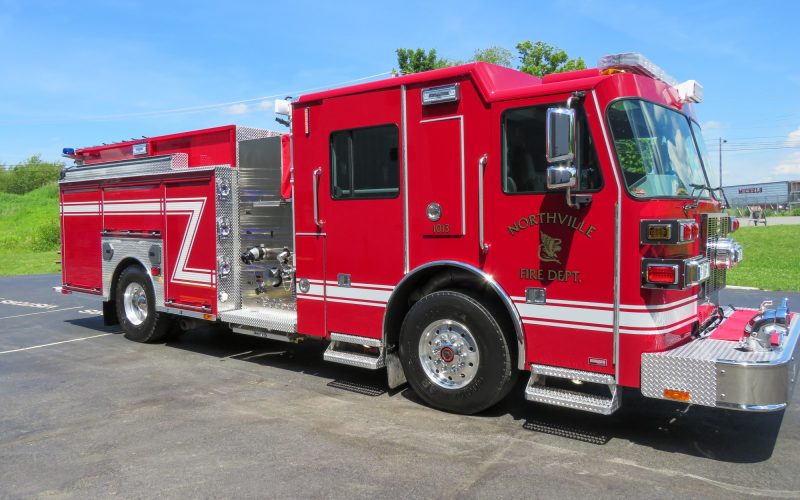

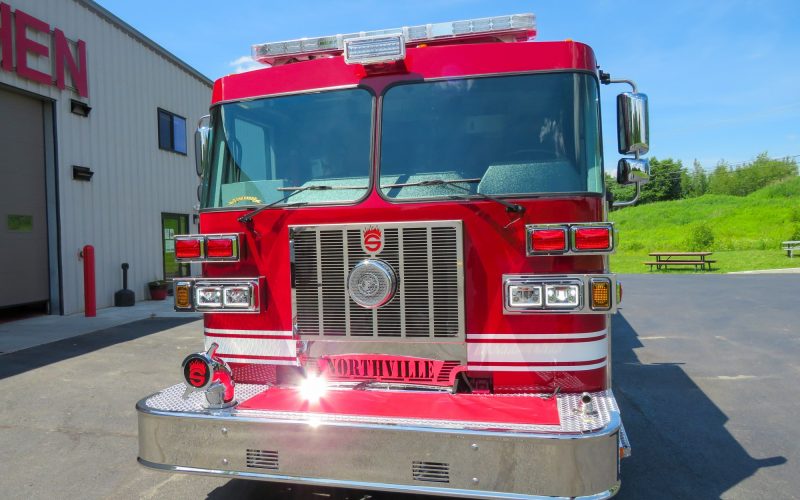

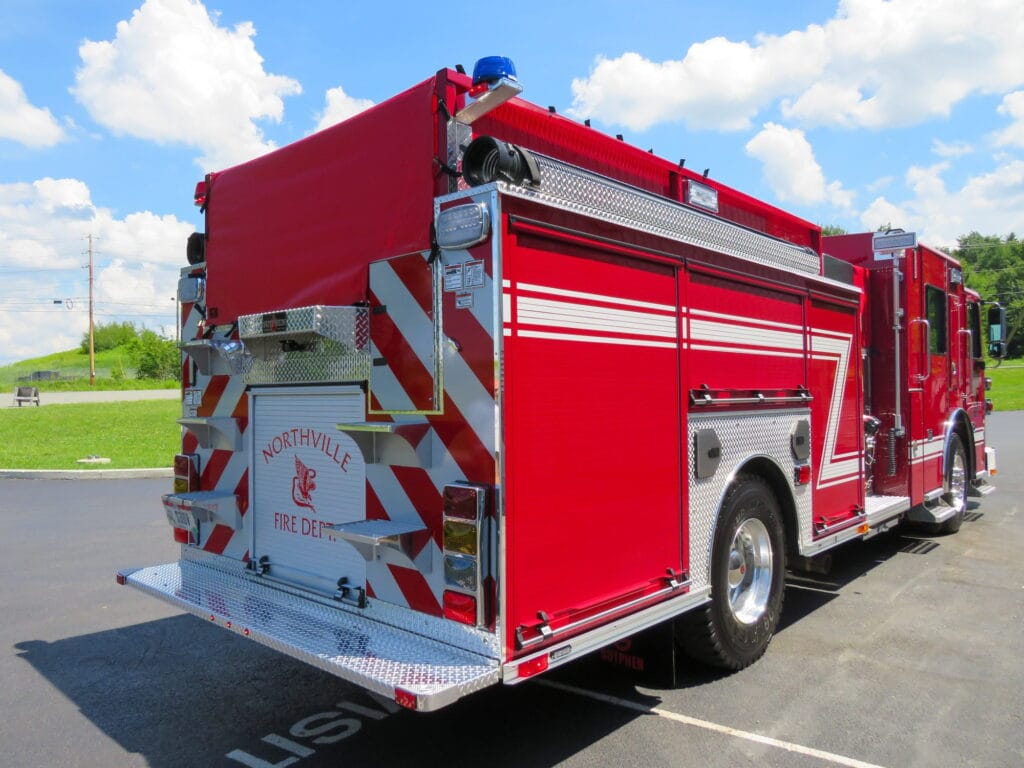

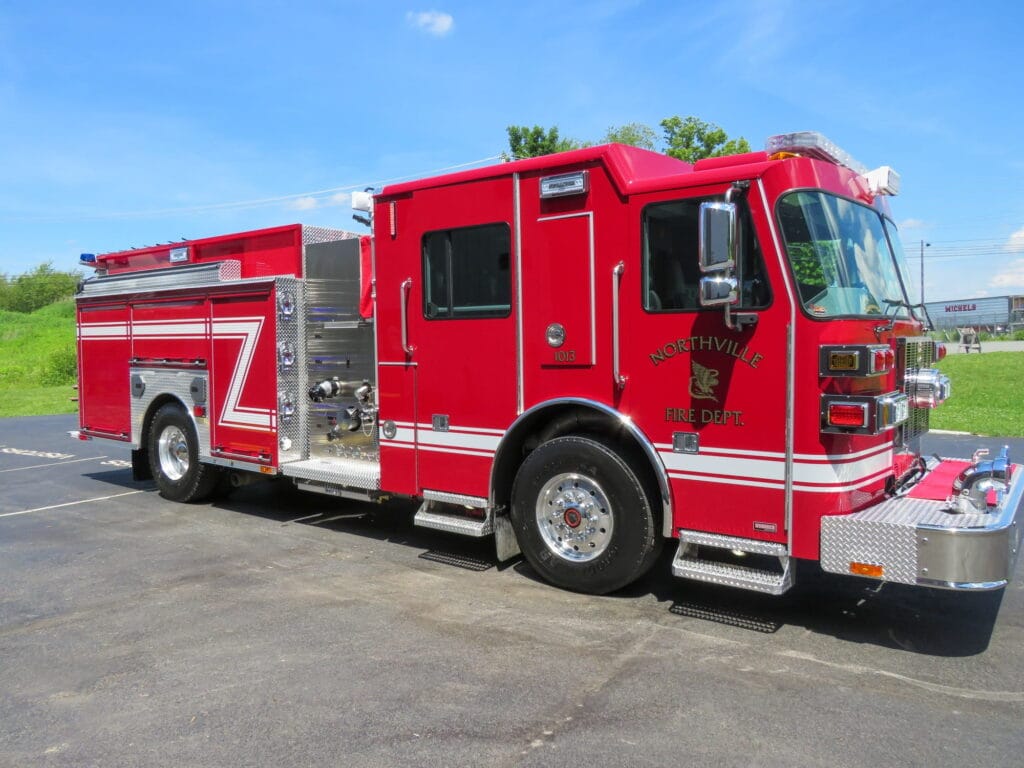

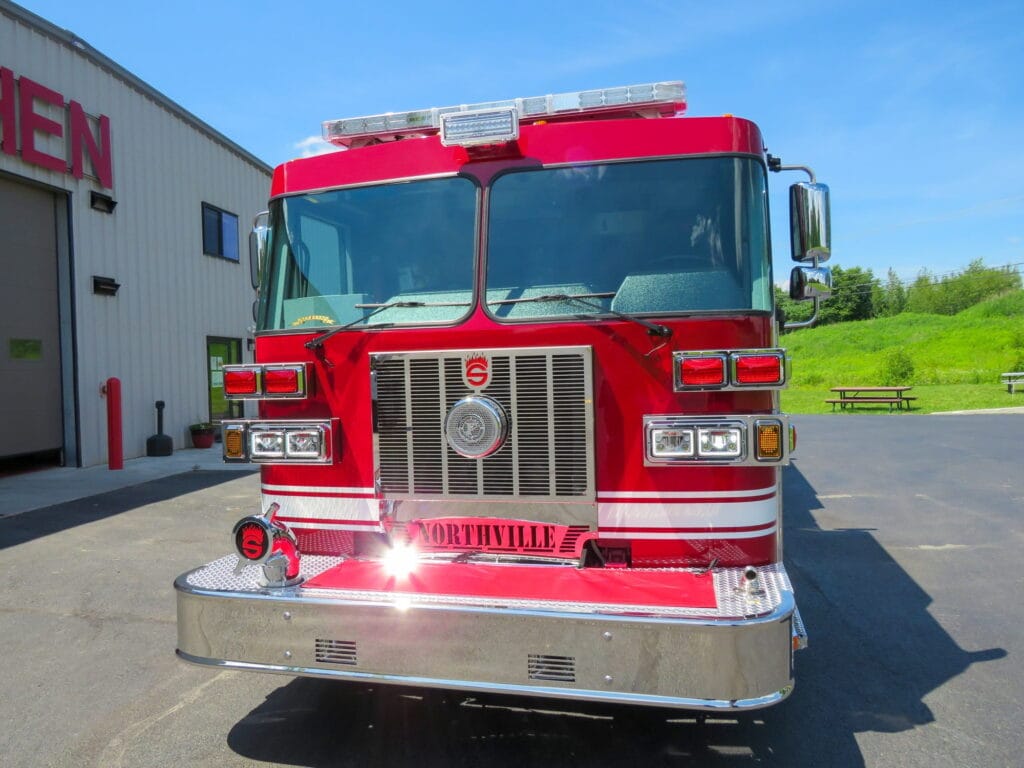

Truck Type:
Sutphen Corporation – HS #6867
Dealer – Vander Molen Fire Apparatus
WHEELBASE: 199”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 8 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” w/ 4” Outlet Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- Monitor: Akron 3423 Apollo
- 1,000-Gallon Water Tank
BODY: Sutphen
- Amdor Roll-Up Compartment Doors
- Over 240 cu. ft. Total Compartment Space
- Alco-Lite Custom Ladder Compliment: (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: S2 – Aluminum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Whelen 72” Freedom Lightbar
- Whelen L31 Beacon
- FR Spectra Brow Light
- FRC Spectra Scene Lights
