Delivery Date:
03/30/2022
Department Name:

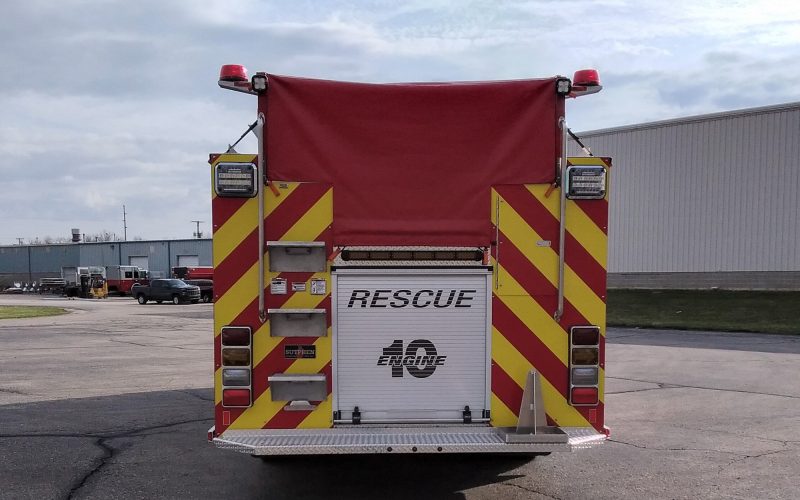

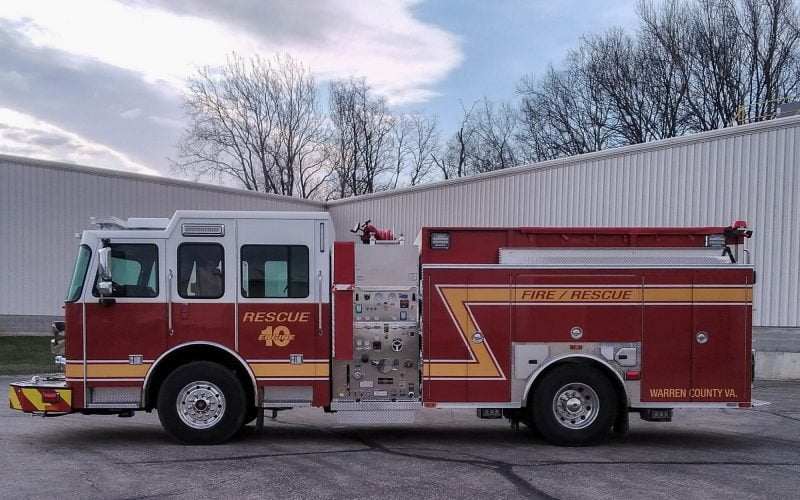

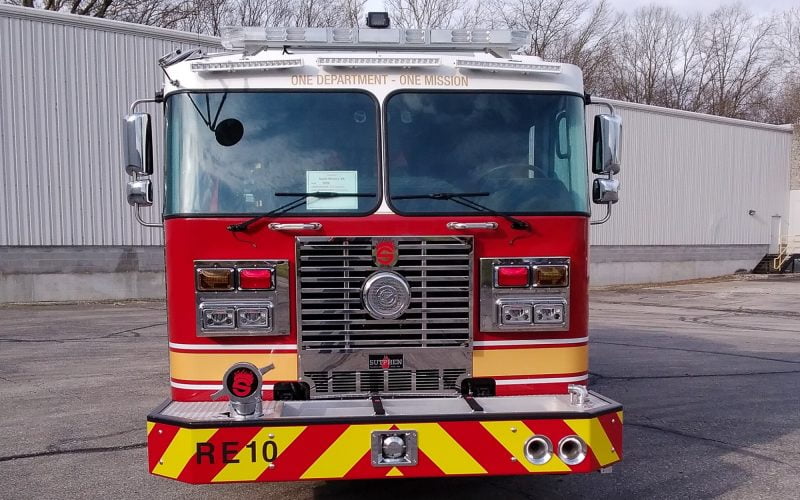

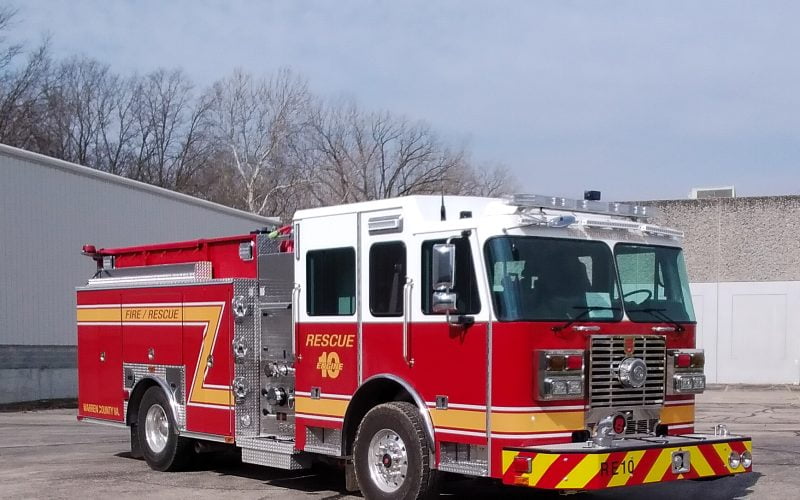

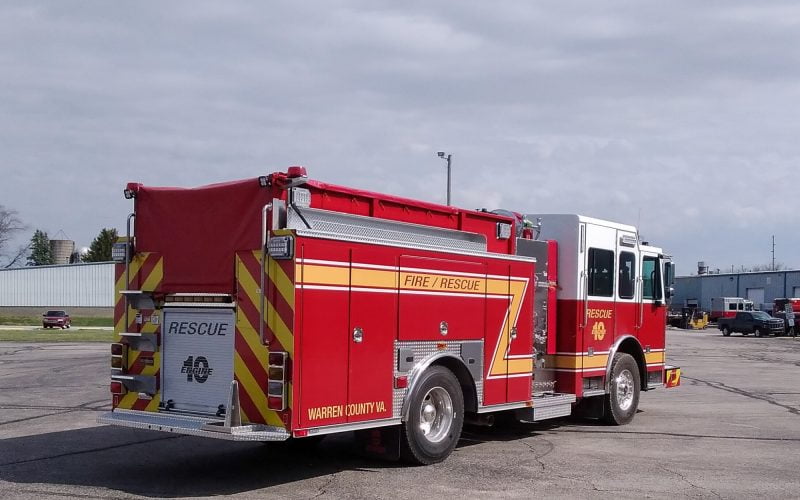

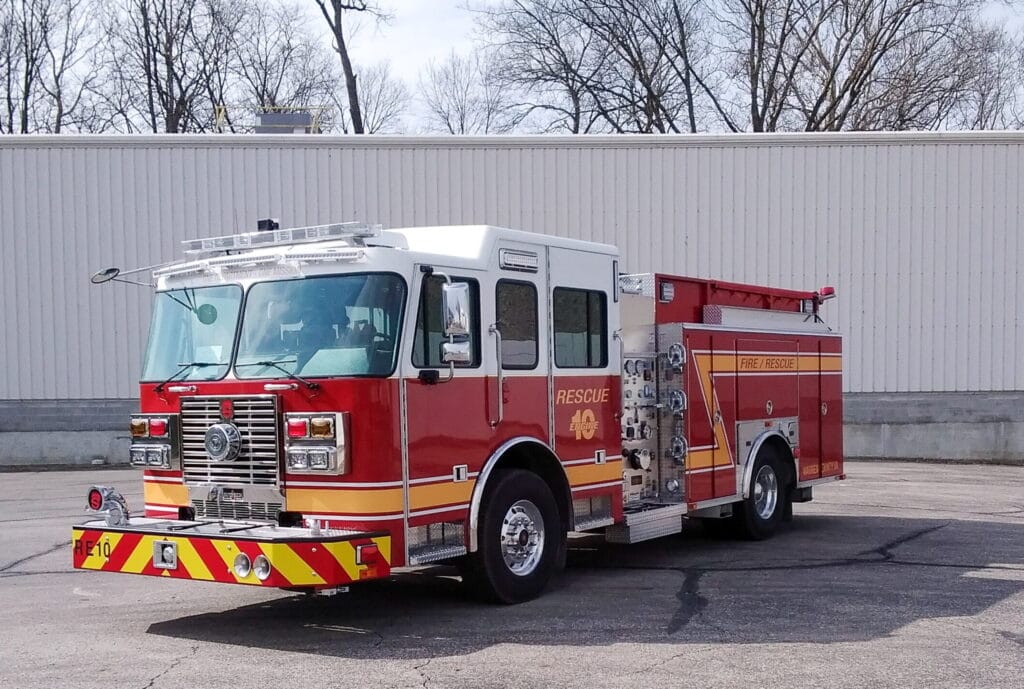

North Warren Volunteer Fire and Rescue
Department City / State:
Front Royal, VA
Truck Type:
Sutphen Corporation – HS #6986
Dealer – Interstate Rescue
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Single Frame Rails (50K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000R w/ Retarder
PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Elkhart
BODY: Sutphen
- 3/16” Extruded Aluminum
- Mixed Amdor Roll-up and Hinged Compartment Doors
- 222 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ & 585A 10’ Folding
- Ladder Chute w/ Backboard Storage
- Body: G2 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Painted Bumper
- Federal Q2B Siren, Grille Mount
- Inverter: Kussmaul 1500 Auto
- Hi-Viz 72” Brow Light
- Whelen Freedom LED Lightbar
- Whelen LED Traffic Advisor
- FireTech Guardian Elite
- FireTech LED Work Lights
