Delivery Date:
08/19/2020
Department Name:
North Ridgeville Fire Department
Department City / State:
North Ridgeville, OH

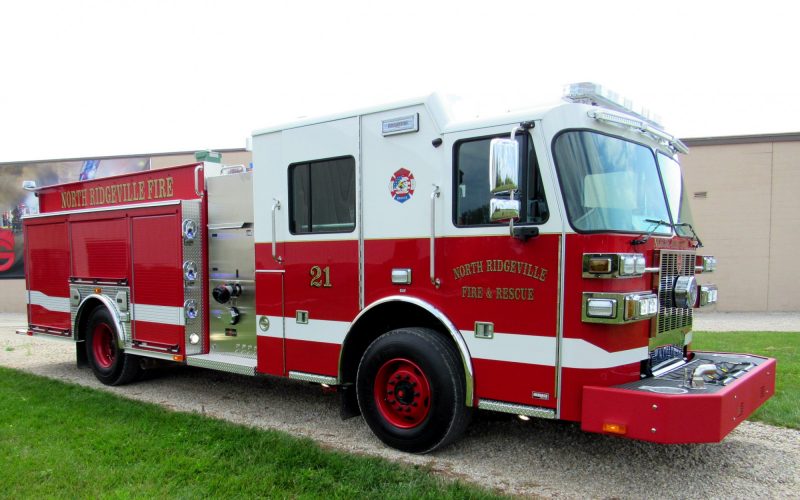

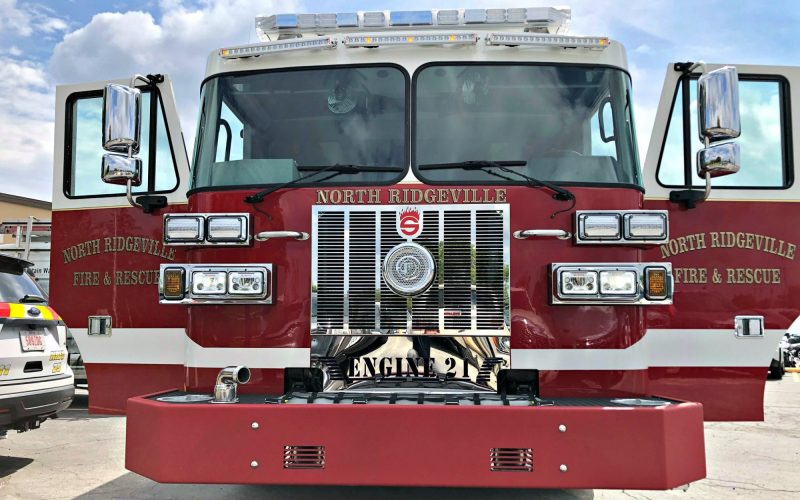

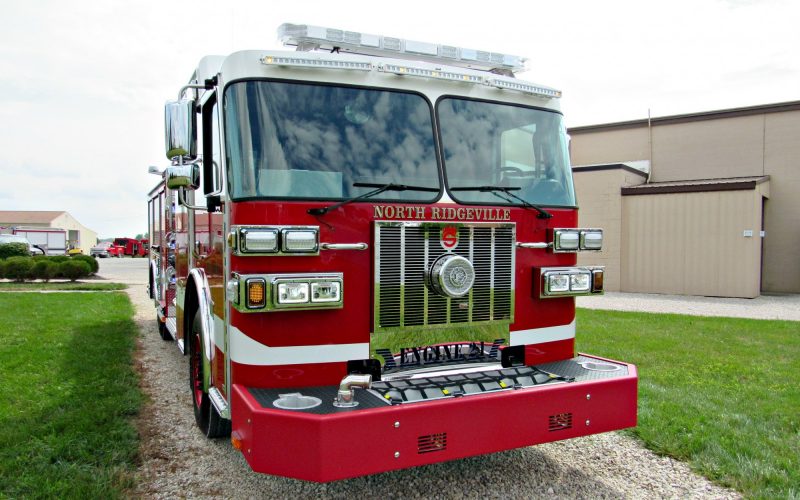

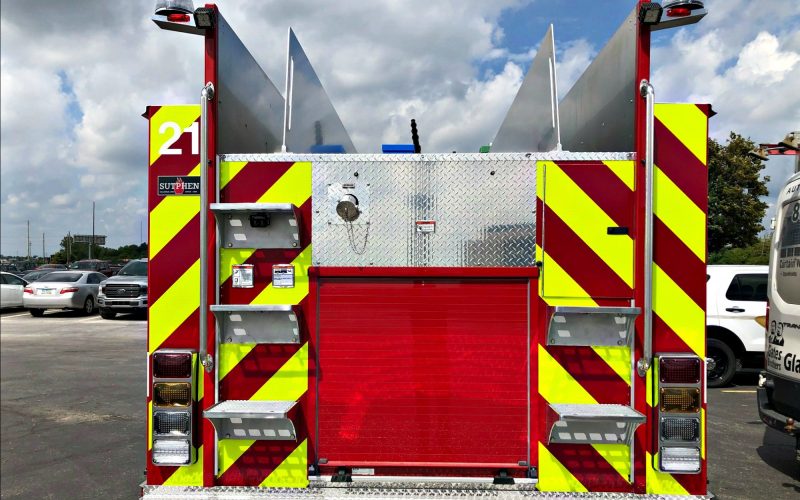

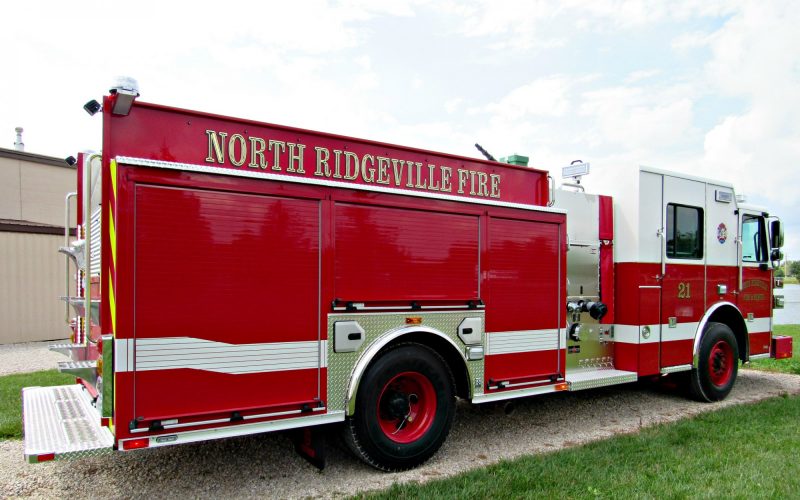

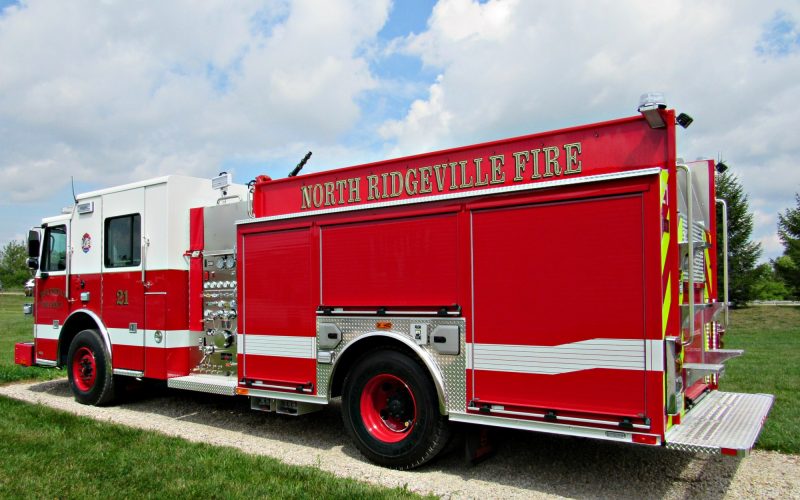

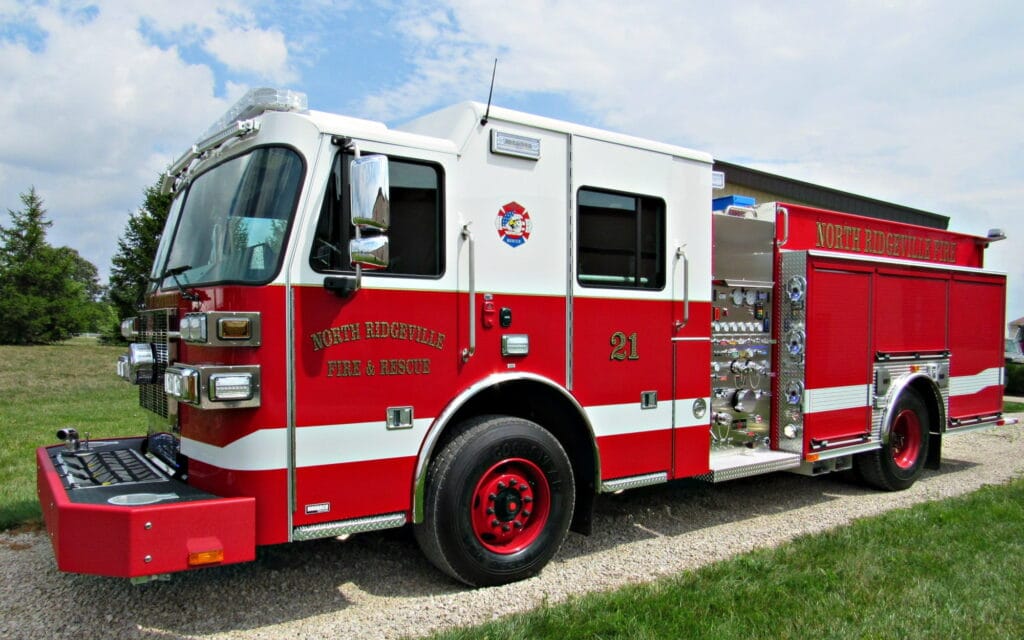

Truck Type:
Sutphen Corporation – HS #6600
Dealer – Herb Fire
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 33’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Single Rails, Domex, Single Axle (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
- 750 -Gallon Water Tank
- 20-Gallon Foam Tank
- Foam Suppply System, Akron with Flush
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute w/ Backboard Storage
- Body: S2-Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- Whelen Freedom IV 72” Lightbar
- Whelen 600 Red LED
- Firetech 72” 3-Piece Brow
- FR Spectra 12V Tele LED
- FR Spectra 12V LED
- Rigid D2 Work Lights
