Delivery Date:
02/03/2023
Department Name:

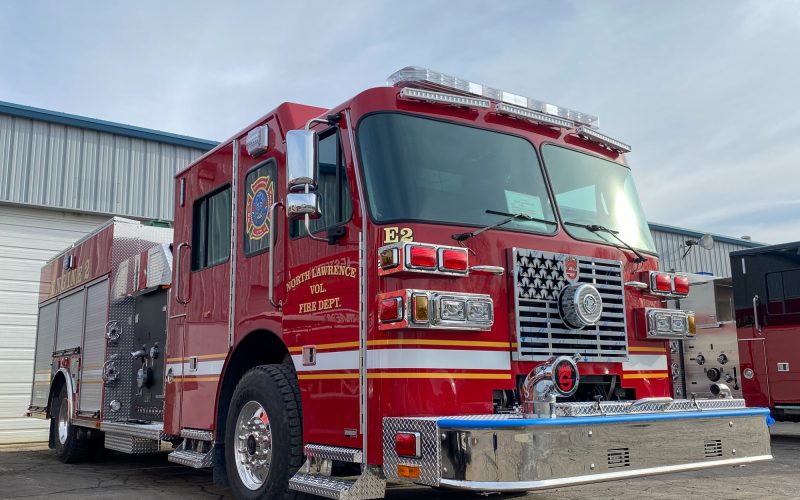

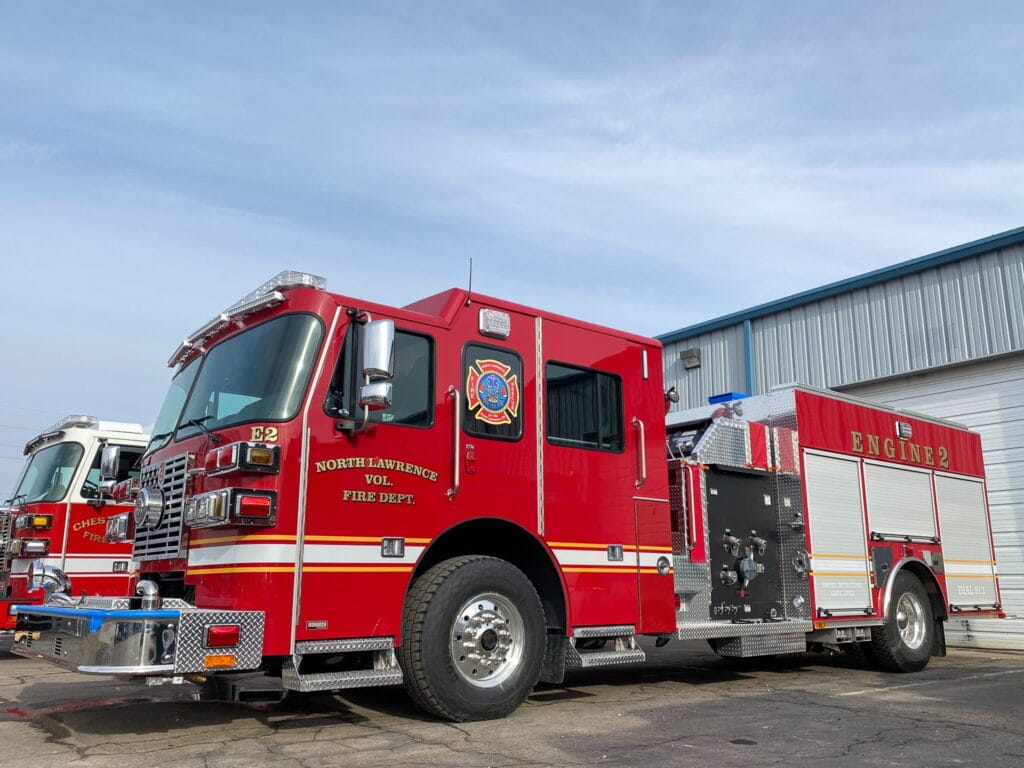

North Lawrence Fire Department
Department City / State:
North Lawrence, OH
Truck Type:
Sutphen Corporation – HS #7163
Dealer – Herb Fire
WHEELBASE: 226”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 35′ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Delco-Remy 430 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- Crosslays: (1) 2 ½” w/ 2 ½” Swivel
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Alco-Lite Ladder Package: PEL-24, 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- 294 cu. ft. Total Compartment Space
- Body: G9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Intercom: Firecom 5100D, Single Radio, 6 Position
- Roto-Ray Warning Light
- Whelen Freedom LED Lightbar
- Hi-Viz 72” Brow Light
- FireTech Guardian Elite Scene Light
- FireTech Telescopic Lights
