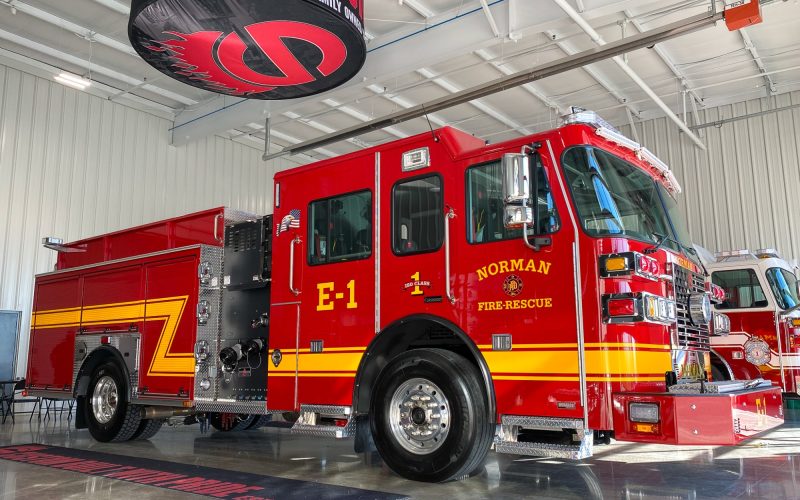

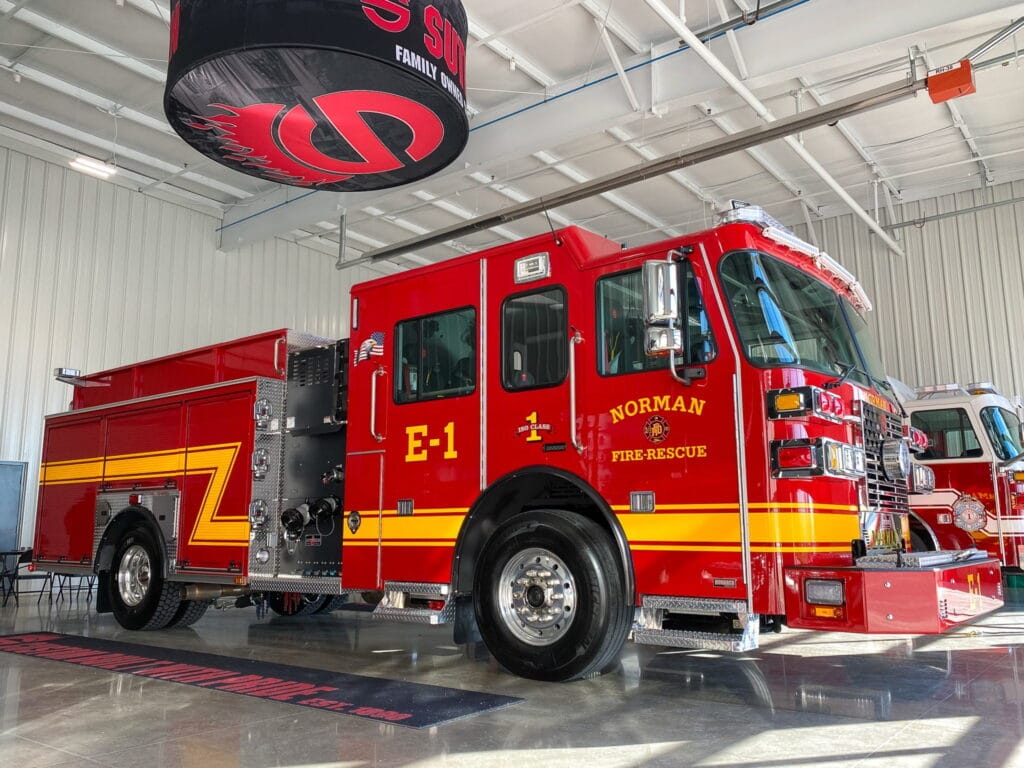

Delivery Date:
11/08/2023
Department Name:
Norman Fire Department
Department City / State:
Norman, OK

Dealer –  Heartland Fire Trucks

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 32′ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Waterous

  • CS-1250 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Sec & PRL-14 14’ Roof & 10’ Folding
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Generator: Onan 6KW HYD
  • Camera System: VMUX, Rear
  • Intercom System: SetCom LiberatorMax, Single Radio, 5 Position
  • Remote Control Go-Light (2)
  • FireTech 3-Piece 72” LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen PFH1 LED Scene Lights
  • Whelen LED Traffic Advisor
