Delivery Date:
06/15/2022
Department Name:
Newton County Fire Department
Department City / State:
Newton, GA

Sutphen Corporation – HS #6984

Dealer – Williams Fire Apparatus

WHEELBASE: 199 – 0 ½”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 9 ½”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

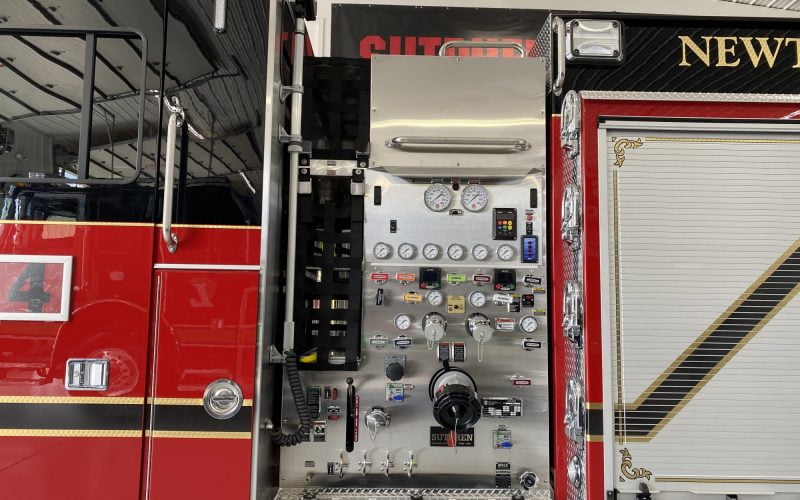

PUMP:                  Hale

  • QMAX-1500 GPM Single Stage Pump (XS)
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” w/ Liftout Poly Trays & (1) 2 ½ Crosslay
  • 750-Gallon Water Tank

BODY:                   Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-up Compartment Doors, Satin Finish
  • Over 210 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: Pel-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: PA-12 Res 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Painted
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC. Inview Trueview, Two cameras (Wired)
  • Whelen Freedom IV (12) 44 ½” LED Lightbar
  • Whelen TIR6 LED Traffic Advisor
  • FR Spectra 12V Brow
  • FR Spetra 900 12V Scene
  • (5) Whelen 2G LED Hosebed Lights
