Delivery Date:
09/18/2024
Department Name:

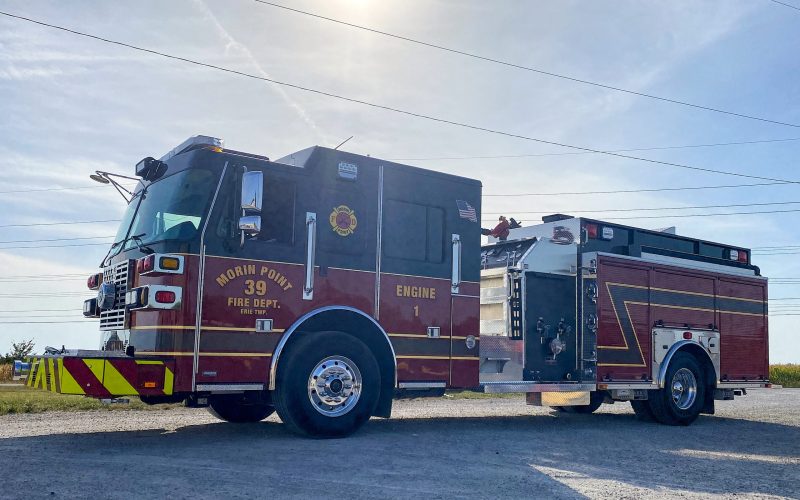

Morin Point Fire Department
Department City / State:
Erie Township, MI

Dealer – Apollo Fire Apparatus Sales and Service

WHEELBASE: 226”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 35’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs w/ (4) Leafs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right w/ 4” Outlet, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale Smartfoam 2.1A

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • AMDOR Roll-Up Compartment Doors
  • Over 220 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: G2 – Alum 40/51 Lad Chute

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel, Bumper
  • Camera System: Brigade, Single Camera (Wired)
  • Federal Q2B Siren, Grille Mount
  • Whelen PFH2, LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 Scene Lights
  • Whelen LED Traffic Advisor
