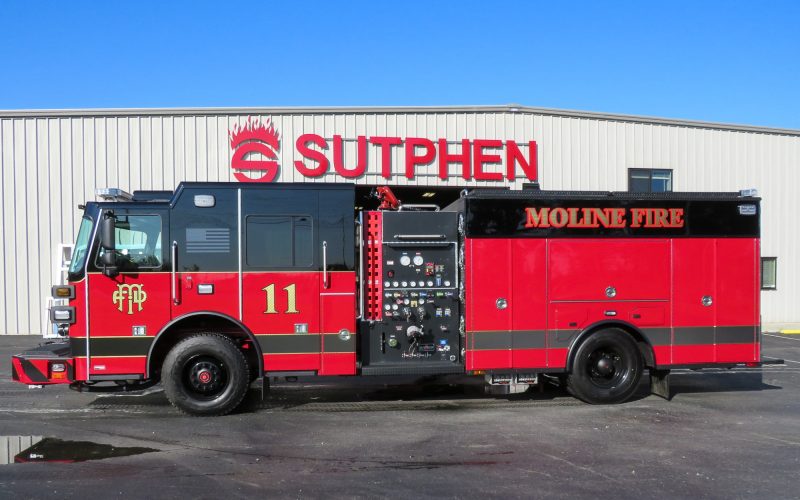

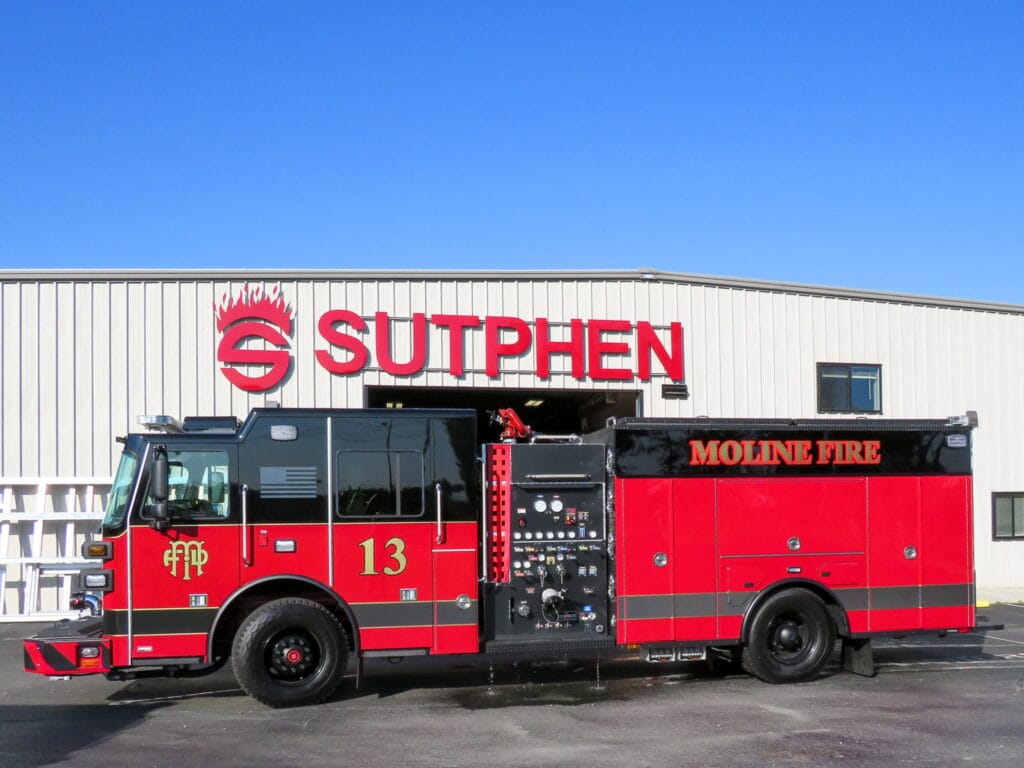

Delivery Date:
09/20/2023
Department Name:
Moline Fire Department
Department City / State:
Moline, IL
Truck Type:
Dealer – Legacy Fire Apparatus
WHEELBASE: 205 ¼”
TRAVEL HEIGHT: 9’ – 9”
TRAVEL LENGTH: 33′ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins X 12, 455 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS4500
PUMP: Hale
- XS-QMAX 1500 GPM, One Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (2) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½” & Speedlays, (2) 2” Swivels & Poly Lift-Out Trays
- 500-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Mixed Hinged and Roll-Up Compartment Doors
- Over 340 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: S9 – Alum 43/53 Ladder Through Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Single Camera
- Inverter: 2KW Legacy
- Whelen Freedom 72” Freedom Lightbar
- FireTech 3PC Brow Light
- Whelen M9 Scene Lights
- Whelen Micro Freedoms
