Delivery Date:
03/24/2022
Department Name:
Mogadore Fire Department
Department City / State:
Mogadore, OH
Truck Type:
Sutphen Corporation – HS #7020
Dealer – Herb Fire
WHEELBASE: 196”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Single Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS 3000

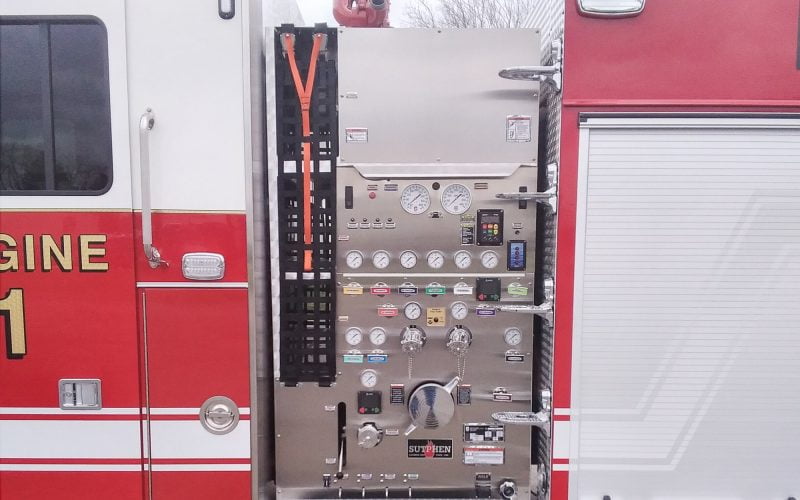

PUMP: Hale
- QMAX-1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Ladder Chute w/ Backboard Storage
- Body: G9 – Aluminum 40/51 Ladders through the Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Whelen Freedom LED Lightbar
- FRC Spectra Brow Light
- Remote Control Go-Light
- Whelen M9V Red/Scene
- Whelen LED Traffic Advisor
