Delivery Date:
03/12/2020
Department Name:
Minster-Jackson Township Fire Department
Department City / State:
Minster, OH
Truck Type:

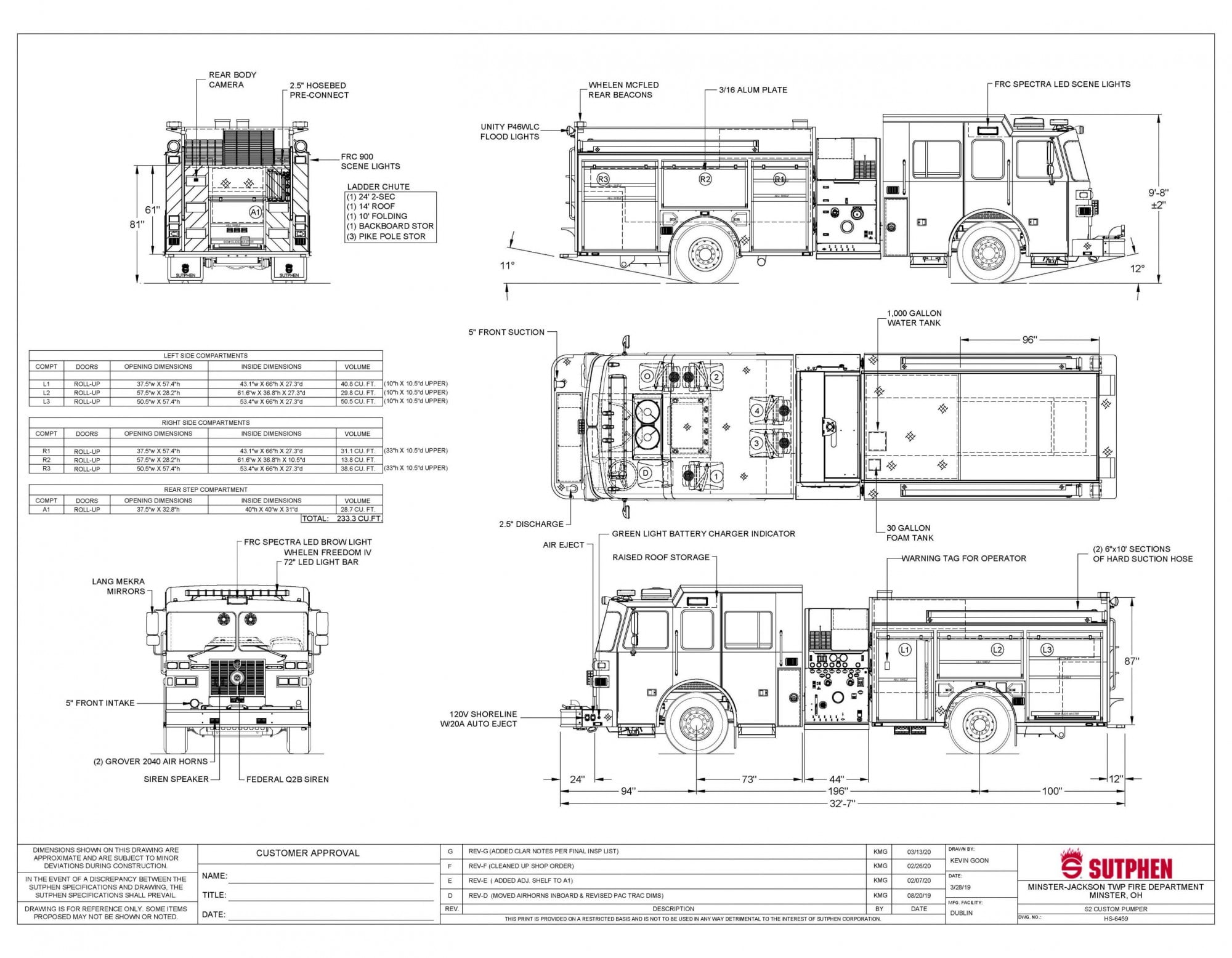

WHEEL BASE: 196”
TRAVEL HEIGHT: 9’ –8”
TRAVEL LENGTH: 32’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof
- Four-Door, SIx-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Right, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Aluminum Plate
- ROM Roll-up Compartment Doors
- 3 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute: Enclosed
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Inview Trueview, Rear View
- Air Bottle Compartments: 4
- FRC Spectra LED Brow Light
- Whelen Freedom IV 72” LED Lightbar
- FRC Spectra LED Scene Lights
- FRC Spectra 900 Scene Lights
