Delivery Date:
05/11/2019
Department Name:
Middletown Division of Fire
Department City / State:
Middletown, OH

Sutphen Corporation – HS #6314-15

Dealer – Heritage Fire Equipment

WHEEL BASE: 173”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 30’ – 1”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

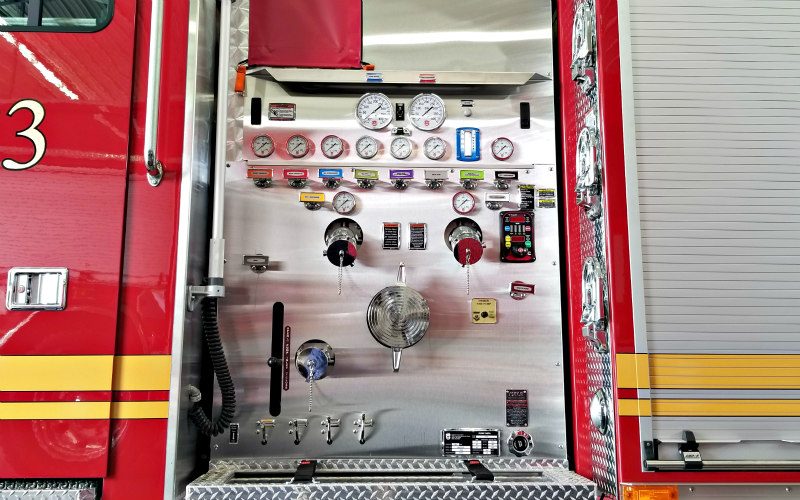

PUMP:                 Hale

  • QFLO-1250 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • Over 228” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren, Flush Grille Mounted
  • 12” Polished Stainless Steel Bumper Extension
  • Whelen Freedom IV (12) LED Lightbar
  • FRC Spectra 12V LED Brow
  • FRC Spectra 12V LED Tele
  • Hannay Booster Reel w/ 200’
  • 7 SCBA Cylinder Storage Tubes
  • Opticom, Tomar 3060, Mounted in Box on Brow
  • Compartment for 3 Pike Poles
