Delivery Date:
04/21/2022
Department Name:
Middlefield Volunteer Fire Department
Department City / State:
Middlefield, Ohio
Truck Type:

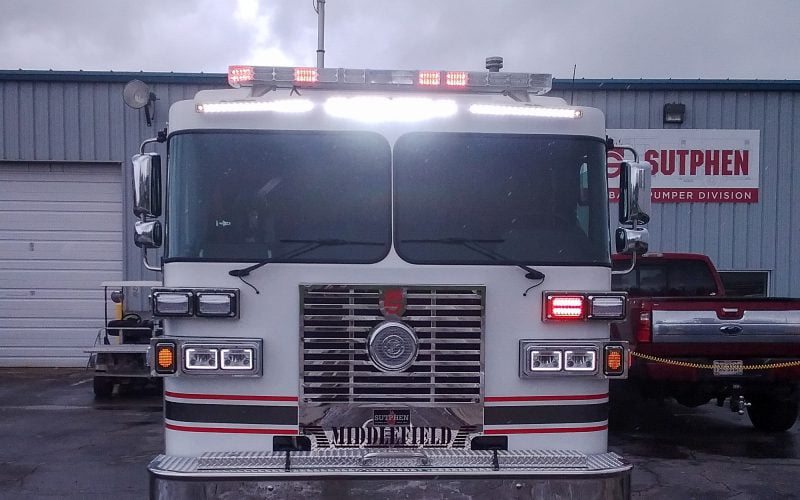

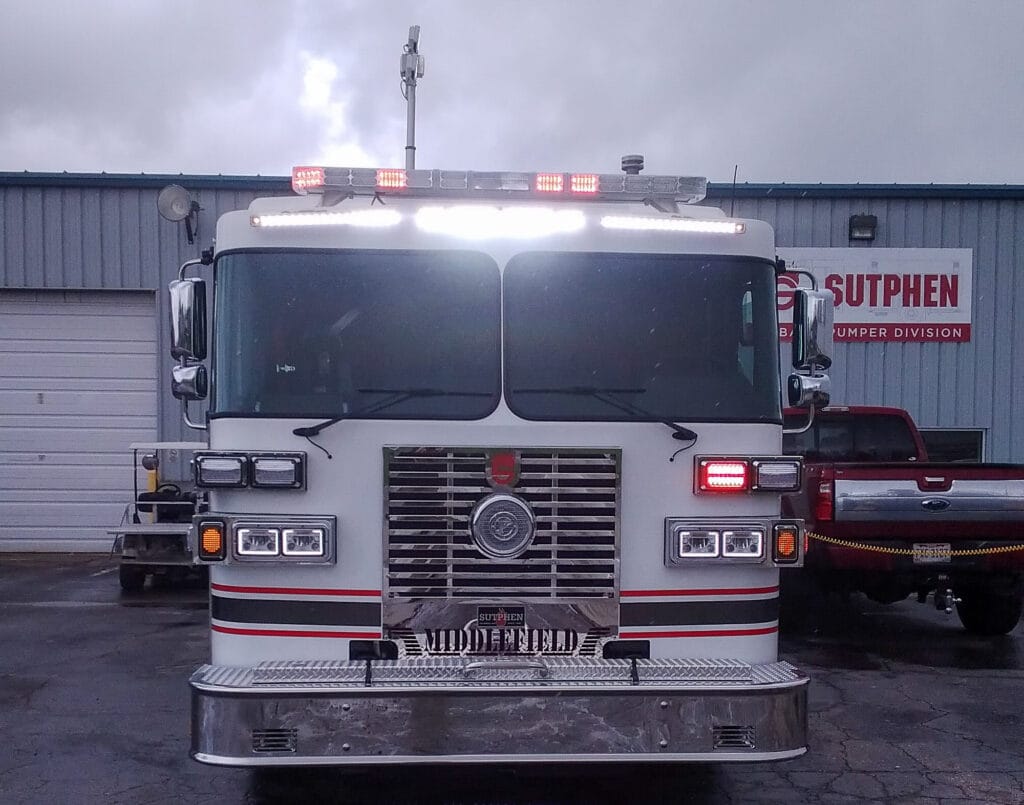

Sutphen Corporation – HS #7035
Dealer – Herb Fire
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Half Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- XS-QMAX 2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 1,000 -Gallon Water Tank
- 30-Gallon Foam Tank

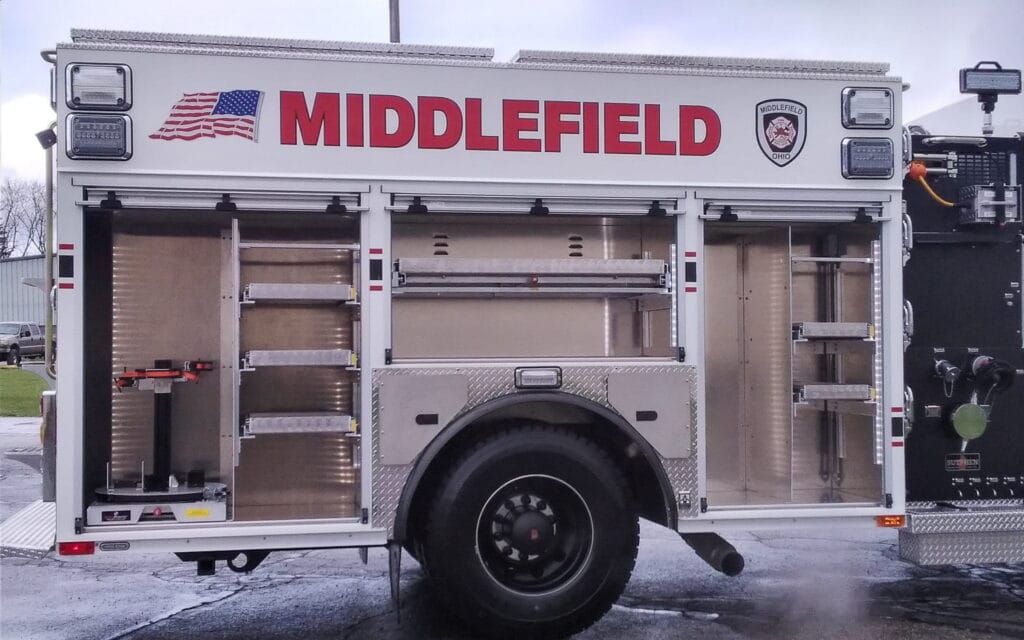

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: G9 – Aluminum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- Intercom System: David Clark, 4 Seats and Pump Panel
- Hannay Electric Cord Reel: 150’ (1)
- Will-Burt LED Light Tower
- Whelen Freedom LED Lightbar
- Whelen 900 Scene Lights
- Hi-Viz 72” Brow Light
