Delivery Date:
08/24/2023
Department Name:

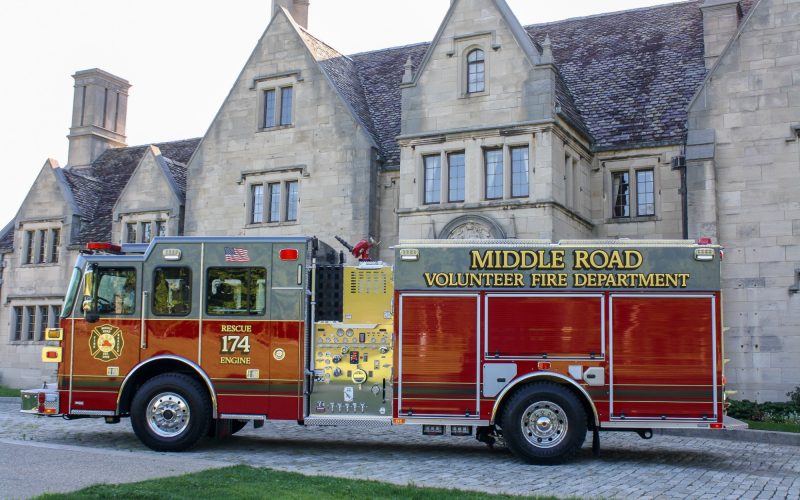

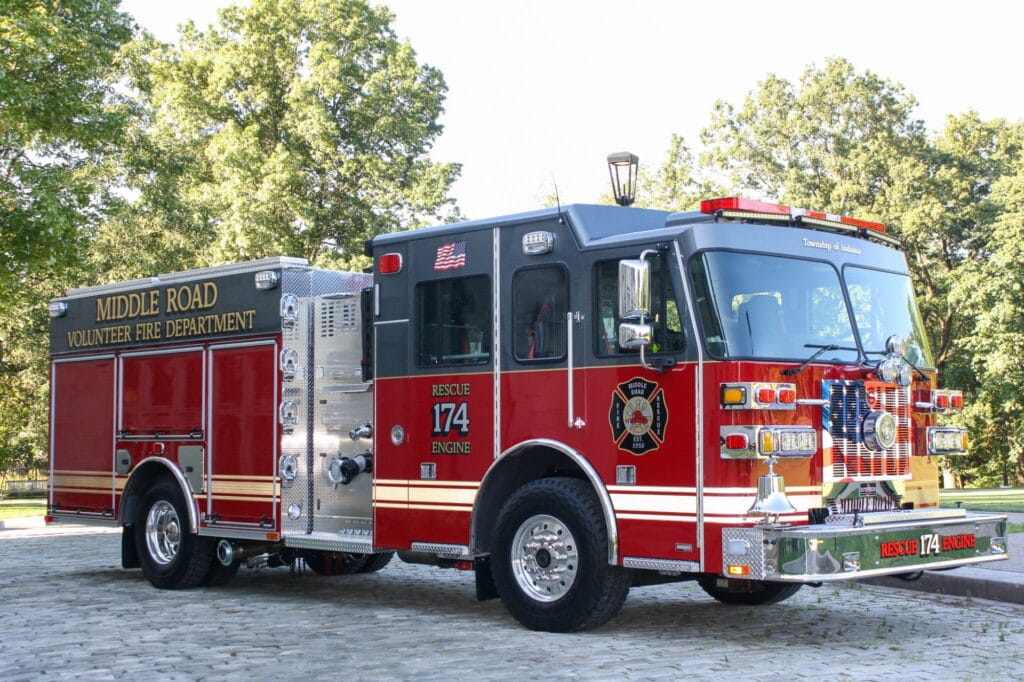

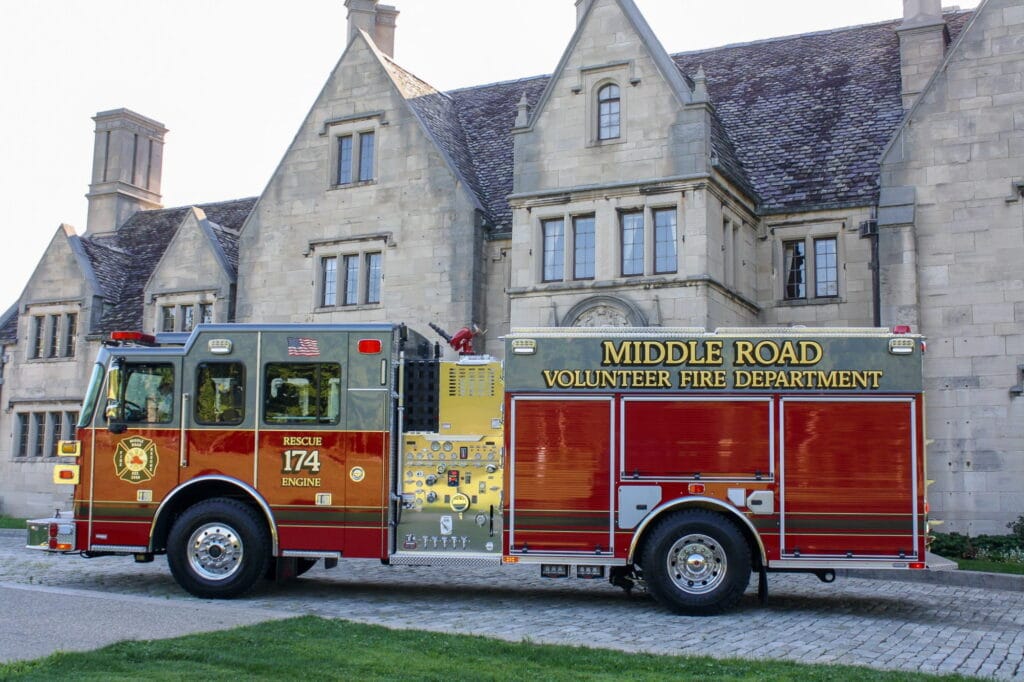

Middle Road Volunteer Fire Department
Department City / State:
Glenshaw, PA

Dealer – FAST of the Allegheny Mountains

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32′ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Waterous

  • CMU-2000 GPM, Two Stage Pump w/ Electric Transfer Valve
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front/Left of Main Hosebed, (1) 3” Deck Gun
  • Crosslay: (2) 1 ½” & (1) 2 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • AMDOR Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 1225A 35’ 3-Section & 775A-14 14’ Roof & 10’ Folding
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Generator: 6KW Smart Power
  • Whelen Freedom LED Lightbar
  • Hi-Viz 72” Brow Light
  • RotoRay Warning Light
  • FRC Spectra Telescopic Lights
  • Whelen LED Traffic Advisor
