Delivery Date:
02/12/2024
Department Name:

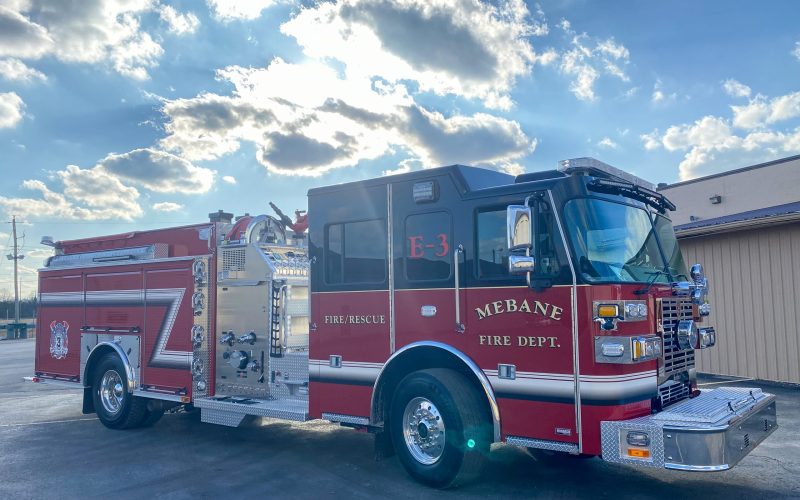

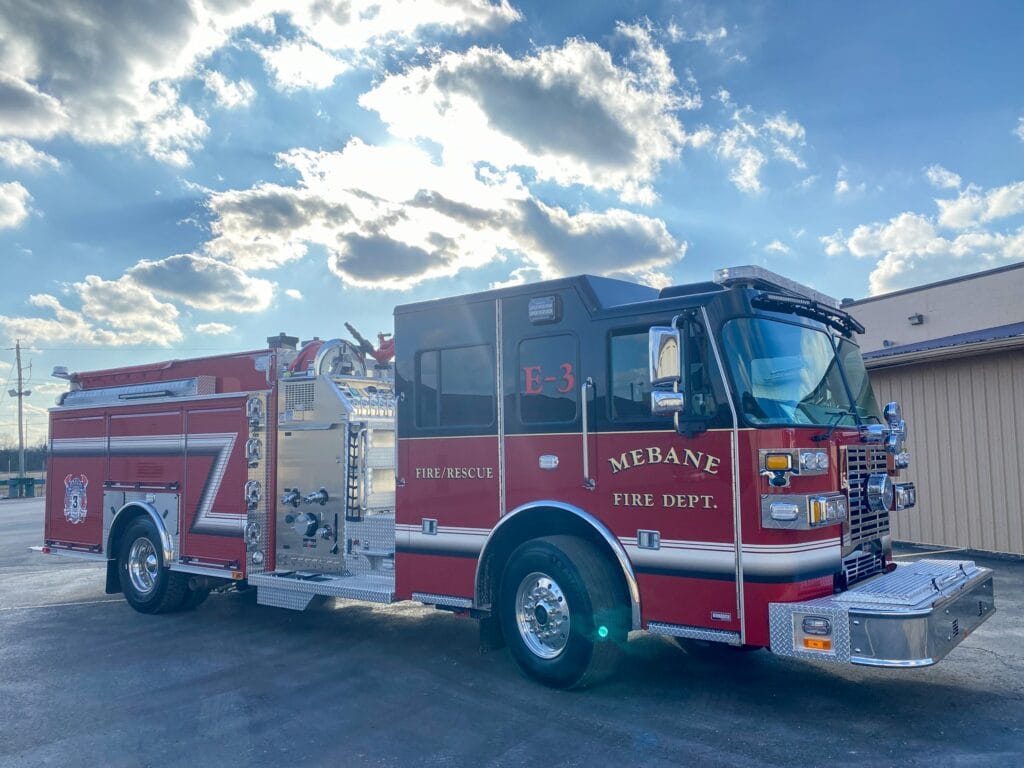

Mebane Fire Department
Department City / State:
Mebane, NC
Dealer – First Choice Fire and Safety
WHEELBASE: 215 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 34′ – 7”

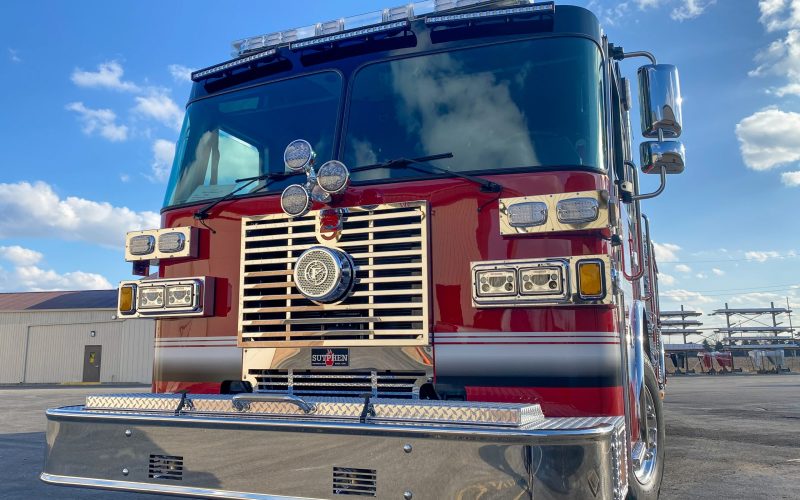

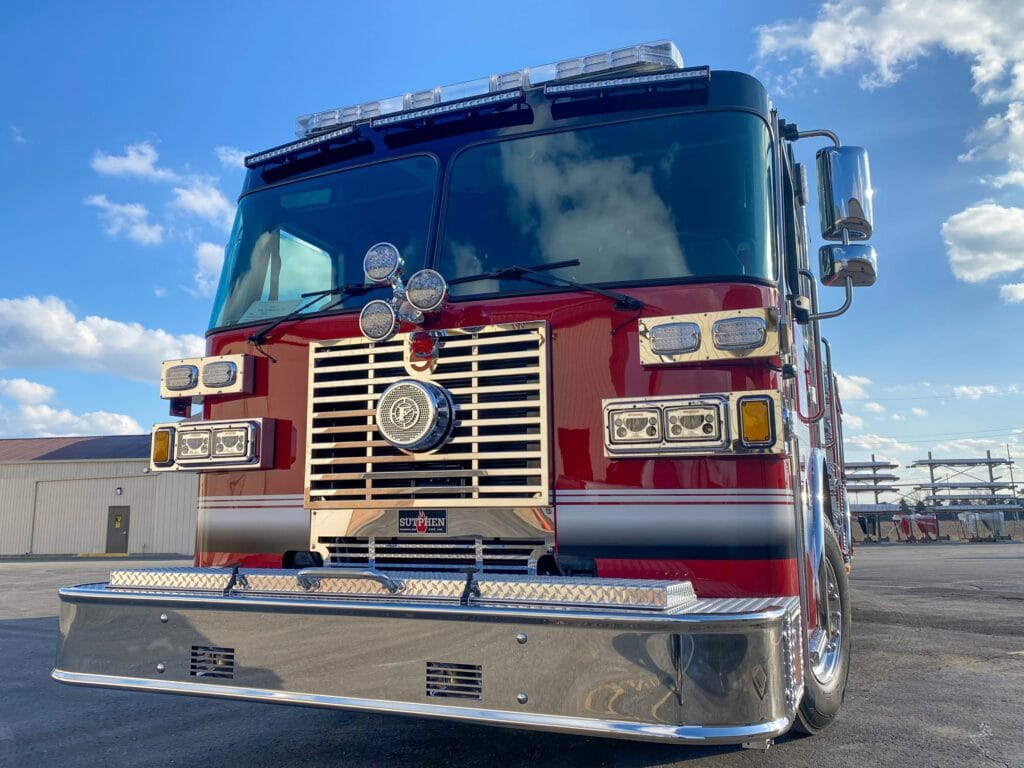

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000

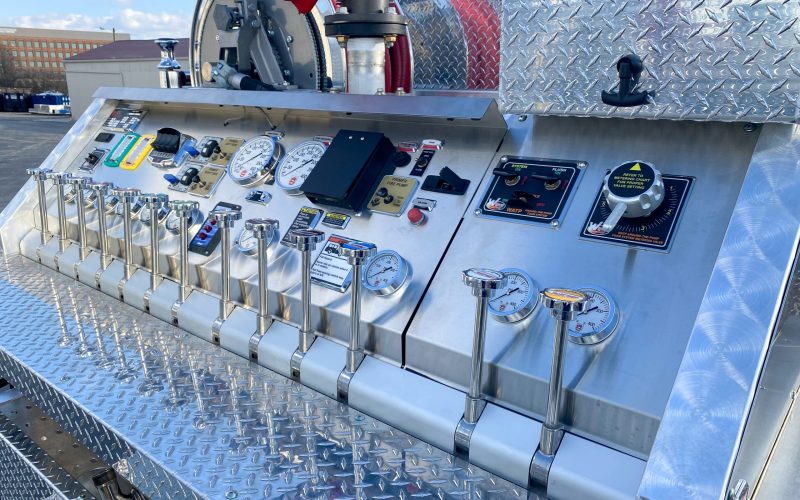

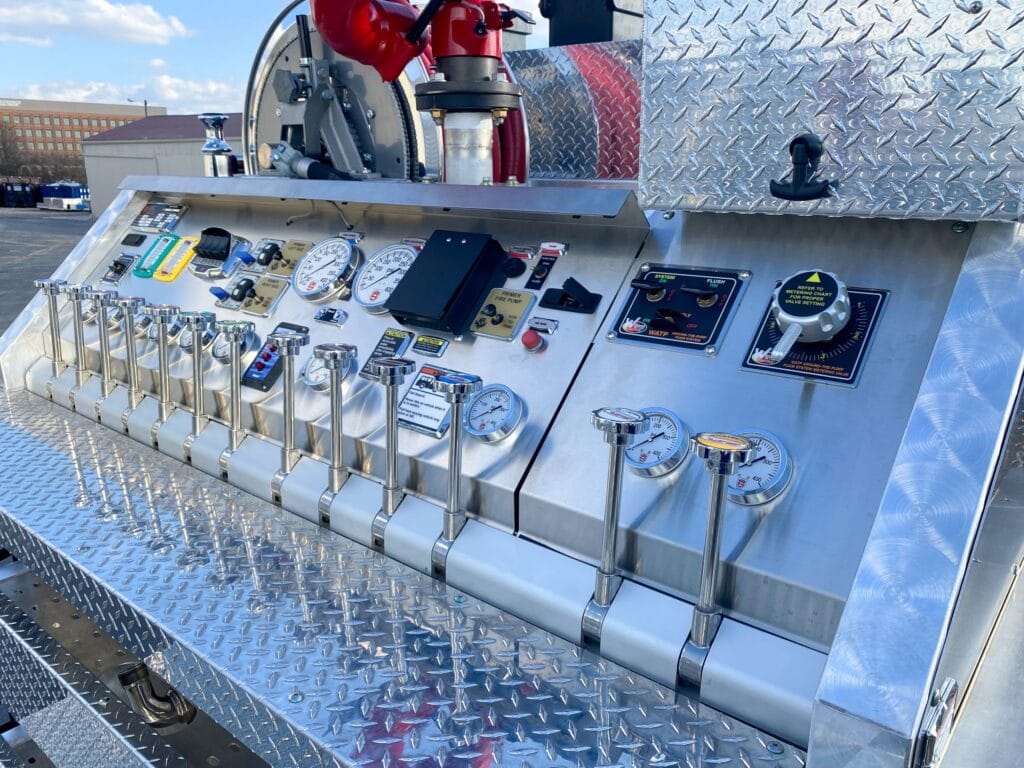

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Williams ATP 500 – Class A & B, Air Selector

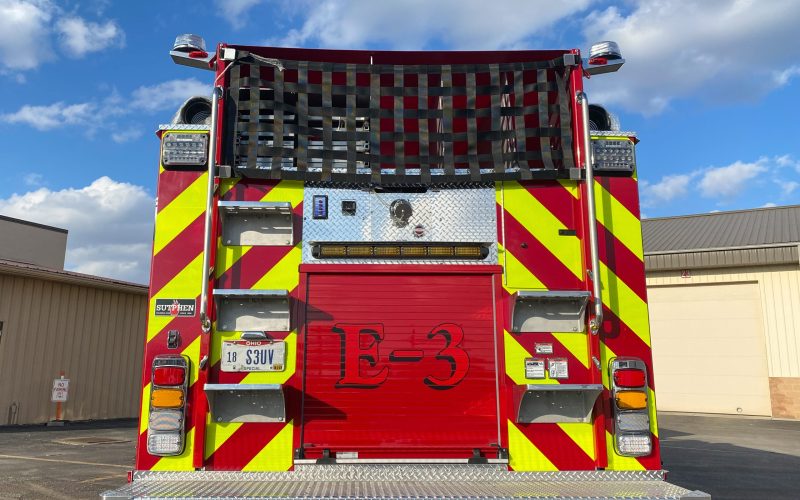

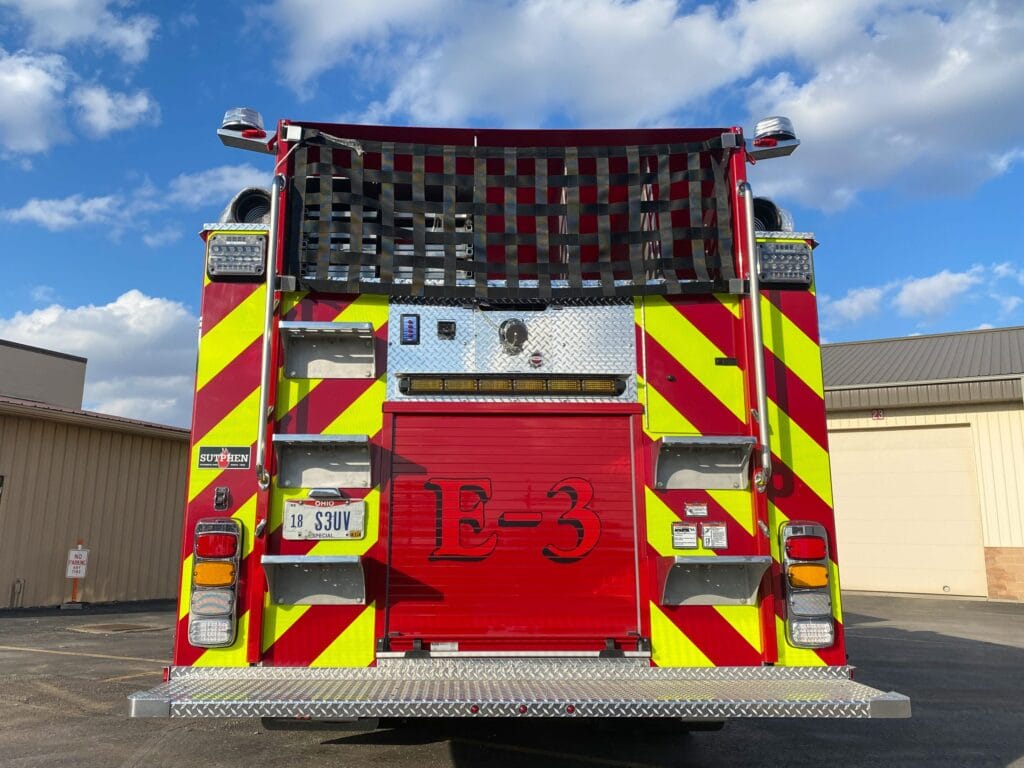

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 230 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Three Camera
- Hannay Electric Cord Reel, 150’ (1)
- Whelen Freedom LED Lightbar
- FireTech 3-Piece 12V Brow Light
- FireTech 12V Scene Lights
