Delivery Date:
08/15/2017
Department Name:
Ridgeway Volunteer Fire Department
Department City / State:
Manchester, NJ

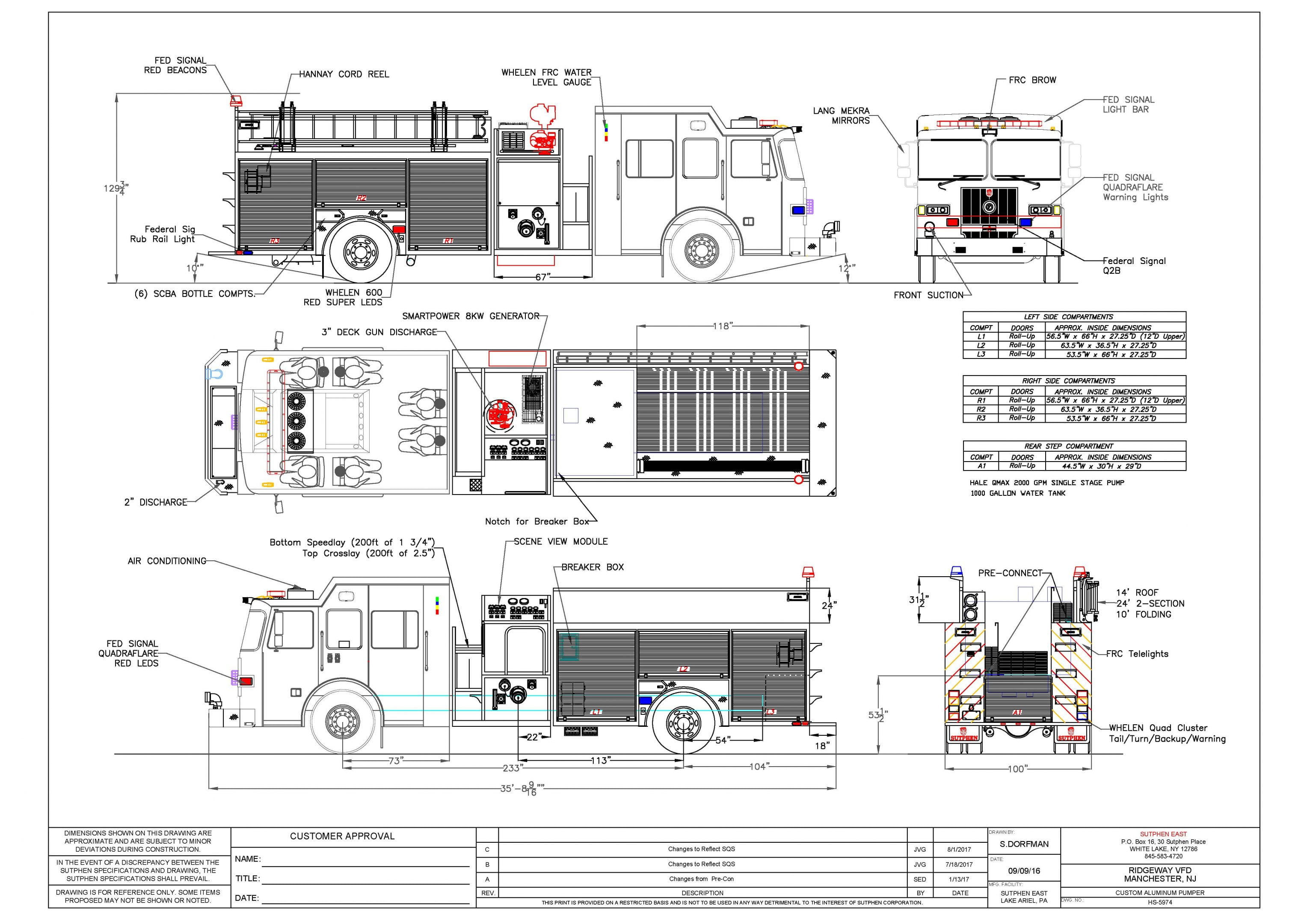

Truck Type:
WHEEL BASE: 233”
TRAVEL HEIGHT: 129 ¾”
TRAVEL LENGTH: 35’-8”
CHASSIS: Sutphen 73” Extended Cab with half 15” raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Leece Neville 270 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM
- Discharges: (1) 4” Left, (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Left, (1) 2 ½” Front Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 1000-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Rom Roll-Up Doors
- Alco-Lite PEL-24
- Need compt. Space
OPTIONAL EQUIPMENT:
- 8KW Smart Power Generator
- Scene Lights, Whelen
- Camera System, Safety Vision SV-CLCD0-70
- Hannay Electric Cord Reel, 200’ (2)
- Ziamatic Quic-Lift Electric Ladder Rack
- Federal Q2B
- 24” Bumper
- Monitor: Elkhart 8393 Stingray
