Delivery Date:
11/08/2023
Department Name:

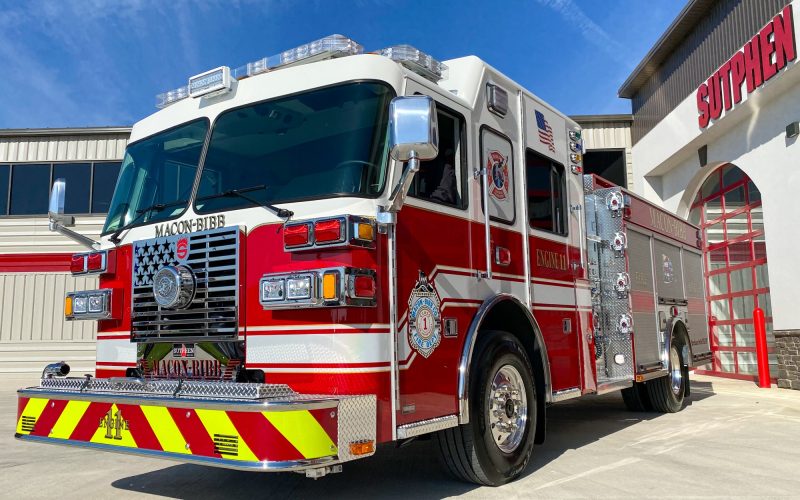

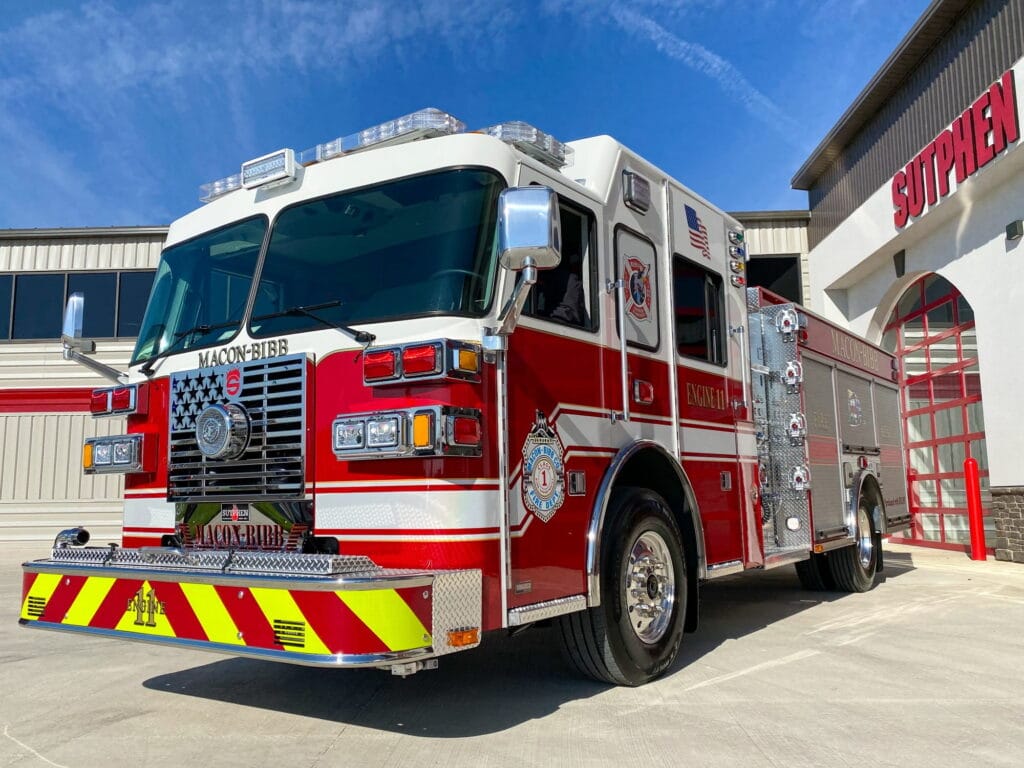

Macon-Bibb County Fire Department
Department City / State:
Macon-Bibb County, GA
Truck Type:
Dealer – Williams Fire Apparatus
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32′ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- S101 1500 GPM, Single Stage Pump
- Discharge: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 500-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Sec & 775A 14’ Roof & 10’ Folding
- Body: G2 – Alum 40/51 Ladders Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: Setcom
- Generator: 5000 Watt Portable Honda
- FRC Spectra Brow Light
- Whelen Freedom LED Lightbar
- FRC Spectra Telescopic Lights
- Whelen 600 Scene Light
