Delivery Date:
10/22/2020
Department Name:
Lower Alloways Creek Fire Department
Department City / State:
Hancocks Bridge, NJ

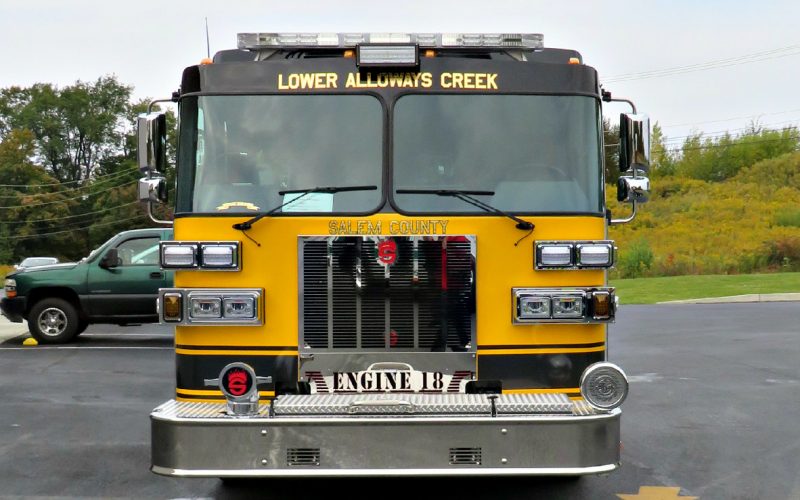

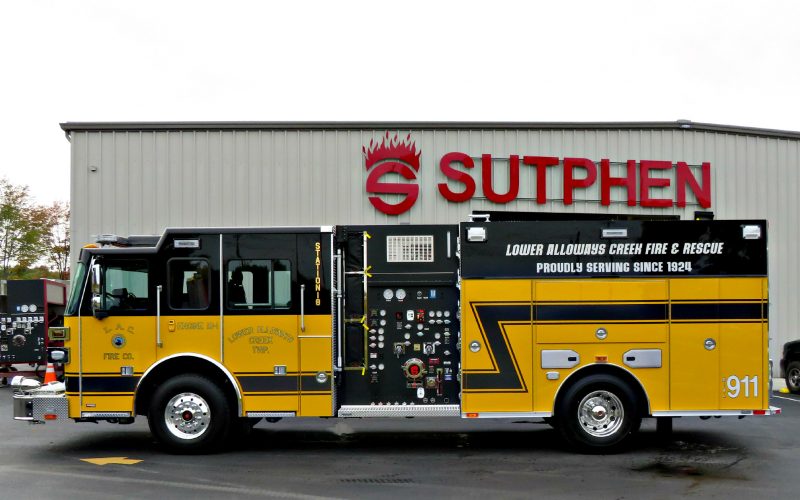

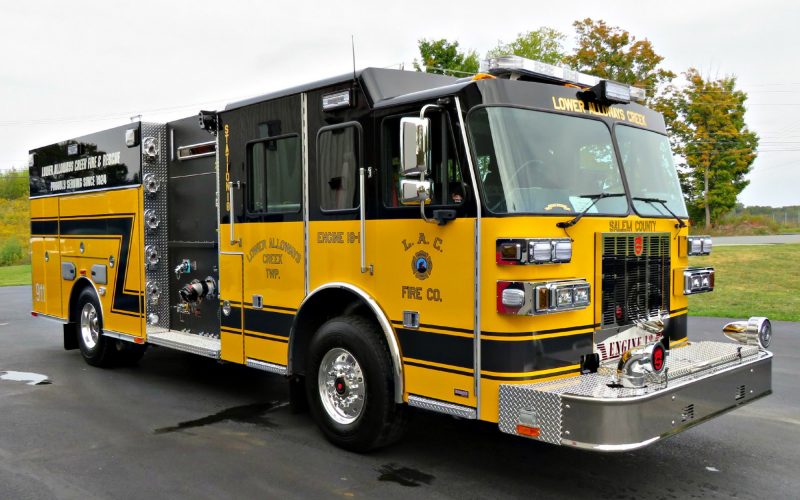

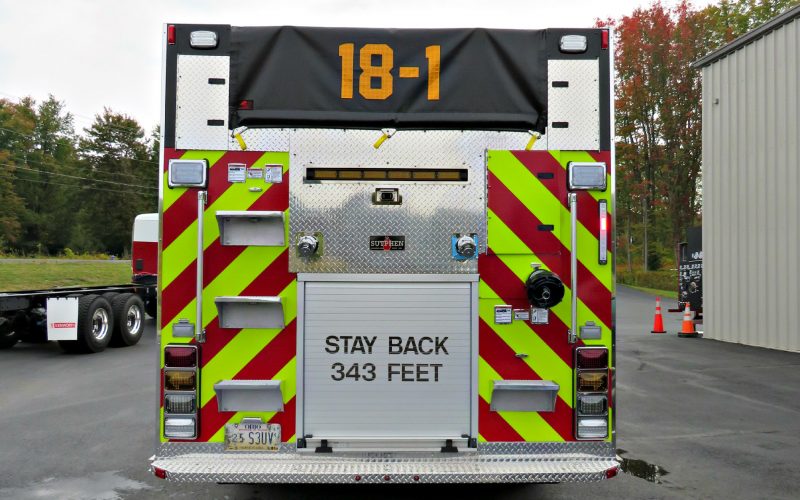

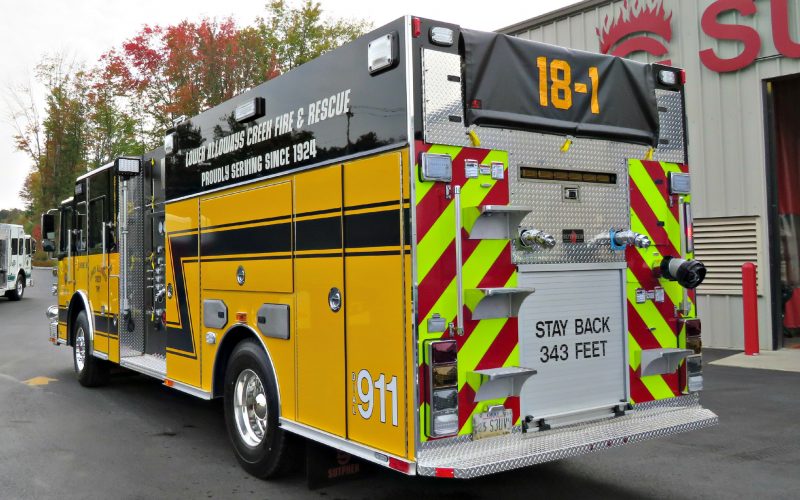

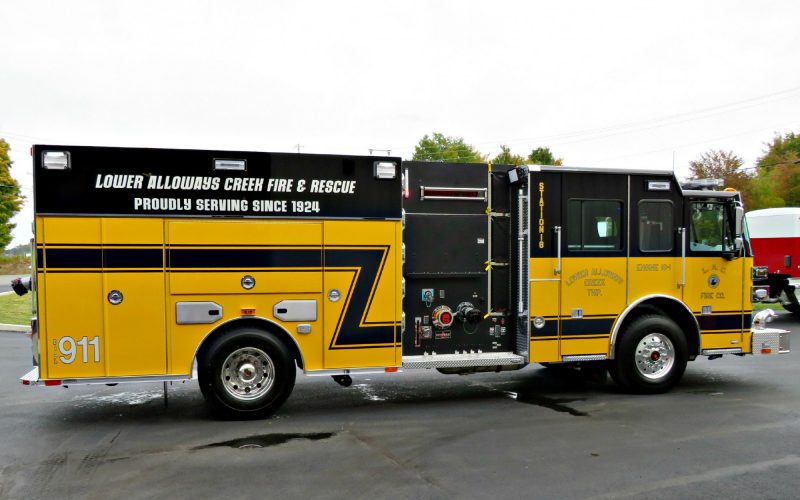

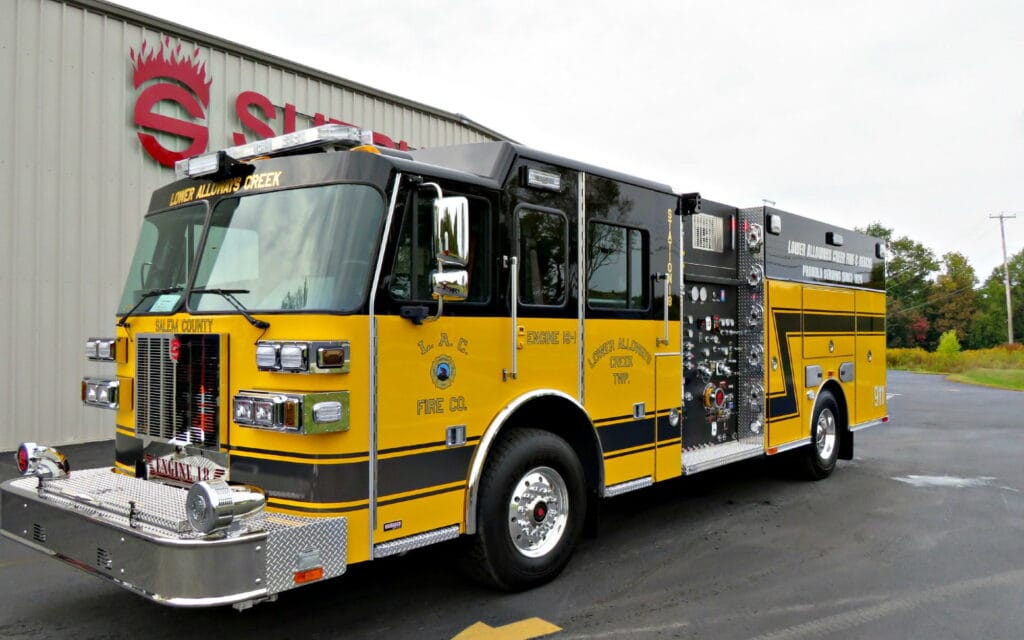

Truck Type:
Sutphen Corporation – HS #6641
Dealer – Blaze Emergency Equipment
WHEELBASE: 207”
TRAVEL HEIGHT: 10’ – 2”
TRAVEL LENGTH: 32’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Eight-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Waterous
- CMU-2000 GPM, Two Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Left Rear, (1) 2 ½” Pipe Right Rear, (1) 4” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (3) 1 ½” w/ Liftout Trays
- 1,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute
- Body: PA-12 Res 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Pedestal Mount
- Hannay Electric Cord Reel, 150’ (1)
- Generator: 6KW Smart Power HYD
- Camera System: Safety Vision SV-CLCD0-70
- Whelen Freedom 72” LED Lightbar
- Whelen 36” Traffic Advisor
- FR Spectra Brow Light
- FR Spectra Scene Lights
